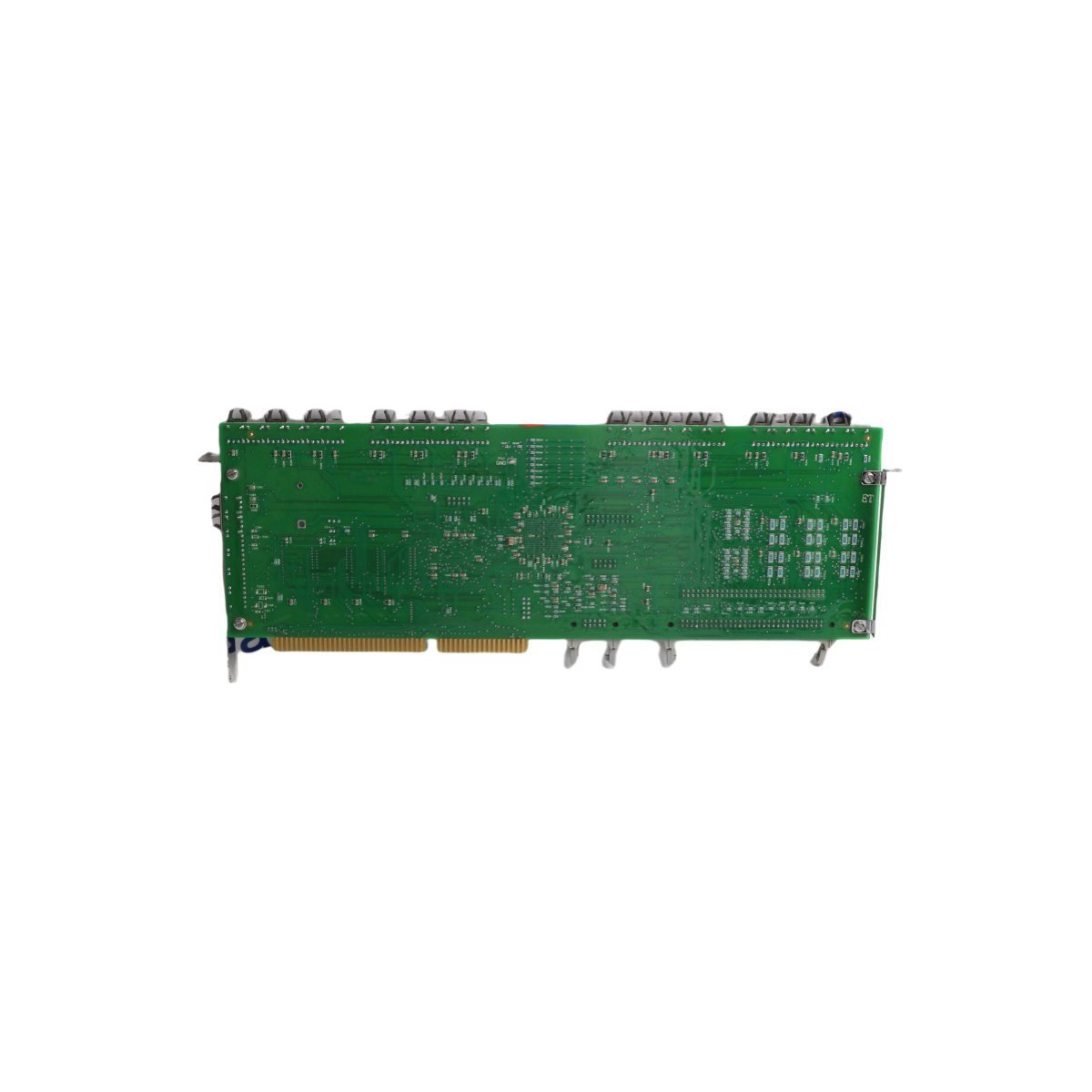

Siemens Robicon A1A10000350.00M High Voltage Inverter Modulator Board

The Siemens Robicon A1A10000350.00M is a high-performance modulator board designed for medium-voltage inverter drives. It supports power outputs up to 350kW and ensures precise voltage regulation for industrial motor control applications across 50/60Hz networks.

Request a Quote

Product Description

The Siemens Robicon A1A10000350.00M acts as a fundamental control element within sophisticated medium-voltage drive systems. This German-engineered modulator board manages complex pulse-width modulation tasks to ensure stable and efficient power conversion across demanding industrial environments. By regulating input voltages ranging from 380V to 690V, the module facilitates precise adjustable output control, which directly enhances motor performance and torque management.

Engineers utilize this board to support power ratings up to 350kW, making it a versatile solution for heavy-duty machinery. Because the hardware operates seamlessly at both 50Hz and 60Hz frequencies, it maintains global compatibility for international infrastructure projects. Furthermore, the advanced modulation technology embedded in the circuit board minimizes harmonic interference, thereby protecting downstream components and reducing overall energy consumption.

The physical design of the A1A10000350.00M prioritizes durability and ease of maintenance. Although it maintains a compact 30.5 x 11.9 x 7 cm footprint, the rugged PCB construction withstands the thermal stresses typical of industrial power electronics. This reliability proves essential in applications such as pump control, fan regulation, and large-scale manufacturing processes where consistent uptime is mandatory. Consequently, this modulator board represents a critical replacement part for maintaining the operational integrity of Siemens Robicon drive systems.

Technical Specifications

  • Brand: Siemens Robicon
  • Model: A1A10000350.00M
  • Primary Function: Inverter Modulation and Signal Control
  • Supported Input Voltage: 380V – 690V AC
  • Variable Output Range: 0V – 690V AC
  • Maximum Power Capacity: 350 kW
  • Frequency Range: 50 / 60 Hz
  • Origin: Germany
  • Dimensions: 30.5 x 11.9 x 7 cm
  • Net Weight: 0.5 kg
