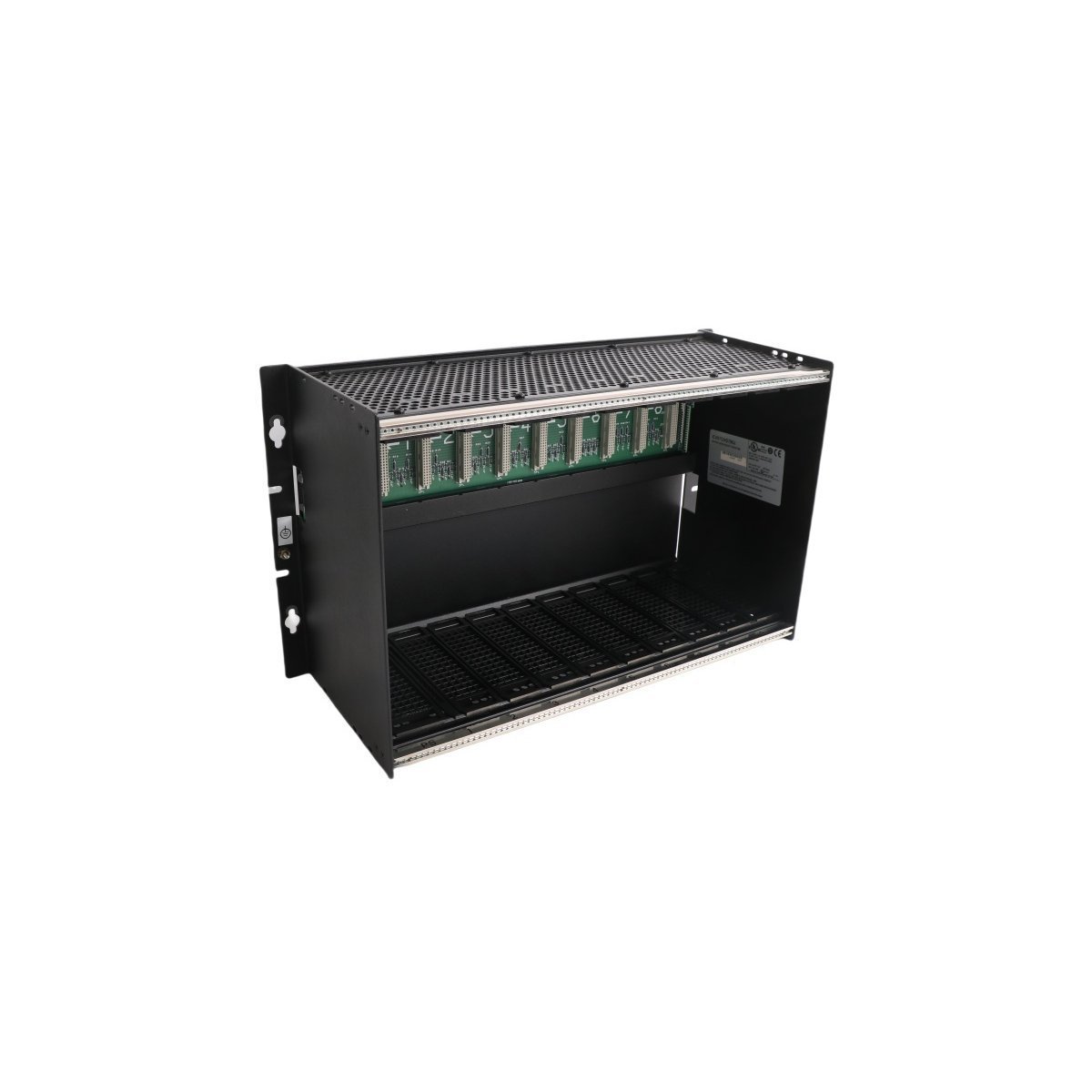

GE Fanuc IC697CHS790 Series 90-70 9-Slot Rear-Mount Chassis

The GE Fanuc IC697CHS790 is a professional 9-slot rear-mounted chassis engineered for the Series 90-70 PLC system. It features a 20A VME-compliant backplane that facilitates seamless module communication and power distribution, while supporting optional fan assemblies for enhanced thermal regulation in industrial environments.

Request a Quote

Product Overview

The GE Fanuc IC697CHS790 functions as a high-capacity backplane and the fundamental mounting framework for the Series 90-70 Programmable Logic Controller (PLC) ecosystem. This chassis establishes a robust electrical interface, which enables various IC697 modules to communicate with the central processing unit while drawing essential system power. Since the design utilizes a VME-compliant backplane, it consistently ensures high-speed data transfer and maintains reliable signal integrity across all nine available slots.

Operational Features and Configuration

Engineers frequently select the IC697CHS790 when a project requires a precise balance between expansion capability and spatial efficiency. While the rack includes a dedicated section for the power supply module, the remaining slots house I/O modules, processors, or communication interfaces. In addition to housing these components, the backplane incorporates four specific jumpers. These jumpers allow the user to define a unique rack ID within a larger PLC network, thereby simplifying system addressing.

Furthermore, this chassis supports power supply extension configurations to enhance versatility. By utilizing the IC697CBL700 cable kit, a single power source can effectively energize two separate racks. Consequently, this configuration reduces hardware costs and significantly simplifies complex wiring layouts.

Thermal Management and Mechanical Integrity

To maintain optimal performance in high-density installations, the IC697CHS790 offers compatibility with optional forced-air cooling. Users can integrate the IC697ACC721 (120 VAC) or IC697ACC724 (240 VAC) fan assemblies directly onto the frame. As a result, the system effectively mitigates heat accumulation during continuous operation. Additionally, the mechanical architecture includes specialized interlocking mechanisms. These features prevent the accidental insertion or removal of modules while the system remains under load, which protects the hardware from electrical damage. Moreover, the chassis features integrated grounding points to shield sensitive electronics from industrial electromagnetic interference.

Technical Specifications

  • Manufacturer: GE Fanuc (Emerson Automation)
  • Product Line: Series 90-70 PLC
  • Slot Count: 9 Slots (includes power supply position)
  • Mounting Type: Rear-panel mount
  • Operating Voltage: 5V DC via backplane
  • Current Capacity: 20 Amps
  • Physical Dimensions: 283mm x 483mm x 190mm
  • Weight:  0.8 kg
  • Standard Compliance: VME Standard architecture
  • Address Configuration: Manual setup via four-position jumpers
Tags: ,

You may also like

Sale!
GE IC697CGR935 One Slot Controller Module

GE IC697CGR935 One Slot Controller Module

Configured for redundant processing tasks in Series 90-70 networks, the GE IC697CGR935 (IC697CGR935 One Slot Controller Module) provides direct physical and electrical execution of logic in hot-standby architectures. This controller operates with a 96 MHz 80486DX4 microprocessor to manage up to 12K discrete I/O points and 8K analog I/O points. Synchronization between primary and secondary units is maintained through backplane communication, facilitating seamless failover transitions.

Hardware Specifications

ParameterSpecification
ModelIC697CGR935
BrandGE
OriginUSA
Weight0.75 kg
Dimensions4.0 cm x 21.8 cm x 29.1 cm
Operating Temp0 deg C to 60 deg C
Power Consumption3.1 A
Processor96 MHz 80486DX4
Memory1 MB
Execution Speed0.4 microseconds (Boolean)

Industrial Control System Performance

The IC697CGR935 relies on high-velocity backplane bus communication to ensure deterministic synchronization between redundant modules. Furthermore, firmware flash compatibility allows for controlled version updates within the Series 90-70 environment, thereby maintaining consistency across logic execution cycles. In addition, I/O density scaling is supported through the backplane interface, which enables the controller to process large datasets without exceeding defined timing constraints. Finally, Profinet and EtherNet/IP deterministic network integration requirements are managed via specific communication coprocessors when utilized in integrated automation architectures.

Frequently Asked Questions

Q: What is the failover behavior if the primary controller experiences a fault?A: In a redundant pair, the secondary controller monitors the heartbeat of the primary. Upon detection of a primary fault, the secondary transitions to the active state instantaneously to prevent interruption of the process control loop.Q: Are there specific thermal requirements for operation at ambient temperatures above 50 deg C?A: Yes. Forced air cooling is required when the operating environment exceeds 50 deg C to ensure the heat dissipation of the 80486DX4 microprocessor and internal circuitry remains within specified safe limits.

Field Installation Guidelines

  • Ensure the rack slot is free of debris before inserting the module to guarantee proper contact with the backplane connector.
  • The module must be seated flush against the rack frame and secured using the provided mounting hardware to ensure electromagnetic compatibility and grounding.
  • Shielded serial cables connected to the RS232 or RS485 interfaces should be grounded at the controller end to mitigate noise interference in high-EMI environments.
  • Upon initial power-up, verify that the 3-position switch is set to the correct mode (Run/Stop) and that status LEDs indicate valid processor health before establishing field I/O connectivity.
Sale!
GE IC693CBL305 Wye Connection Cable

GE IC693CBL305 Wye Connection Cable

The GE IC693CBL305, also cataloged as the IC693CBL305 Wye connection cable, operates as a dedicated hardware component for serial port signal splitting within Series 90-30 PLC networks. The cable provides direct physical execution of port separation, routing dual channel data paths from a high-density host connector into two distinct 25-pin interfaces. By isolating Port 1 and Port 2 signals at the physical layer, the component facilitates structured cable management and electrical signal routing for communication coprocessor modules.

Hardware Specifications

ParameterSpecification
ModelIC693CBL305
BrandGE
OriginUSA
Weight0.14 kg
Dimensions45.0 cm x 6.2 cm x 1.6 cm
Operating TempStandard Industrial Range
Power ConsumptionPassive (No active components)
Cable Length30.5 cm (1 foot)
Interface TypeRS-232 / RS-485

PLC and Control Network Integration

Backplane bus communication velocity and deterministic synchronization for the Series 90-30 system are facilitated through the effective routing of serial data. Firmware flash compatibility within the host modules is supported, ensuring that the physical signal path provided by the IC693CBL305 maintains high integrity across logic execution cycles. Furthermore, I/O density scaling and port configuration are optimized via this hardware split, enabling the PLC to process communication packets without signal cross-talk. When utilized in complex automation architectures, the cable acts as a protocol bridge, ensuring that RS-232 and RS-485 signals are routed to their appropriate logical destinations on the coprocessor.

Frequently Asked Questions

Q: Does the IC693CBL305 cable support active signal buffering or protocol conversion?A: No. The IC693CBL305 is a passive wiring accessory designed specifically for physical port splitting. It does not contain active electronic components for signal amplification or protocol translation.Q: Can the cable be used to connect different electrical standards on Port 1 and Port 2 simultaneously?A: The cable is configured to route signals from the combined host connector to the designated 25-pin outputs. While Port 1 supports RS-232 and Port 2 supports RS-232 or RS-485, the limitation is defined by the host coprocessor module's internal configuration, not the cable itself.

Field Installation Guidelines

  • Inspect the connectors for bent pins before insertion into the CMM or PCM module ports.
  • The right-angle connector must be fully seated into the host module port to ensure consistent electrical contact.
  • Ensure the dual 25-pin connectors are properly identified and labeled as Port 1 and Port 2 during installation to avoid configuration errors.
  • Secure the cable using standard cable ties to prevent mechanical strain on the host module ports, as excessive tension can lead to intermittent signal loss in industrial environments.
Sale!
GE IC200TBM002 VersaMax I/O Terminal Block

GE IC200TBM002 VersaMax I/O Terminal Block

The GE IC200TBM002, also cataloged as the IC200TBM002 I/O terminal block, operates as a dedicated hardware component for signal distribution and wiring termination within VersaMax PLC systems. Configured for high-density I/O routing, the block provides direct physical execution of signal bussing through 18 integrated IEC-compliant box-style terminals. This module facilitates electrical interfacing for input/output carriers and interposing terminals, ensuring standardized connectivity for industrial field wiring.

Hardware Specifications

ParameterSpecification
ModelIC200TBM002
BrandGE
OriginUSA
Weight0.06 kg
Dimensions11.0 cm x 3.5 cm x 3.0 cm
Operating TempStandard Industrial Range
Power ConsumptionPassive (No active components)
Voltage Rating264 VAC (Up to 300 VAC tolerance)
Current Rating8 A

PLC and Control Network Integration

The VersaMax series utilizes modular backplane bus communication velocity and deterministic synchronization to manage distributed I/O blocks. Moreover, firmware flash compatibility within the host CPU allows for systematic updates across the network, thereby ensuring that hardware configurations remain consistent with logic execution cycles. In addition, I/O density scaling is supported through the flexible mounting interface, which enables the system to expand without exceeding the timing constraints of the host bus. Finally, Profinet and EtherNet/IP deterministic network integration requirements are managed upstream via communication modules, while the IC200TBM002 serves as the physical termination point for local field signals.

Frequently Asked Questions

Q: Does the IC200TBM002 provide electrical isolation between terminals?A: The IC200TBM002 features 18 internally-bussed terminals. It is electrically isolated from the I/O carrier interface; however, within the block itself, the terminals are bussed together to provide a common electrical potential.Q: What is the maximum wire gauge supported by the terminal block?A: The terminal block accommodates solid or stranded wires ranging from AWG #22 to AWG #14. It also supports the connection of two wires per terminal, provided the combined gauge does not exceed AWG #18.

Field Installation Guidelines

  • The module should be installed using the integrated mounting tabs on the top edge or secured via panel-mounting holes to ensure mechanical stability in high-vibration environments.
  • Ensure all field wiring is stripped to the appropriate length according to IEC standards before insertion into the box-style terminals to prevent short circuits.
  • When utilizing the terminal block for power distribution, ensure that the cumulative current across the 18-point bus does not exceed the 8 Amp rating.
  • Verify proper seating within the insert-slots of the I/O carrier to ensure the mechanical and electrical integrity of the VersaMax I/O assembly.
Sale!
Emerson GE Fanuc IC695PNC001 PACSystems RX3i PROFINET Controller

Emerson GE Fanuc IC695PNC001 PACSystems RX3i PROFINET Controller

The GE Fanuc Emerson IC695PNC001 is a PACSystems RX3i PROFINET Controller featuring dual RJ-45 and SFP ports. It manages up to 64 I/O devices with update rates as fast as 1 ms, providing high-speed, scalable network communication for modern industrial automation systems.
Sale!
GE Fanuc Emerson IC697HSC700 Series 90-70 High-Speed Counter Module

GE Fanuc Emerson IC697HSC700 Series 90-70 High-Speed Counter Module

The GE Fanuc Emerson IC697HSC700 is a high-performance 12-input High-Speed Counter module for the Series 90-70 PLC. It supports pulse frequencies up to 800 kHz and features 4 onboard outputs, providing precise motion control and flow measurement for complex industrial applications.
Sale!
General Electric IC200ALG266F Analog Input Module

General Electric IC200ALG266F Analog Input Module

The GE IC200ALG266F is a 15-channel, 15-bit analog current input module for VersaMax I/O. It supports 4-20mA and 0-20mA ranges with 30VDC overvoltage protection. Featuring TUV certification and open-wire detection, this high-density module provides precise diagnostics and fault isolation for critical industrial automation and DCS systems.
Sale!

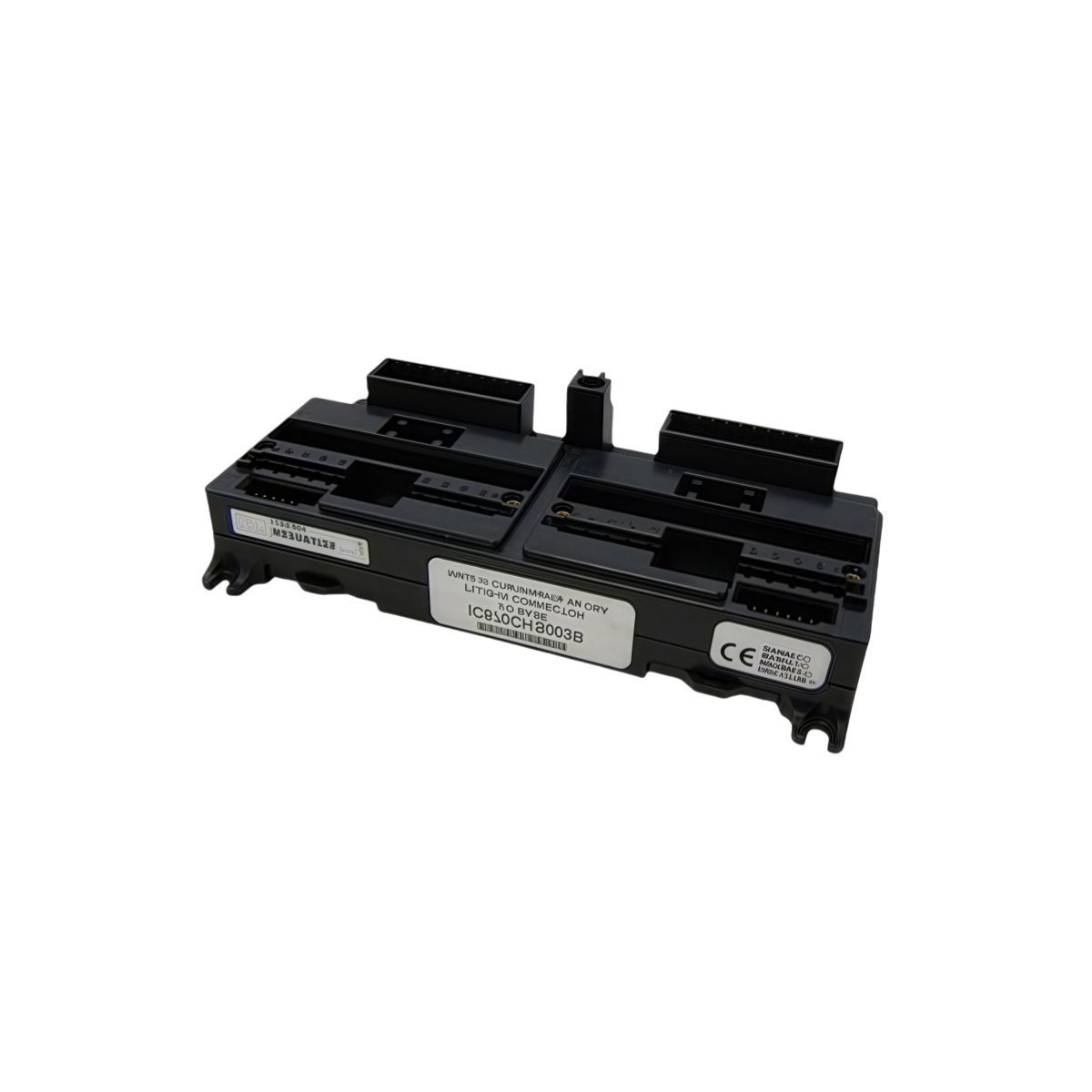

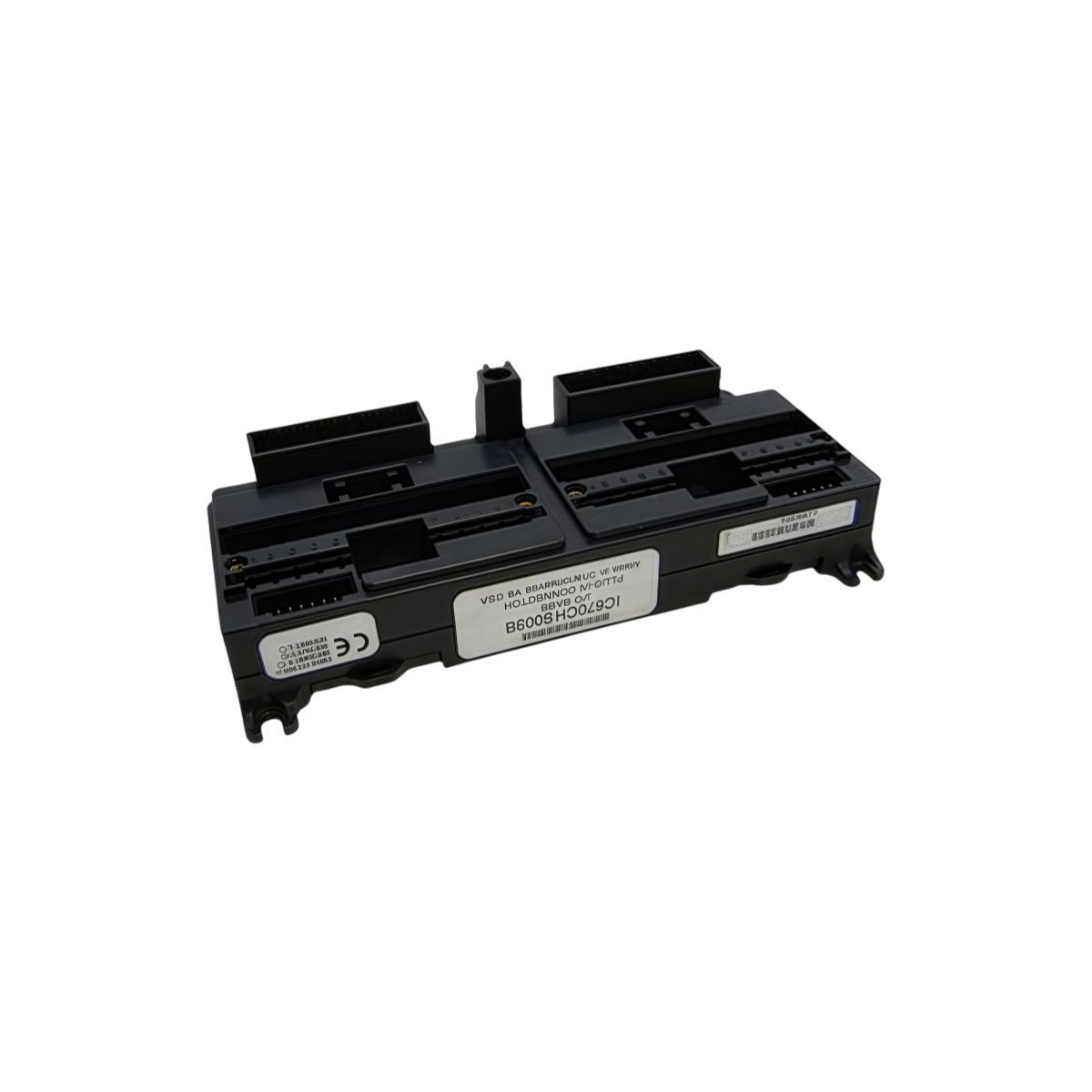

GE Fanuc IC670CHS003 Field Control Terminal Block with Connectors
