Siemens Robicon A1A10000432.34M Cell Control Board for Perfect Harmony Drives
Sale!
SKU: A1A10000432.34M

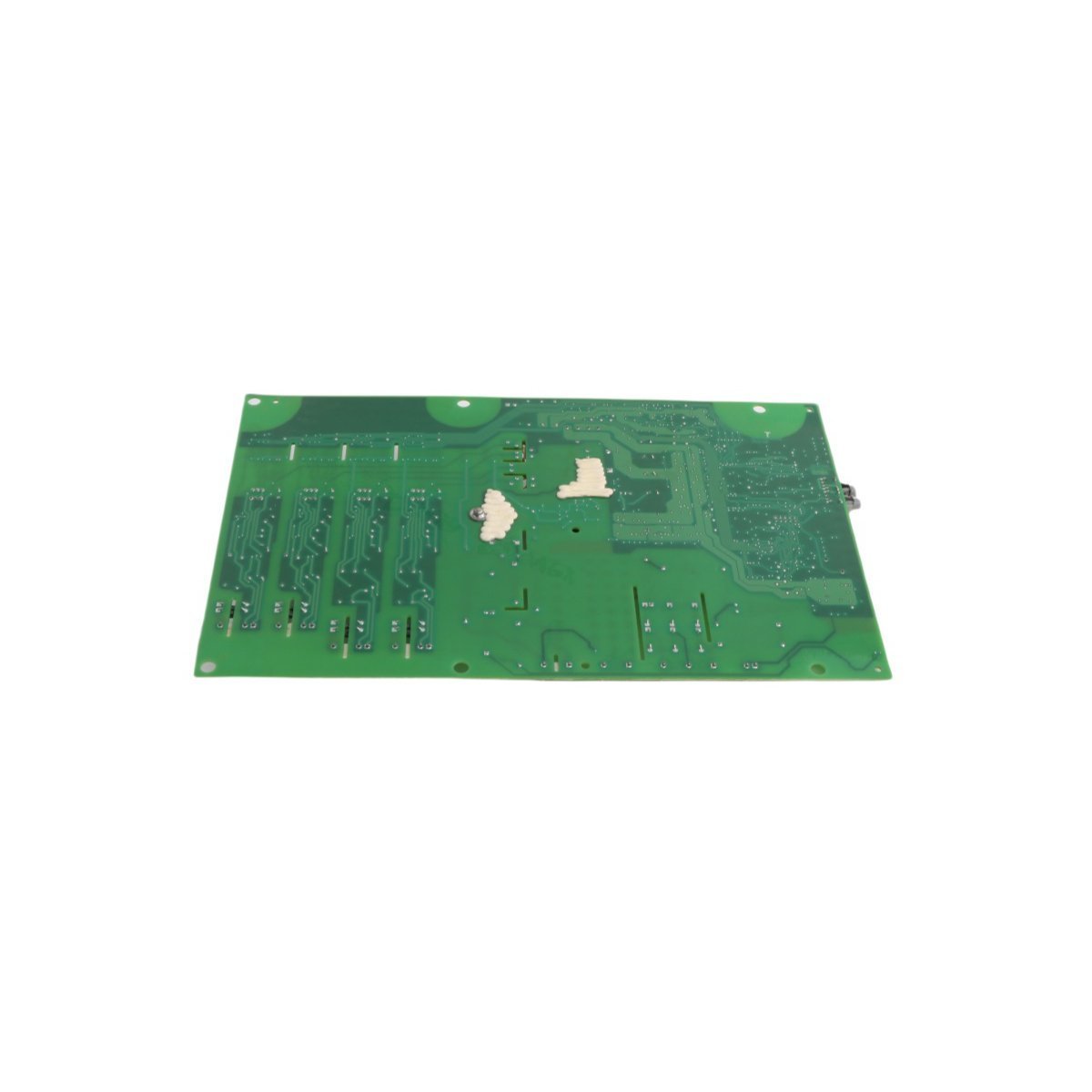

Siemens Robicon A1A10000432.34M Cell Control Board for Perfect Harmony Drives
The Siemens Robicon A1A10000432.34M is a specialized power cell control board for GH180 drives. It manages high-speed PWM signal processing and localized cell monitoring through fiber-optic isolation, ensuring the precise performance and reliability of high-voltage inverter systems.
The Siemens Robicon A1A10000432.34M serves as a dedicated control interface designed specifically for the power cells within the Perfect Harmony high-voltage variable frequency drive (VFD) ecosystem. To achieve this, the board executes high-speed pulse width modulation (PWM) instructions while simultaneously monitoring localized cell health to ensure the entire drive string maintains balanced output. By processing fiber-optic signals from the central controller, the module provides precise gate-firing sequences for the power semiconductors. Furthermore, this decentralized control architecture allows the drive to achieve superior harmonic performance and high-quality sine wave output without the need for additional output filters.
Technical Parameters and Hardware Profile
Manufacturer:Â Siemens Robicon
Part Number:Â A1A10000432.34M
Component Type:Â Power Cell Control Board / Gate Driver Interface
Compatibility:Â Robicon Perfect Harmony GH180 Series
Signal Interface:Â Fiber-optic communication for high-voltage isolation
Operating Voltage:Â Internal DC supply from power cell bus
Physical Weight:Â 0.5 kg
Outer Dimensions:Â 20.5 x 11.9 x 7.0 cm
Country of Origin:Â Germany
Classification:Â HS Code 8537101190 (Industrial Control Logic)
Industrial Durability and Signal Integrity
Regarding its construction, robustness remains a core feature of the A1A10000432.34M hardware design. Siemens engineers utilized high-grade components and protective coatings in order to mitigate the effects of thermal cycling and electromagnetic interference common in high-power environments. In addition, the board maintains signal integrity through dedicated filtering circuits that prevent electrical noise from disrupting the logic processing. Moreover, the unit features diagnostic feedback loops that report real-time status data—such as over-temperature or DC link over-voltage—directly back to the main control system. Consequently, this proactive monitoring approach significantly reduces the risk of catastrophic cell failure and simplifies the troubleshooting process during routine maintenance.
Strategic Application and System Role
In terms of system reliability, the cell control board manages the individual phase-shifting requirements of its specific power cell. As a result, it plays a fundamental role in the drive’s ability to bypass faulty cells and sustain continuous operation. Indeed, this inherent redundancy proves indispensable for critical sectors such as water treatment, oil and gas, and power generation where process interruptions lead to significant losses. Because the A1A10000432.34M features a modular design, technicians can perform rapid on-site replacements. Ultimately, this ensures that the high-voltage system returns to peak capacity with minimal labor and downtime.
The Allen Bradley 1756-IF16, also cataloged as the 1756-IF16 ControlLogix 16 Pt A/I Module, operates as a dedicated hardware component for analog signal acquisition within industrial programmable logic controller architectures.
Hardware Specifications
Parameter
Specification
Model
1756-IF16
Brand
Allen Bradley
Origin
USA
Weight
0.35 kg
Dimensions
23.3 x 18.2 x 5.3 cm
Operating Temp
0 deg C to 60 deg C
Power Consumption
1 W (backplane current draw at 5.1 VDC: 150 mA)
Profinet / EtherNet/IP Deterministic Networks
The module integrates seamlessly into deterministic industrial network topologies through ControlLogix backplane communication, supporting Producer/Consumer technology to broadcast input data across multiple controllers without polling overhead. Network update intervals are configured via Logix Designer, ensuring synchronous multi-channel sampling schedules across distributed chassis architectures.
Frequently Asked Questions
Q: Does the module support removal and insertion under power (RIUP)?A: Yes, the 1756-IF16 supports RIUP when installed in a standard ControlLogix chassis, allowing hardware replacement without powering down the entire rack system.Q: What is the backplane current consumption profile?A: The module draws 150 mA from the 5.1 VDC backplane rail and 20 mA from the 24 VDC backplane rail during standard operation.Q: How is individual channel filtering configured?A: Digital filter frequencies ranging from 1 Hz to 60 Hz can be independently assigned to each of the 16 channels via software configuration to attenuate industrial line noise.
Field Installation Guidelines
Mount the module into any available slot within a standard ControlLogix chassis using the chassis guide rails, ensuring the latching mechanism engages securely. Connect shielded twisted-pair cables to the removable terminal block (RTB) to mitigate electromagnetic interference. Terminate cable shields to the nearest functional earth ground bar using grounding lugs. Verify backplane power status prior to seating the module to prevent electrical transients.
The Emerson PR6426/010-000 CON021, also cataloged as the PR6426/010-000 CON021 Controller Module, operates as a dedicated hardware component for analog process signal conditioning and control loop execution within distributed control platforms.
Hardware Specifications
Parameter
Specification
Model
PR6426/010-000 CON021
Brand
Emerson
Origin
USA
Weight
0.54 kg
Dimensions
22 x 18 x 4.5 cm
Operating Temp
0 deg C to 60 deg C
Power Consumption
24 VDC nominal
Process Loop Integration and Signal Isolation
The module processes analog inputs through dedicated signal conversion channels while maintaining channel-to-channel isolation to prevent electrical interference across loops. The internal circuitry supports 4-20 mA HART loop protocol integration for remote transmitter calibration and real-time diagnostic polling. Cold junction compensation (CJC) maintains thermocouple measurement accuracy across ambient temperature shifts, while FOUNDATION Fieldbus communication layers execute deterministic field device updates without loop degradation.
Frequently Asked Questions
Q: Does the module support live insertion and removal under power?A: System backplane specifications dictate whether hot-swapping is permitted; verify rack-level power status before extracting the module to prevent backplane bus faults.Q: How are field wiring errors isolated from internal processor components?A: Channel-to-channel galvanic isolation circuits prevent transient overvoltages from propagating across adjacent analog input channels or damaging internal logic planes.
Field Installation Guidelines
Mount the unit securely within designated enclosure slots, ensuring that shielded twisted-pair cables terminate at the proper grounding bars to minimize electromagnetic interference. Verify loop supply voltage levels prior to terminal block connection to protect analog input stages against overvoltage conditions.
Configured for high-speed logic execution in ControlLogix automation platforms, the Allen Bradley 1756-L74 (1756-L74 Controller) provides direct physical and electrical execution of complex control algorithms.
Hardware Specifications
Parameter
Specification
Model
1756-L74
Brand
Allen Bradley
Origin
USA
Weight
0.26 kg
Dimensions
3.5 x 14.5 x 14.5 cm
Operating Temp
Industrial Standard
Power Consumption
System Backplane Dependent
Memory Capacity
16 MB
Industrial Control and Network Characteristics
The 1756-L74 utilizes backplane bus communication velocity to manage deterministic data exchange between distributed I/O modules and the controller. Integration into EtherNet/IP deterministic networks enables synchronous command execution across modular chassis configurations. Firmware flash compatibility ensures version alignment with established control software environments, while I/O density scaling supports hardware expansion without compromising cycle time performance.
Frequently Asked Questions
Q: Does the 1756-L74 support hot-swapping within the ControlLogix chassis?A: The controller supports removal and insertion under power (RIUP) if the surrounding environment is within specified parameters and the system is properly configured to handle processor transition states.Q: How is the memory managed during power-loss events?A: The controller utilizes an internal energy storage module to ensure data retention and controlled shutdown sequences when primary backplane power is lost.
Field Installation Guidelines
Ensure the ControlLogix chassis is de-energized before mounting the controller.
Verify that the chassis backplane connector pins are free from debris or mechanical damage.
Align the controller with the guide rails of the designated slot and insert until the connector fully seats into the backplane.
Secure the module using the top and bottom latching mechanisms to ensure electrical contact stability.
Connect the Ethernet communication cable to the front-panel port and ensure the cable is routed to maintain bend radius requirements.
Confirm proper grounding of the chassis to the cabinet earth bus to minimize noise interference during operation.
Configured for signal interfacing and communication management in PLC-based automation systems, the Allen Bradley 80190-440-03-R (80190-440-03-R Interface Board) provides direct physical and electrical execution for motor control coordination.
Hardware Specifications
Parameter
Specification
Model
80190-440-03-R
Brand
Allen Bradley
Origin
USA
Weight
0.46 kg
Dimensions
27.8 x 21.4 x 2.8 cm
Operating Temp
Standard industrial range
Power Consumption
System dependent
Module Type
Interface Board
Control System Integration Characteristics
The Allen Bradley 80190-440-03-R is engineered to facilitate deterministic data exchange within control architectures. It supports robust backplane bus communication, ensuring signal integrity for soft-start and drive-control peripherals. The module's circuitry is optimized for I/O density scaling, allowing for consistent signal propagation across complex, multi-node network topologies. Firmware compatibility ensures this hardware remains responsive to system-level configuration changes, maintaining timing precision required for synchronized motor start-up and protection sequences.
Frequently Asked Questions
Q: What precautions should be taken during the physical installation of this interface board to prevent signal interference?A: Ensure that the board is securely mounted to the chassis to maintain a continuous electrical ground. When terminating control cables, utilize shielded twisted-pair cabling and ensure shields are terminated at a single point to minimize electromagnetic interference (EMI) impact on data signals.Q: Does the 80190-440-03-R require specific backplane initialization procedures?A: Before energizing the backplane, verify that the module is fully seated and that all terminal connections are tight. Upon system power-up, ensure the host processor acknowledges the module presence on the bus to confirm correct address assignment and communication link establishment.
Field Installation Guidelines
Verify that all power sources to the chassis are disconnected before module installation or removal.
Use appropriate ESD protection, including a grounded wrist strap, when handling the board to prevent damage to sensitive CMOS components.
Inspect the connector pins for any signs of oxidation or physical damage prior to inserting the board into the backplane slot.
Ensure adequate ventilation around the chassis to maintain ambient temperatures within the hardware rating.
Once installed, perform a point-to-point signal verification to ensure that the interface board correctly maps control signals between the soft-start controller and the host system.
Configured for redundant processing tasks in Series 90-70 networks, the GE IC697CGR935 (IC697CGR935 One Slot Controller Module) provides direct physical and electrical execution of logic in hot-standby architectures. This controller operates with a 96 MHz 80486DX4 microprocessor to manage up to 12K discrete I/O points and 8K analog I/O points. Synchronization between primary and secondary units is maintained through backplane communication, facilitating seamless failover transitions.
Hardware Specifications
Parameter
Specification
Model
IC697CGR935
Brand
GE
Origin
USA
Weight
0.75 kg
Dimensions
4.0 cm x 21.8 cm x 29.1 cm
Operating Temp
0 deg C to 60 deg C
Power Consumption
3.1 A
Processor
96 MHz 80486DX4
Memory
1 MB
Execution Speed
0.4 microseconds (Boolean)
Industrial Control System Performance
The IC697CGR935 relies on high-velocity backplane bus communication to ensure deterministic synchronization between redundant modules. Furthermore, firmware flash compatibility allows for controlled version updates within the Series 90-70 environment, thereby maintaining consistency across logic execution cycles. In addition, I/O density scaling is supported through the backplane interface, which enables the controller to process large datasets without exceeding defined timing constraints. Finally, Profinet and EtherNet/IP deterministic network integration requirements are managed via specific communication coprocessors when utilized in integrated automation architectures.
Frequently Asked Questions
Q: What is the failover behavior if the primary controller experiences a fault?A: In a redundant pair, the secondary controller monitors the heartbeat of the primary. Upon detection of a primary fault, the secondary transitions to the active state instantaneously to prevent interruption of the process control loop.Q: Are there specific thermal requirements for operation at ambient temperatures above 50 deg C?A: Yes. Forced air cooling is required when the operating environment exceeds 50 deg C to ensure the heat dissipation of the 80486DX4 microprocessor and internal circuitry remains within specified safe limits.
Field Installation Guidelines
Ensure the rack slot is free of debris before inserting the module to guarantee proper contact with the backplane connector.
The module must be seated flush against the rack frame and secured using the provided mounting hardware to ensure electromagnetic compatibility and grounding.
Shielded serial cables connected to the RS232 or RS485 interfaces should be grounded at the controller end to mitigate noise interference in high-EMI environments.
Upon initial power-up, verify that the 3-position switch is set to the correct mode (Run/Stop) and that status LEDs indicate valid processor health before establishing field I/O connectivity.
The Allen-Bradley 81001-355-71-R is a high-performance Silicon Controlled Rectifier module engineered for reliable power regulation and industrial switching tasks.
The Allen-Bradley 150-F135NBDB is a 135A SMC Flex solid-state smart motor controller designed for precise three-phase motor management. It features integrated electronic overload protection, multiple starting modes, and DPI communication for seamless PLC integration in demanding industrial automation environments.
The Allen-Bradley 1756-L60M03SE is a GuardLogix Safety CPU module featuring 750 KB memory and 3-axis SERCOS motion control. This ControlLogix processor supports extensive networking via EtherNet/IP and ControlNet, making it ideal for integrated safety and high-precision motion applications.
The GE IS420UCSDS1 is a 600 MHz UCSB controller module for the Mark VIe system. Designed for high-reliability turbine control, it features an Intel processor, dual/TMR redundancy support, and ATEX Zone 2 certification for demanding industrial environments.
The ICS Triplex T8100C is a high-integrity Trusted Controller Chassis designed for SIL3-rated safety systems. It features a TMR-ready backplane and redundant power distribution to eliminate single points of failure. This 19-inch rack-mountable unit provides the essential foundation for fault-tolerant PLC operations in critical industrial environments.
The Allen-Bradley 1785-L20E is an enhanced PLC-5/20E processor featuring 16K memory and integrated Ethernet communication. It supports up to 512 I/O points, providing a reliable and scalable control solution for 1771-chassis industrial systems.
The Emerson 5X00241G02 is a robust Ovation DCS processor module designed for high-speed industrial automation. It features Modbus RTU support, a wide operating temperature range from -40°C to +85°C, and a compact 24 VDC design, making it an essential component for reliable real-time process control in demanding environments.
