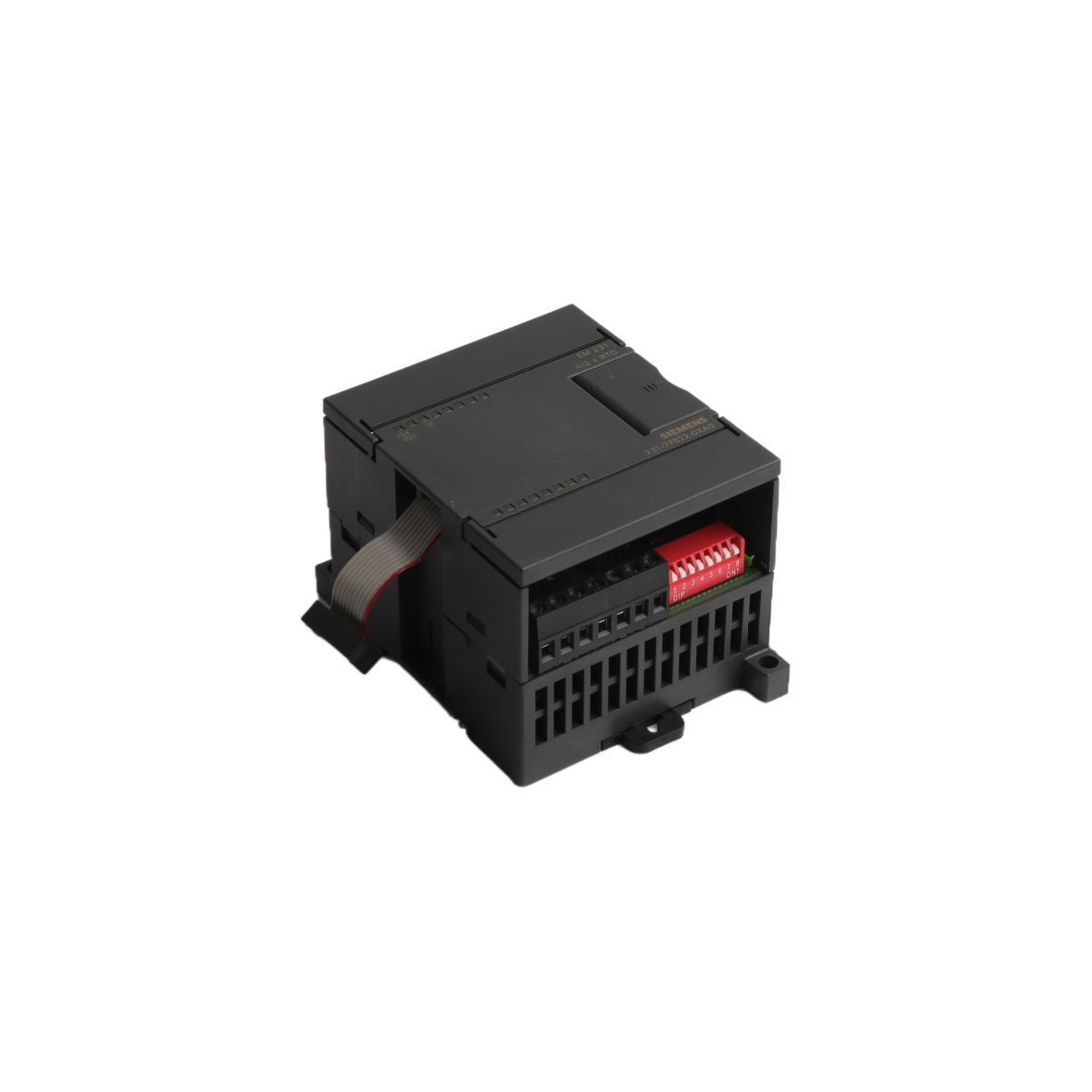

Siemens SIMATIC S7-200 6ES7231-7PB22-0XA0 Analog RTD Input Module

Technical Operational Overview

The Siemens 6ES7231-7PB22-0XA0 functions as a specialized EM 231 expansion module that extends the thermal sensing capabilities of the SIMATIC S7-200 PLC series. By integrating this module, operators gain the ability to process high-resolution resistance signals from industrial temperature detectors directly. The unit specifically converts ohmic resistance changes into precise digital data, which the central processing unit then utilizes for real-time climate monitoring and process adjustments. Furthermore, this module streamlines the interface between field sensors and the controller, effectively eliminating the need for external signal transducers.

Technical Characteristics and Specifications

• Brand Manufacturer: Siemens
• Product Series: SIMATIC S7-200
• Model Designation: 6ES7231-7PB22-0XA0
• Input Channels: 2 Analog Inputs (Specifically for RTD)
• Sensor Compatibility: Pt100, Pt200, Pt500, Pt1000, Ni100, Ni1000, and Cu10
• Resolution: 15 bits plus sign
• Physical Dimensions: 71.2 mm x 80 mm x 62 mm
• Net Weight: 0.21 kg
• Power Consumption: 1.8 W from the backplane bus
• Protection Rating: IP20

Enhanced Performance Features

Engineers prioritize the 6ES7231-7PB22-0XA0 because it incorporates sophisticated noise suppression and signal filtering algorithms. These internal mechanisms ensure that electromagnetic interference from nearby heavy machinery does not compromise data accuracy. Moreover, the module provides comprehensive diagnostic tools that actively monitor for wire breakages or short circuits in the field wiring. Consequently, maintenance teams can identify and rectify sensor faults rapidly, which significantly reduces system downtime in mission-critical environments.

Primary Industry Applications

• HVAC Systems: Regulates environmental temperatures in large-scale commercial buildings.
• Chemical Processing: Monitors exothermic reactions within specialized reactor vessels.
• Food and Beverage: Maintains strict thermal parameters during pasteurization and storage phases.
• Plastic Manufacturing: Oversees the heating zones of extrusion and injection molding machines.
