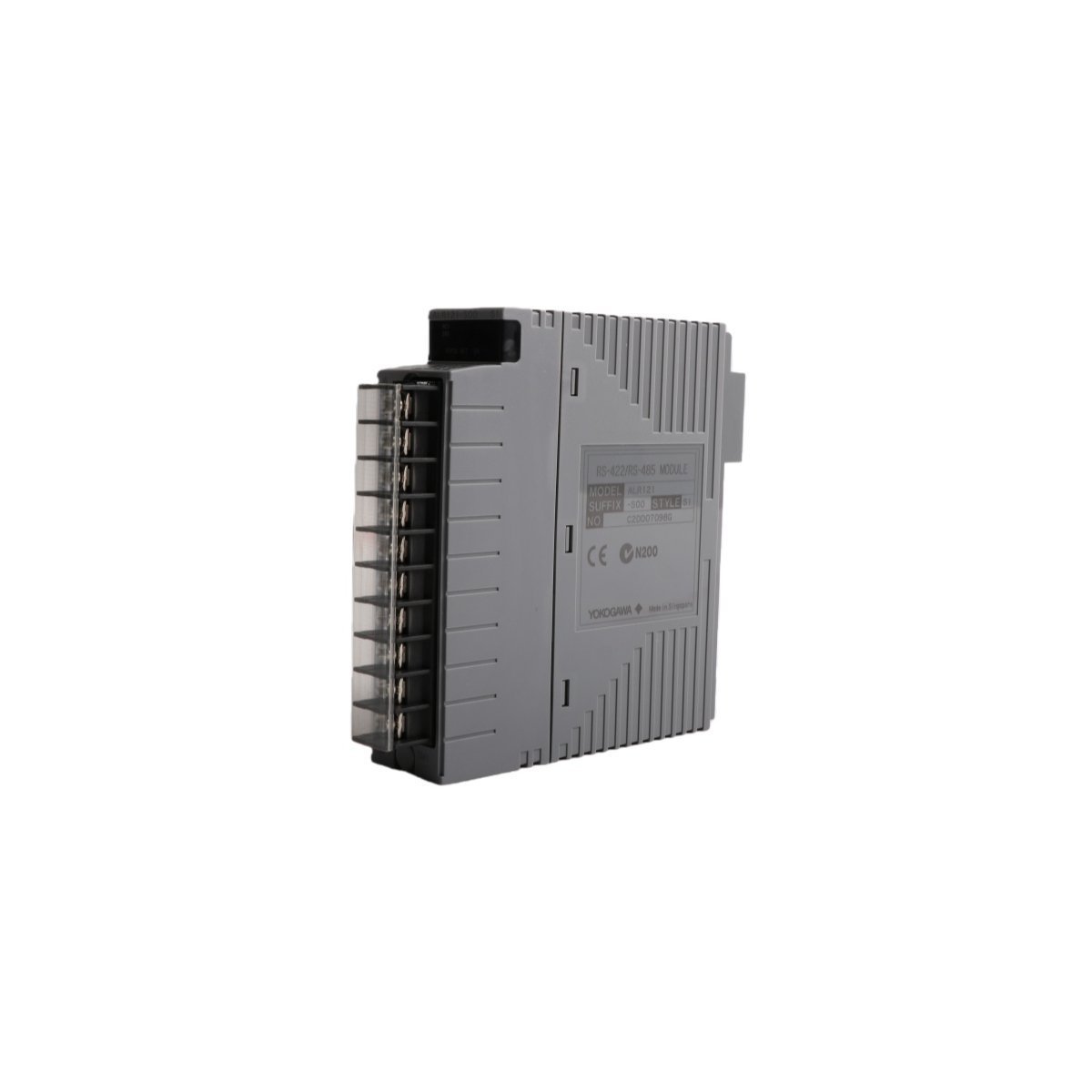

Yokogawa ALR121-S00 S1 CENTUM VP Serial Communication Module

Technical Product Overview

The Yokogawa ALR121-S00 S1 operates as a high-performance serial communication interface for the CENTUM VP and CENTUM CS 3000 control systems. This module enables the Field Control Station (FCS) to exchange data with external third-party devices, such as Programmable Logic Controllers (PLCs), gas chromatographs, and power monitors. By supporting RS-422 and RS-485 protocols, the ALR121-S00 S1 bridges the gap between the primary DCS and auxiliary plant equipment, ensuring that all process variables remain centralized for operator monitoring and control. The “S1” hardware revision offers enhanced internal processing and improved diagnostic stability for mission-critical communication links.

Operational Characteristics and Protocol Management

This module manages the complexities of serial data transmission through two independent ports, allowing for simultaneous communication with different device networks. Because it supports the Modbus RTU protocol (both Master and Slave modes), the ALR121-S00 S1 integrates seamlessly with a wide variety of industrial hardware. To ensure maximum system availability, the module supports a dual-redundant configuration where two modules work in tandem; if the active unit detects a hardware fault, the standby unit assumes communication duties immediately without data loss. Furthermore, the unit features a high-speed buffer and error-checking algorithms that prevent corrupted data from affecting the control logic.

Comprehensive Technical Specifications

• Manufacturer: Yokogawa Electric Corporation
• Model Number: ALR121-S00 S1
• Product Series: CENTUM VP / CS 3000
• Module Type: Serial Communication Module
• Number of Ports: 2 Channels
• Physical Interface: RS-422 / RS-485
• Communication Speed: 1200 bps to 115.2 kbps
• Transmission Distance: Up to 1200 meters (RS-422/485)
• Protocol Support: Modbus RTU, Modbus ASCII, and custom protocols via user-defined logic
• Redundancy: Supports dual-redundant module configuration
• Power Consumption: 0.5 A at 5V DC
• Weight:  0.30 kg

Strategic Industrial Applications

Automation engineers utilize the ALR121-S00 S1 to consolidate data from specialized equipment into the main control environment. Consequently, this module is essential for the following applications:

• Subsystem Integration: Connects specialized PLC-controlled packages, such as water treatment or chemical dosing units, to the main CENTUM VP operator stations.
• Analytical Monitoring: Captures real-time composition data from gas chromatographs and liquid analyzers for precision process tuning.
• Electrical Power Management: Interfaces with Intelligent Electronic Devices (IEDs) and protection relays to monitor plant-wide electrical status and energy consumption.
• Legacy System Bridging: Facilitates data exchange with older serial-based sensors and machinery that do not support modern Ethernet protocols
