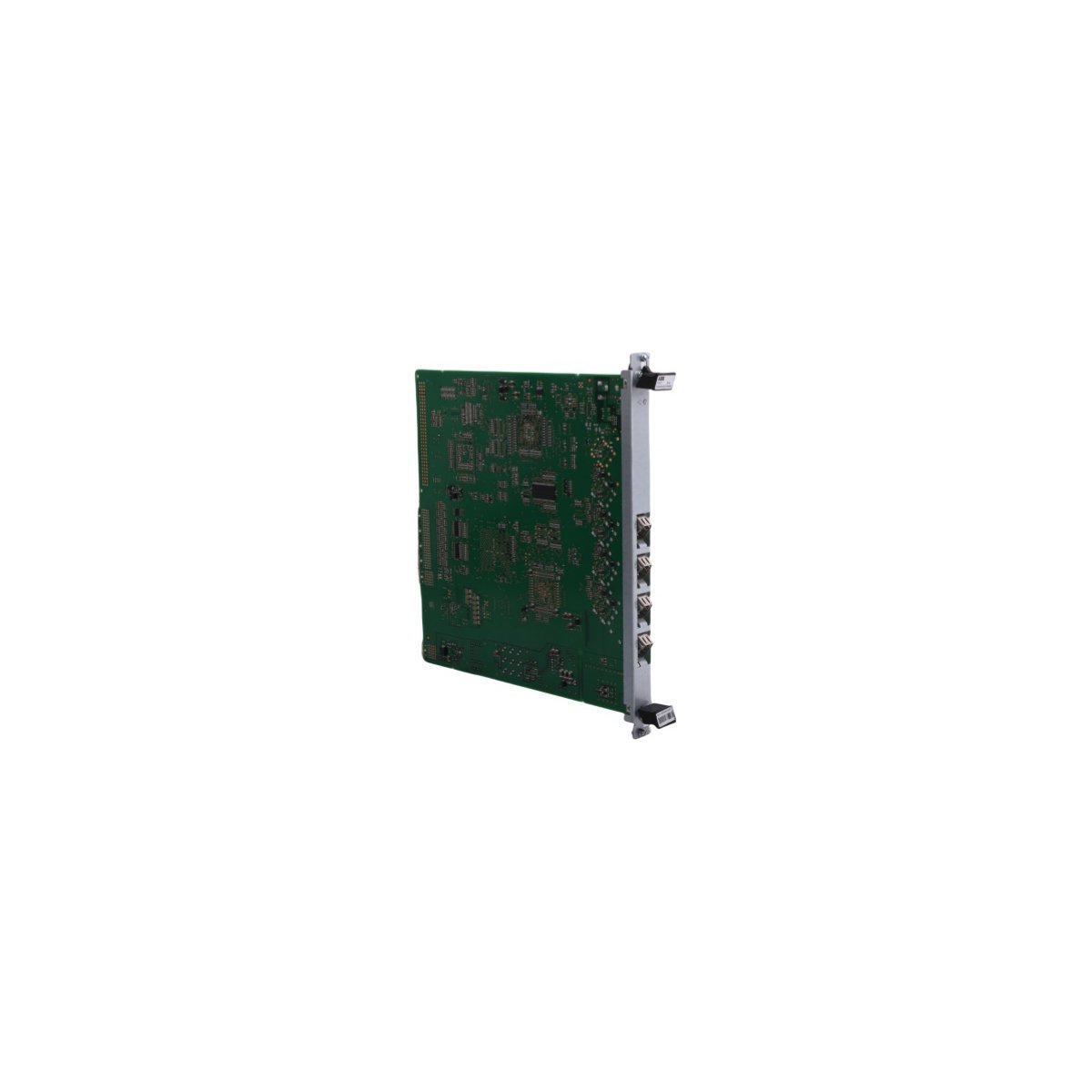

The ABB 1KHW002238R0001 / 1KHW002237R0001 OPIC1 R1A is a high-reliability Optical Interface PCB designed for excitation systems and power drives. It provides critical optical isolation and high-speed signal processing to ensure safe and efficient communication between control electronics and high-voltage power components.
The ABB 1KHW002238R0001 (often associated with the N4BG designation) and the 1KHW002237R0001 OPIC1 R1A function as specialized printed circuit boards (PCBs) within ABB’s high-performance industrial drive or excitation systems. These boards act as critical interface or optical peripheral interface controllers (OPIC), facilitating high-speed communication between the control logic and the power electronics components. Because high-voltage environments generate significant electromagnetic interference (EMI), the OPIC1 board utilizes optical isolation technologies to ensure signal integrity and protect the main processor from electrical surges.
Furthermore, the R1A revision indicates a specific hardware lifecycle stage, ensuring compatibility with particular vintages of ABB power systems. The board manages the conversion of electrical control signals into optical pulses (and vice-versa), which allows for the rapid switching of power semiconductors without the risk of ground loops or noise coupling. Since these boards typically reside in the heart of mission-critical machinery, they feature ruggedized components designed to withstand the thermal and vibrational stresses found in industrial power conversion applications.
Specialized engineers and technicians deploy the OPIC1 R1A board in large-scale energy and motor control infrastructure. Specifically, this PCB is essential in the following scenarios:
The Emerson DeltaV SIS™ KJ3001X1-BH1 (12P0558X152) is a legacy, high-performance isolated I/O interface card engineered for critical process safety and Distributed Control Systems (DCS). Providing robust electrical isolation to prevent ground loops and voltage spikes, this module features a field circuit rating of 60 VDC at 1 A per channel, a LocalBus power draw of 150 mA at 12 VDC, and a specialized B5 mechanical terminal block keying system to prevent incorrect field installation. Built to withstand punishing industrial conditions, its IP20-rated assembly is certified to ISA-S71.04-1985 Class G3 corrosion resistance standards, ensuring stable, interference-free safety loop communication in harsh, highly corrosive processing environments.
The Emerson Ovation 1P00028G01 Remote Node Transition Panel provides robust signal routing and high-integrity electrical isolation for legacy Ovation Distributed Control Systems (DCS). Operating at 220V AC across an ultra-wide temperature range of -40°C to +85°C, this compact transition panel eliminates field line noise and ensures reliable, deterministic peer-to-peer communication between remote I/O nodes and central controllers in demanding industrial environments.
