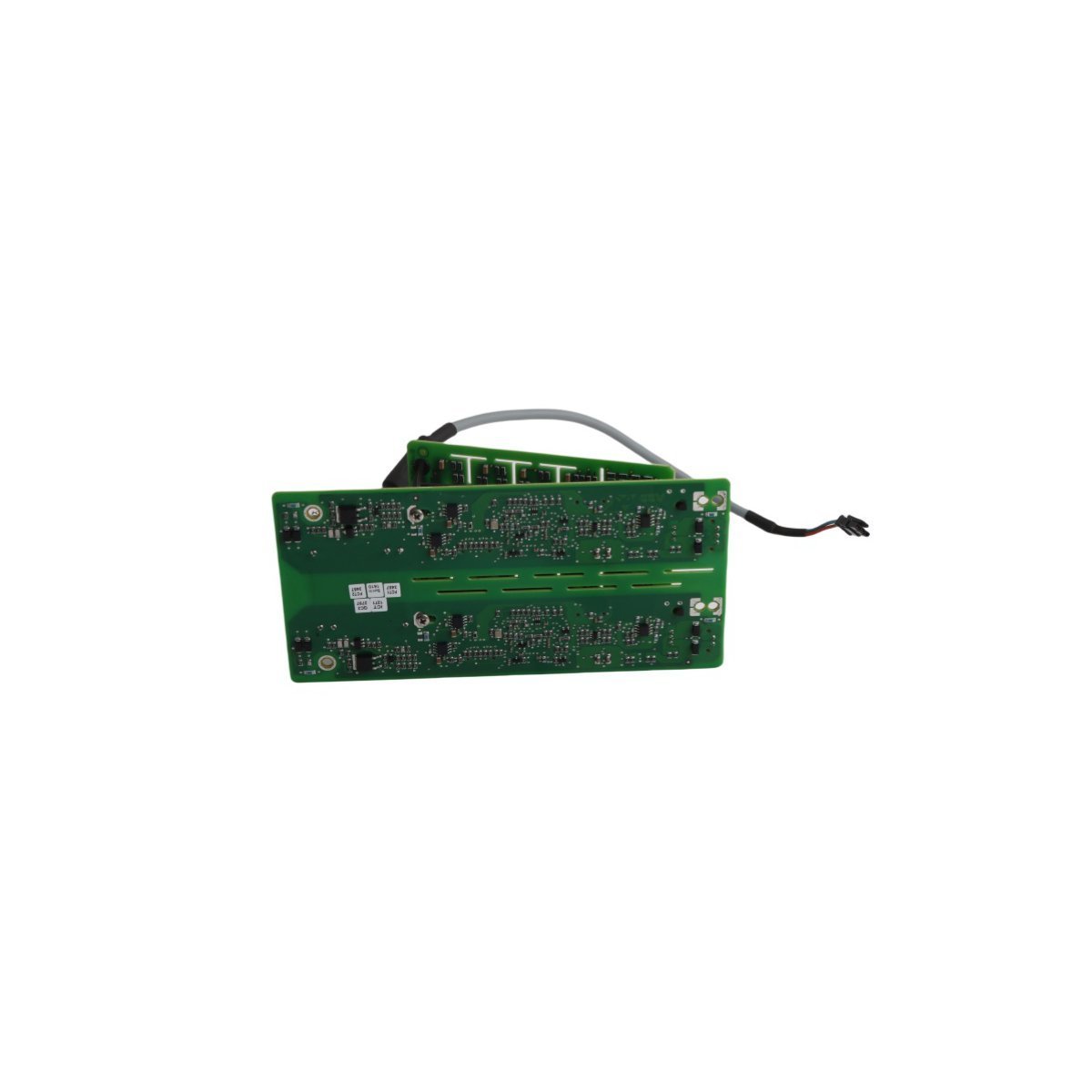

The ABB GDC806 B05 (3BHE036290R0005) is a specialized gate drive board for ACS 1000 drives. It provides precise semiconductor switching control, high-speed RS-485 diagnostics, and a wide operating temperature range for mission-critical medium voltage motor applications.
The ABB GDC806 B05 functions as a critical power electronics interface within the ACS 1000 medium voltage drive framework. This gate drive board primarily regulates the switching states of high-power semiconductors, ensuring precise control over energy conversion processes. By translating low-level control logic into the robust signals required to trigger power components, the module maintains the operational stability of large-scale motor drives.
Engineers frequently deploy this unit in heavy industrial environments where high-voltage regulation is essential. Because the board utilizes advanced galvanic isolation, it effectively shields sensitive control circuits from the high-voltage transients present in the power stage. Furthermore, the integration of high-speed RS-485 communication ports allows for real-time diagnostic feedback. Consequently, the system can monitor switching frequencies and thermal status instantaneously, which prevents hardware failure and reduces unscheduled downtime.
The hardware design prioritizes durability through the use of an aluminum-reinforced chassis that facilitates heat dissipation. Since the module withstands extreme temperatures ranging from -20°C to +70°C, it remains reliable in demanding plant conditions such as mining, water treatment, and marine propulsion. Moreover, the GDC806 B05 supports full integration with ABB Control Strategy software, enabling technicians to execute precise calibrations and performance tuning across the automation network.
