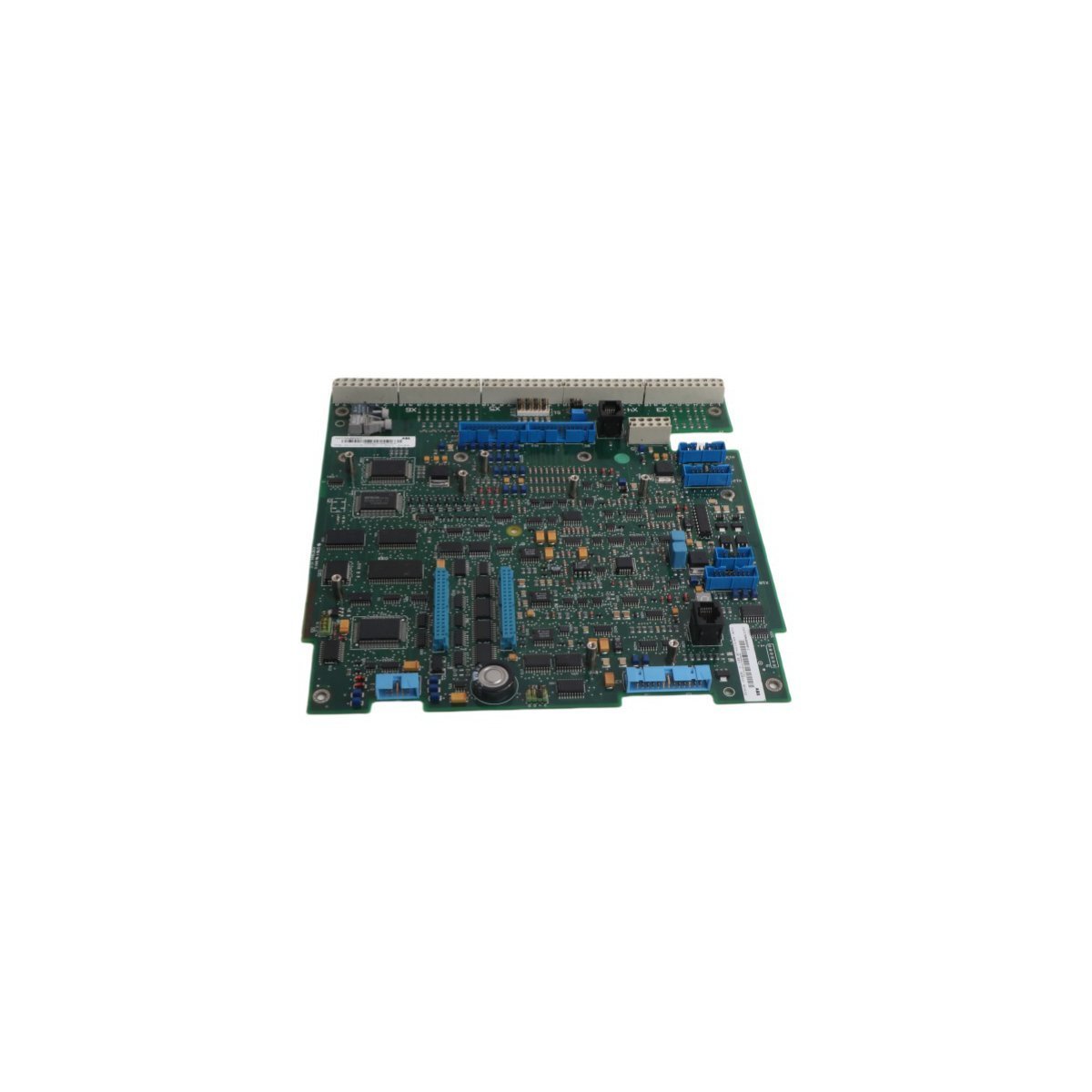

The ABB SDCS-CON-2B 3ADT309600R0012 is the primary digital control board for DCS500 and DCS600 DC drives. It manages thyristor firing, torque regulation, and system diagnostics to ensure precise DC motor control. This genuine ABB component is essential for maintaining high-performance operation in demanding industrial converter applications.
The ABB SDCS-CON-2B, cataloged under part number 3ADT309600R0012, functions as the primary digital control intelligence for the DCS500 and DCS600 series of industrial DC drives. This board serves as the “brain” of the converter, executing all speed and torque control algorithms while managing the firing pulses for the thyristor power bridge. Consequently, it enables the precise regulation of DC motors in high-torque applications. By utilizing a high-speed microprocessor, the SDCS-CON-2B processes field feedback and system commands in real-time, which remains essential for maintaining the stability of heavy-duty industrial processes.
Centralized Logic Execution: Because the board hosts the main drive firmware, it coordinates all internal operations, including parameter scaling, ramp generation, and fault handling.
Advanced Gate Pulse Control: Due to its precision timing circuits, the board ensures the accurate synchronization of thyristor firing. As a result, it optimizes power conversion efficiency and minimizes harmonic distortion in the motor circuit.
Comprehensive Interface Support: In addition to its processing core, the unit features multiple connectors for encoder feedback, analog I/O, and serial communication. This connectivity allows for seamless integration into supervisory control systems.
Diagnostic Self-Monitoring: Furthermore, the SDCS-CON-2B continuously monitors the drive’s health status. It identifies issues such as overspeed, field loss, or communication timeouts immediately, thereby protecting the expensive DC motor from damage.
Ruggedized Design: Owing to its industrial-grade construction, the board withstands the vibration and electrical noise typical of steel mills and mining facilities.
Automation specialists primarily deploy the SDCS-CON-2B 3ADT309600R0012 in legacy DCS drive systems that power large-scale machinery, such as rolling mills, extruders, and mine hoists. Since these applications require high starting torque and constant speed under varying loads, the control board provides the necessary computational power to maintain performance. Moreover, because it supports various fieldbus adapters, it allows older DC infrastructure to communicate with modern PLC networks. Consequently, the SDCS-CON-2B acts as a vital component for extending the service life and improving the controllability of critical DC power systems.
Manufacturer: ABB
Model Designation: SDCS-CON-2B
Ordering Code: 3ADT309600R0012
Component Category: Digital Control Board
System Compatibility: DCS500 / DCS600 DC Drives
Microprocessor: High-performance 16-bit/32-bit architecture
Programming: Configurable via ABB drive tools or local control panel
