  4. ABB UNITROL 5000 UNS3670A-Z,V1 Power Control Unit HIEE205011R0001
Sale!
SKU: HIEE205011R0001 UNS3670A-Z,V1

ABB UNITROL 5000 UNS3670A-Z,V1 Power Control Unit HIEE205011R0001

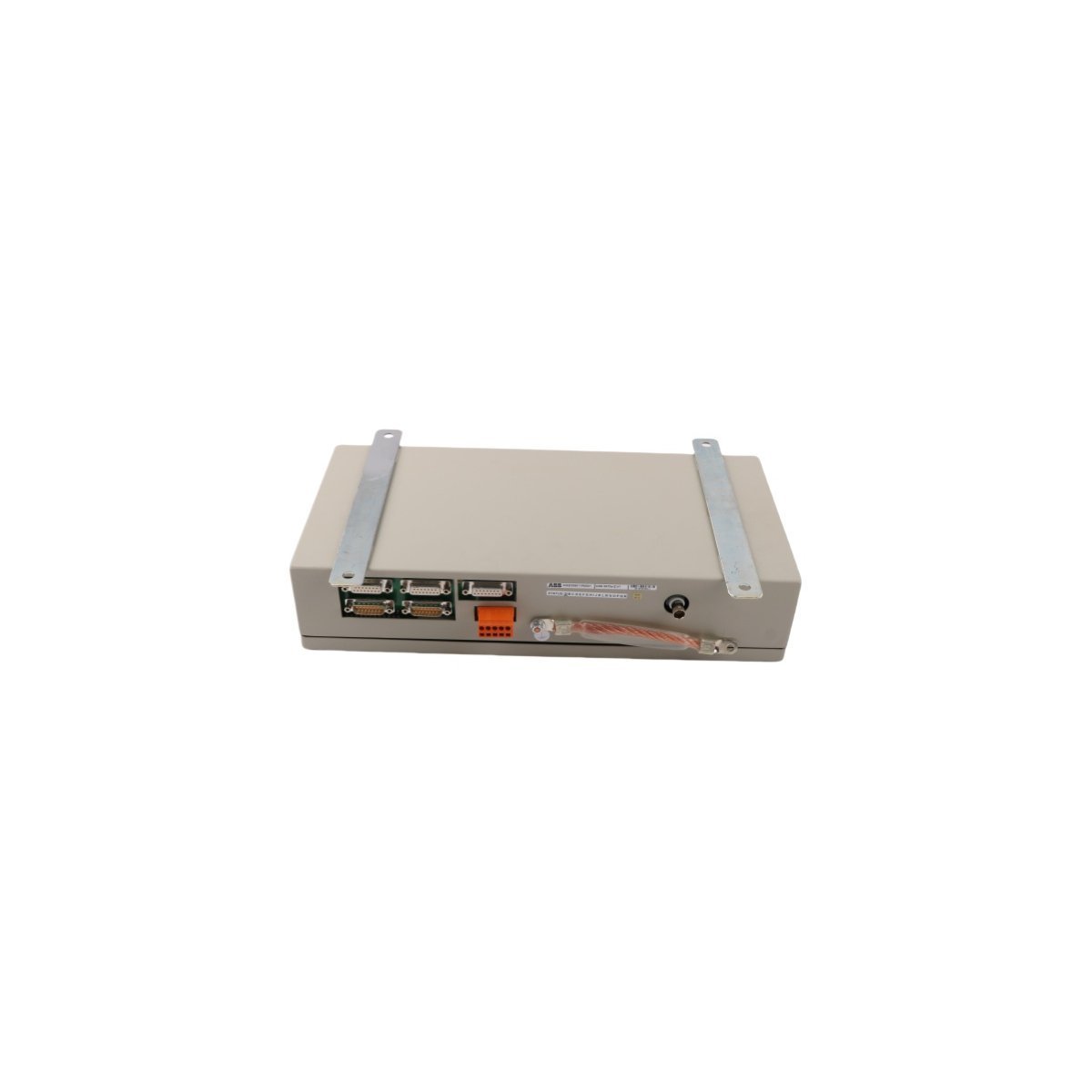

The ABB HIEE205011R0001 UNS3670A-Z,V1 is a brand-new, Swiss-manufactured Power Control Unit and Panel Interface designed for the UNITROL 5000 excitation system. This active 4.24 kg DCS module supports Modbus TCP/IP, EtherCAT, and DeviceNet protocols, providing integrated Ethernet routing, advanced real-time diagnostics, and heavy load management for high-capacity industrial automation and power generation environments.

Request a Quote

Product Overview

The ABB HIEE205011R0001 (UNS3670A-Z,V1) operates as a heavy-duty Power Control Unit and Panel Interface Module within the UNITROL 5000 excitation system framework. Engineers specify this high-performance distributed control system (DCS) component to regulate electrical excitation and manage high-current loads in demanding industrial environments. Because the module incorporates advanced real-time diagnostics, maintenance teams can monitor system stability continuously, which effectively minimizes unplanned downtime through predictive alerts. The rugged hardware design ensures consistent operational longevity and lowers overall maintenance requirements under harsh plant conditions.

Technical Characteristics and System Integration

  • Brand: ABB
  • Model Identification: UNS3670A-Z,V1
  • Order Part Number: HIEE205011R0001
  • Equipment Categorization: Power Control Unit / Panel Interface Module
  • System Lineage: UNITROL 5000 Excitation Series
  • Country of Manufacture: Sweden
  • Operational Status: Active Lifecycle Component
  • Network Architecture Compatibility: Modbus TCP/IP, EtherCAT, and DeviceNet protocols
  • Integrated Communication Service: Distributed Ethernet routing functionality
  • Commodity Code (HS Code): 8537101190
  • Physical Dimensions: 40 cm x 25 cm x 9.5 cm
  • Net Equipment Weight: 4.24 kg
  • Minimum Order Quantity: 1 Unit

Key Functions and Industrial Applications

Consequently, this module functions as a critical interface for power regulation, where it actively manages high-current transitions and stabilizes demanding load profiles without compromising safety margins. Industrial plants deploy the UNITROL 5000 power control unit primarily in power generation facilities, synchronous motor control systems, and automated utility networks that rely on robust DCS architecture. Furthermore, the embedded communication routing capabilities allow the unit to bridge field devices with centralized control rooms seamlessly, thereby optimizing data transmission across complex factory networks. In addition, the system consistently monitors internal diagnostics to prevent sudden power fluctuations, while it simultaneously accelerates data throughput across field networks. Therefore, control engineers utilize this module to streamline system configuration and maximize operational uptime under heavy load conditions.
