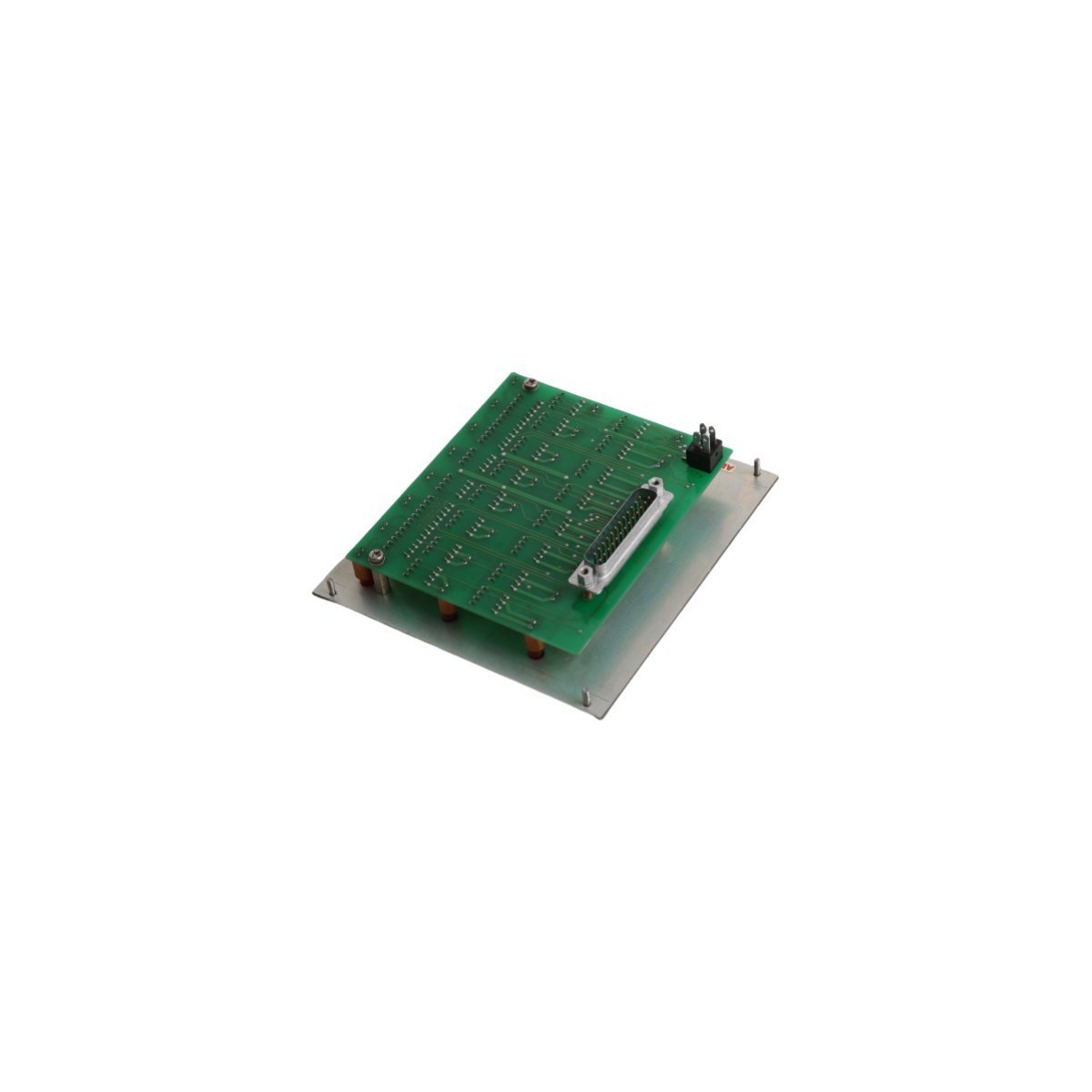

ABB HIEE300043R1 ALA334 A01 Luminous Diode Visual Indicator Board

Purpose and Functional Role

The ABB HIEE300043R1, identified by the ALA334 A01 designation, serves as a high-visibility luminous diode board specifically engineered for the UNITROL 5000 excitation system. This specialized module provides critical visual diagnostics and status monitoring for industrial control panels. By utilizing high-intensity LEDs, the board ensures that operators can accurately identify system states even in high-ambient light environments found in power generation and processing plants. Furthermore, this component acts as a vital signaling interface within a Distributed Control System (DCS) architecture, translating electronic logic into clear, real-time visual feedback for maintenance personnel.

Design Features and Operational Durability

ABB constructs the ALA334 A01 with industrial-grade components to guarantee long-term performance under continuous duty cycles. Because the board operates in environments prone to thermal fluctuations and electrical noise, it features robust circuitry that stabilizes current flow to the luminous diodes. This design prevents premature LED failure and maintains consistent brightness levels over the product’s lifespan. Additionally, the compact physical footprint allows for efficient installation within the dense internal layouts of control cabinets, ensuring that vital indicators remain accessible without requiring excessive panel space.

Core Technical Specifications

• Manufacturer: ABB
• Order Number: HIEE300043R1
• Model Type: ALA334 A01
• Product Series: UNITROL 5000
• Component Category: Luminous Diode Board / Visual Indicator PCB
• System Integration: DCS / Excitation Control
• Unit Weight: 0.16 kg
• Module Dimensions: 12 x 12.8 x 3.2 cm
• Manufacturing Origin: Sweden
• Status: Active / In Stock

Technical Integration and Maintenance

Integrating the HIEE300043R1 into an existing UNITROL framework is straightforward due to its standardized mounting and connection points. This module effectively reduces system troubleshooting time by providing localized status reports directly on the hardware rack. Moreover, the board’s low power consumption ensures that it does not place an unnecessary burden on the system’s internal power supplies. As industrial facilities transition toward more complex automation, the reliable visual signaling provided by the ALA334 A01 remains a fundamental requirement for ensuring safe and efficient plant operation.
