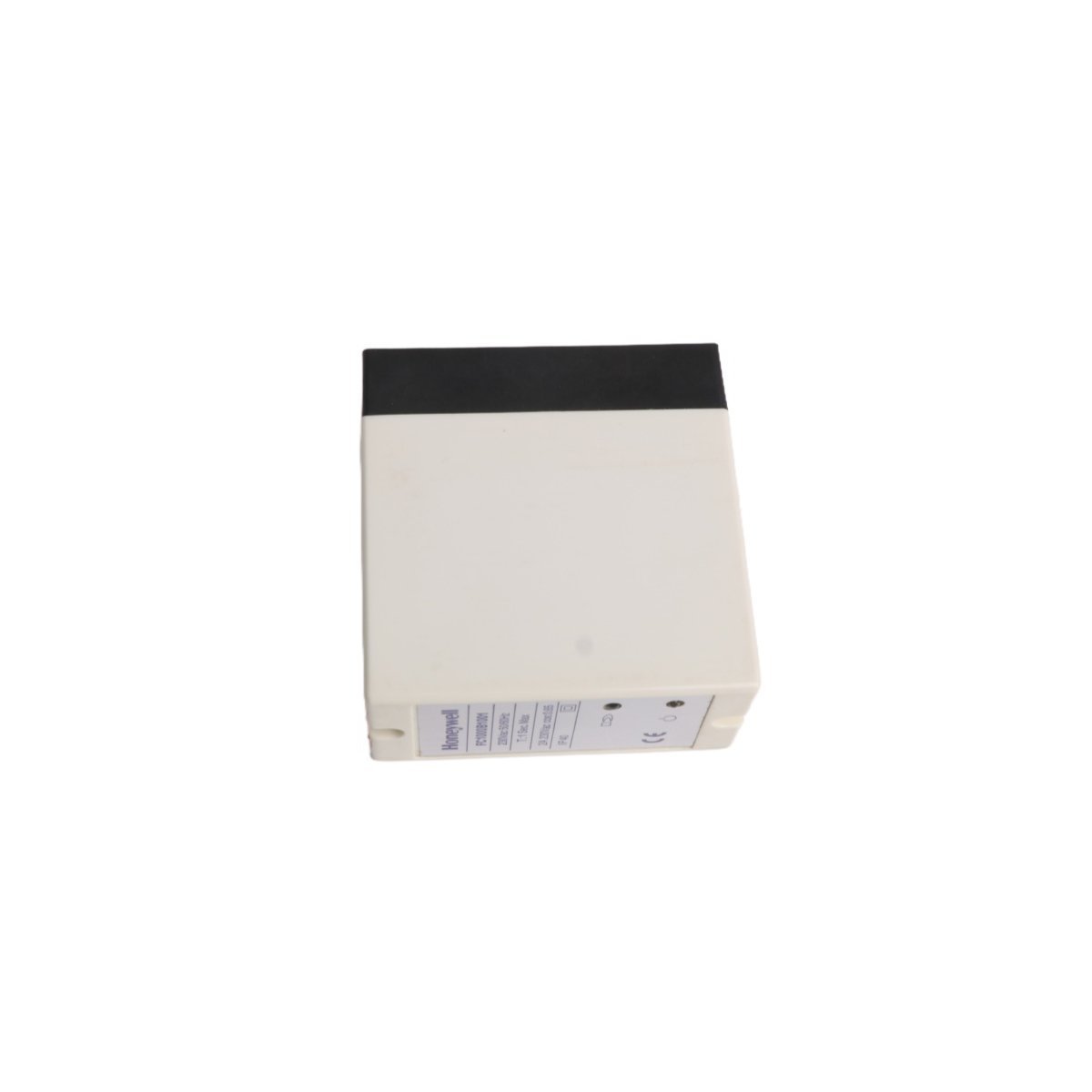

HONEYWELL CV-FFLX05 Fieldbus Usage License

The HONEYWELL CV-FFLX05, also cataloged as the CV-FFLX05 Fieldbus Usage License, operates as a dedicated hardware component for software-key authorization within PlantCruise DCS networks. The item acts as an activation key for five physical Fieldbus Interface Modules (FIMs), allowing the hardware gateways to initialize and communicate with field-level instrumentation. It bridges no logical protocols directly but provides the mandatory digital handshake to enable multi-channel network scanning on physical FIM-1, FIM-2, FIM-4, or FIM-8 modules.

Hardware Specifications

Process Control & Fieldbus Connectivity

The HONEYWELL CV-FFLX05 unlocks the execution of the 4-20 mA HART loop protocol wrappers and Foundation Fieldbus H1 network stacks across the host controller backplane. Once authorized by the license token, the enabled FIM units manage deterministic macrocycle scheduling for connected H1 segments. This includes managing Link Active Scheduler (LAS) redundancy, enforcing asynchronous traffic limits, and processing device alerts mapped via the FF-902 diagnostics profile. The licensing matrix ensures that the CPU allocates dedicated communication buffers to handle cyclic data blocks from up to 80 field devices simultaneously across the five enabled interfaces.

Frequently Asked Questions

Q: Does the physical shipping weight of 0.4 kg indicate an electronic hardware dongle?

A: Yes. The license is delivered via a physical, panel-mounted or slot-bound hardware key assembly with standard dimensions matching the system rack. This physical component must remain installed on the controller rack or routing node to maintain active token verification.

Q: What occurs to the fieldbus network segments if the CV-FFLX05 hardware token is extracted during operation?

A: Extraction of the hardware licensing token triggers a system validation fault. While existing cyclic communication may continue for a buffered period depending on controller firmware configuration, configuration changes, device replacements, and acyclic messaging will be blocked until a valid license component is reinserted.

Q: Can this license token be split across multiple independent PlantCruise controllers?

A: No. The CV-FFLX05 is an indivisible 5-FIM block authorization token. It must be assigned and bound to a single controller rack or system node, validating up to five local or distributed FIM hardware modules managed by that specific host.

Field Installation Guidelines

• Hardware Dongle Insertion: Power down the target controller rack or configuration node before inserting the license carrier module into the designated slot to prevent bus corruption.
• Firmware Syncing: Verify that the base system firmware level matches the revision code encoded within the CV-FFLX05 hardware component. Mismatched revisions will cause authorization failures during initialization.
• FIM Allocation Mapping: Ensure the physical FIM modules are addressed sequentially within the engineering software to align with the activated slots provided by the 5-FIM license token.
• Grounding Requirements: Maintain standard industrial grounding for the carrier housing. The metal chassis of the license module must achieve direct electrical contact with the DIN rail or rack frame to minimize electrostatic interference.
