  4. Emerson EPRO PR6423/10R-010-CN CON021 Eddy Current Displacement Sensor
Sale!
  • PR6423/XXX/X4X CON021 EMERSON Proximity Sensor
  • PR6423/XXX/X4X CON021 EMERSON Proximity Sensor
SKU: PR6423/10R-010 CON021

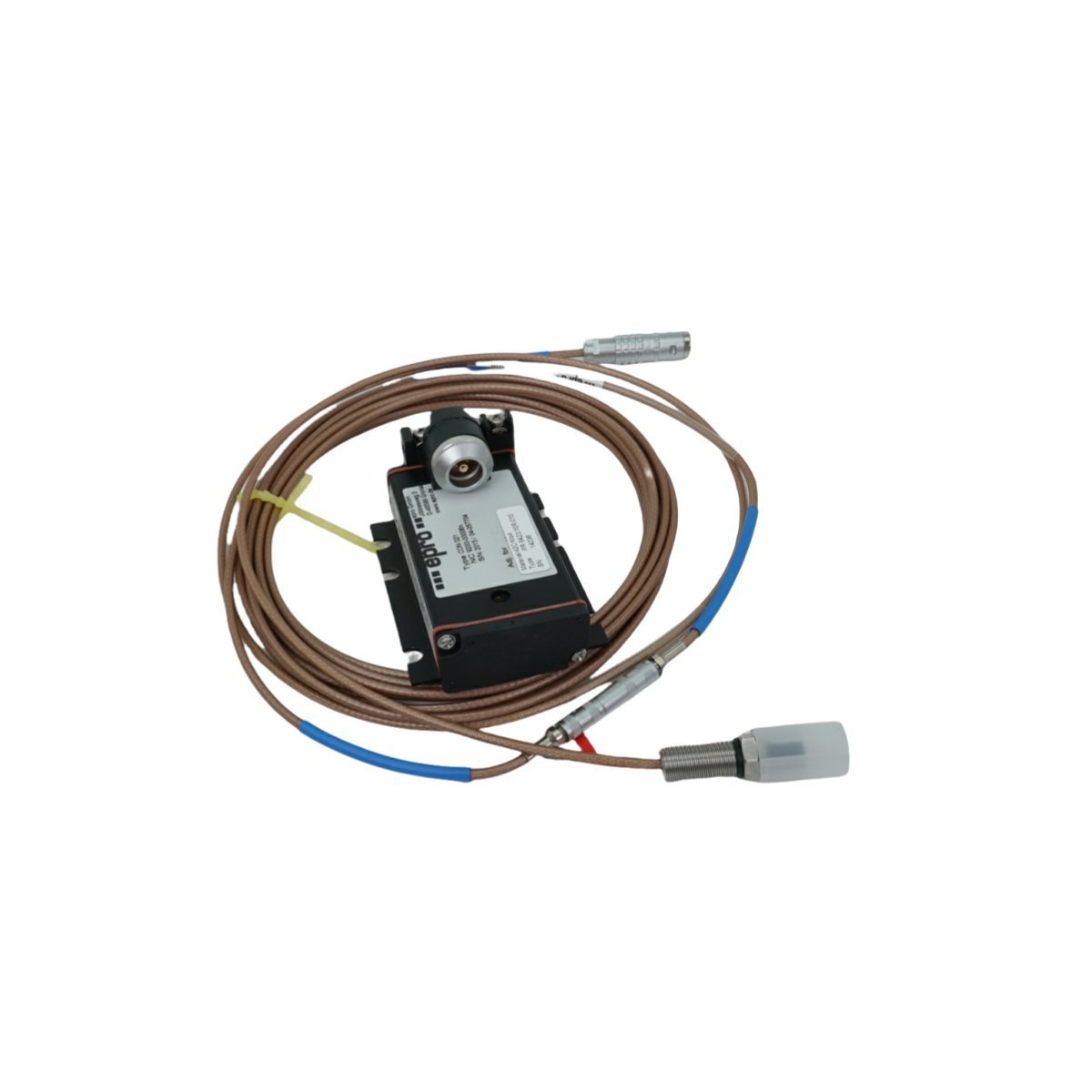

Emerson EPRO PR6423/10R-010-CN CON021 Eddy Current Displacement Sensor

The Emerson PR6423/10R-010-CN is a professional-grade eddy current sensor for non-contact displacement and vibration monitoring. Featuring an M10x1 metric thread and CN-localized hazardous area certification, it provides high-precision shaft position data for critical rotating machinery in power and petrochemical plants.

Request a Quote

Product Description

The Emerson PR6423/10R-010-CN functions as a high-precision inductive displacement sensor within the EPRO product family, specifically engineered for non-contact machinery protection. By utilizing the eddy current principle, this sensor measures the gap between the probe tip and a conductive rotating shaft with sub-micron accuracy. Because industrial turbines and compressors operate at extreme speeds, this sensor provides the real-time vibration and position data necessary to prevent catastrophic mechanical contact.

Furthermore, the “CN” designation signifies that this model carries specific hazardous area certifications for the Chinese market, ensuring compliance with local safety regulations. The CON021 configuration features a specialized cable and connector assembly designed to maintain signal integrity over long distances. Since the sensor body is hermetically sealed and resistant to high-pressure lubricants, it performs reliably in the internal environments of steam turbines and large gearboxes. Consequently, it enables the plant’s monitoring system to detect early signs of bearing wear or shaft misalignment, thereby extending the service life of critical infrastructure.

Key Technical Characteristics

  • Manufacturer: Emerson (EPRO Series)
  • Model Number: PR6423/10R-010-CN
  • Configuration Code: CON021
  • Measurement Type: Non-contact Eddy Current (Inductive)
  • Linear Range: Typically 2.0 mm (80 mils) depending on target material
  • Mounting Thread: M10 x 1 metric thread
  • Cable Length: 1.0 meter integrated cable (Option -010)
  • Operating Temperature: Designed for environments up to +170°C
  • Target Material: Standard calibration for AISI 4140 steel
  • Compliance: Certified for use in explosive atmospheres (localized CN standards)

Industrial Applications

Maintenance teams and reliability engineers deploy the PR6423/10R-010-CN across various heavy-duty sectors to monitor machine health. Specifically, the sensor manages the following critical functions:

  • Radial Shaft Vibration: Continuous monitoring of shaft movement within fluid-film bearings to identify rotor imbalance.
  • Axial Thrust Position: Measuring the longitudinal displacement of turbine rotors to protect against internal stator contact.
  • Eccentricity Detection: Tracking shaft “bow” or thermal warping during machine startup and shutdown phases.
  • Speed and Phase Reference: Providing Keyphasor signals for diagnostic orbit analysis and RPM calculation.
