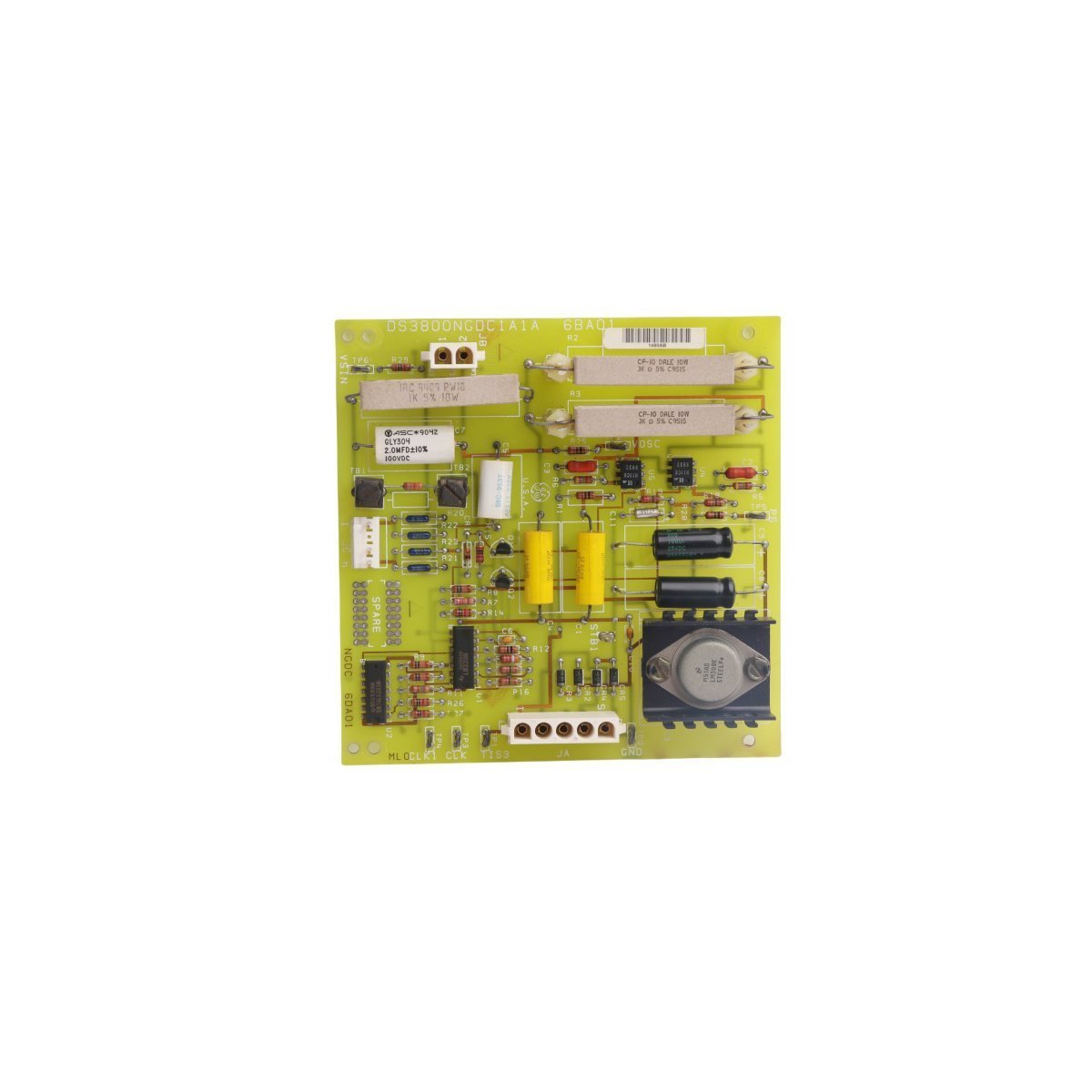

General Electric DS3800NGDC1A1A Mark IV Ground Detector Board

The General Electric DS3800NGDC1A1A serves as a specialized diagnostic component within the Speedtronic Mark IV turbine control system. This board provides critical monitoring of electrical isolation by detecting ground faults within the system’s DC control circuits. By identifying unintended leakage paths to the earth, the DS3800NGDC1A1A allows operators to address insulation failures before they escalate into hardware damage or system-wide trips.

Core Functional Capabilities

• Active Ground Fault Detection: Constantly monitors the electrical potential of the DC bus to identify deviations that indicate a ground fault condition.
• Sensitivity Calibration: Features adjustable parameters to distinguish between minor electrical noise and significant insulation breakdowns.
• Redundant Logic Integration: Communicates fault data to the primary Mark IV controller, facilitating automated safety responses.
• Onboard Indicators: Equipped with diagnostic LEDs that provide local visual confirmation of board health and detected fault status.
• Signal Isolation: Utilizes high-quality optocouplers to ensure that fault monitoring does not introduce interference into the control signals.

Operational Performance and Integration

The DS3800NGDC1A1A is a vital safeguard for legacy power generation infrastructure. In addition to its primary detection role, the board enhances the overall electrical safety profile of the control cabinet. Because ground faults can lead to erratic logic behavior or hazardous short circuits, this board acts as an early warning system. Consequently, maintenance teams can proactively schedule repairs during planned outages rather than reacting to emergency shutdowns. Furthermore, the DS3800NGDC1A1A maintains a compact form factor that fits seamlessly into the Mark IV card rack. As a result, it provides comprehensive protection without requiring extensive wiring modifications. Moreover, its design is specifically hardened to withstand the electrical surges typical of large-scale turbine environments.

Technical Specifications Summary

• Manufacturer: General Electric (GE)
• Model Identifier: DS3800NGDC1A1A
• Series: Speedtronic Mark IV
• Product Type: Ground Detector / Ground Fault Monitor Board
• Revision Level: A1A (indicating specific hardware updates)
• Circuitry: Analog and digital hybrid for precise detection
• Installation: Rack-mounted within the control terminal assembly
• Compatibility: Optimized for GE Gas and Steam Turbine Control Systems

Industrial Utility and Compliance

Due to the critical nature of turbine grounding, the DS3800NGDC1A1A is a standard requirement for Speedtronic Mark IV control cabinets in utility-scale power plants. Specifically, it protects the high-value logic processors from potential voltage spikes caused by grounding issues. Ultimately, this board provides the necessary oversight to maintain electrical integrity and operational safety throughout the turbine’s lifecycle.
