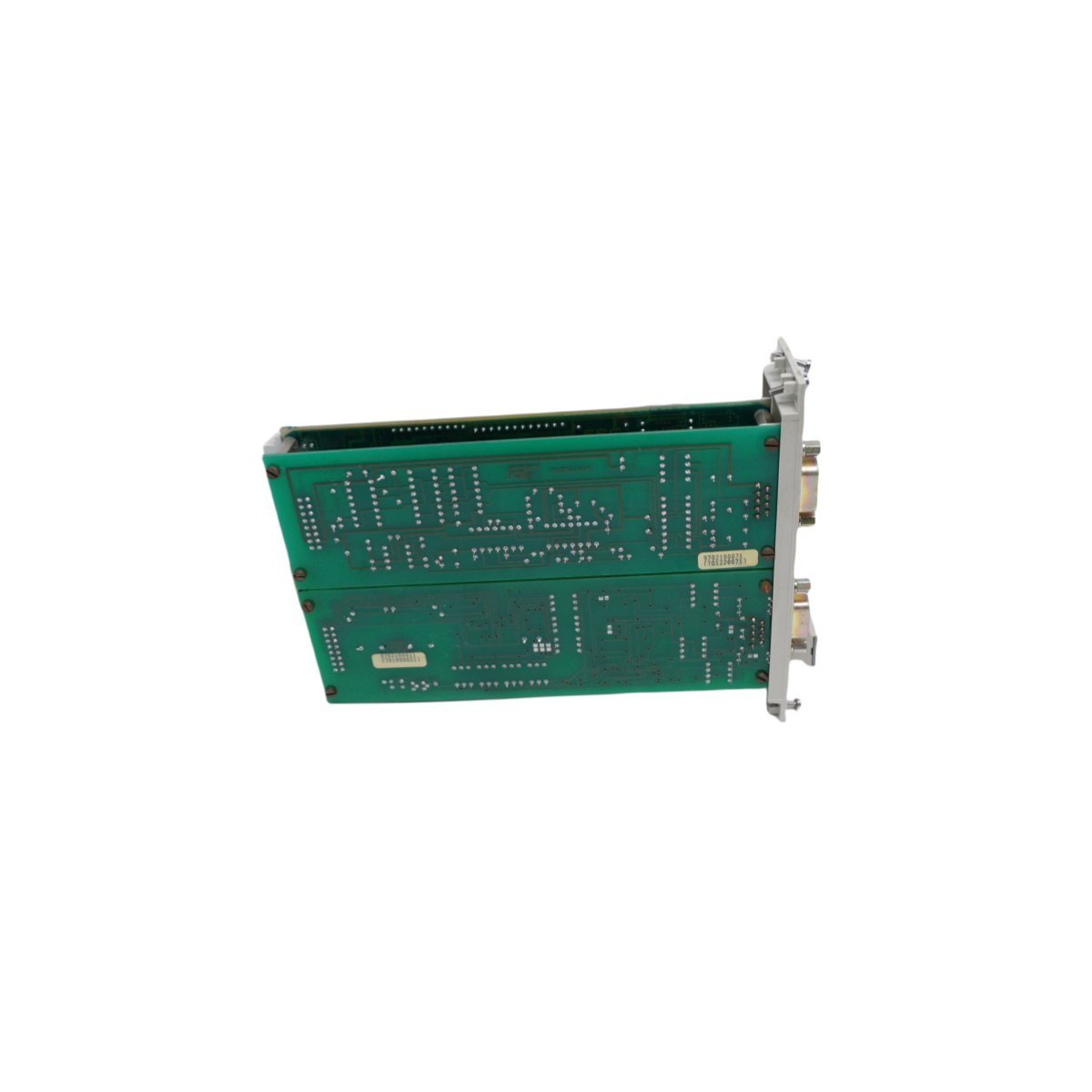

Honeywell 10004/H/F Fail-Safe High-Speed Communication Module

Technical Overview

The Honeywell 10004/H/F functions as a high-integrity communication interface specifically designed for the Safety Manager and FSC (Fail-Safe Control) systems. This module actively drives the high-speed data exchange between redundant controller racks and remote I/O chassis via the dedicated safety bus. By utilizing specialized fail-safe protocols, the 10004/H/F secures the transmission of critical safety-instrumented signals, ensuring that the central logic unit receives field data without corruption or delay. In essence, it serves as the primary digital artery of the safety system, thereby enabling the deterministic response times necessary for emergency shutdown (ESD) and fire and gas (F&G) applications.

Key Features and Specifications

• Brand: Honeywell
• System Architecture: Safety Manager / FSC System
• Model Identifier: 10004/H/F
• Component Class: High-Speed Communication (HSC) Module
• Safety Rating: Certified for SIL 3 safety-related applications
• Network Interface: Specialized Safety Bus (Vertical/Horizontal)
• Hardware Design: Conformal coated for protection against harsh industrial atmospheres
• Diagnostic Support: Real-time hardware health monitoring and communication error checking

Functional Integration and Network Integrity

The 10004/H/F coordinates the complexities of safety-critical networking by enforcing Honeywell’s proprietary fail-safe communication logic. This module actively regulates the physical transmission layer; consequently, it identifies and isolates faulty communication paths before they can disrupt the overall safety loop. In addition to this error detection, the module incorporates high-speed galvanic isolation to protect the central processor from electrical surges originating in the remote I/O distribution.

Furthermore, the “H/F” designation indicates a hardware revision optimized for high-performance and high-frequency data throughput. As a result of this optimized architecture, the module sustains stable communication even in systems with high channel densities and complex voting logic. Moreover, the 10004/H/F supports fully redundant hardware configurations; accordingly, if the primary communication module encounters an internal fault, the secondary unit maintains the data link seamlessly. In light of these redundant paths, the system prevents nuisance trips and ensures that the plant maintains a continuous safety envelope.

Application and Reliability

Safety engineers specify the Honeywell 10004/H/F for mission-critical infrastructure, including offshore platforms, refineries, and chemical processing facilities. The module provides the ruggedized performance required to withstand the vibration and electromagnetic interference (EMI) typical of industrial control rooms. Beyond its physical resilience, the communication module facilitates the decentralized architecture of the Safety Manager, thereby allowing sensors and actuators to be placed hundreds of meters away from the central logic solver without losing signal fidelity.

Because the module employs a modular plug-in design, maintenance personnel can perform swift diagnostic checks and replacements during scheduled safety audits. Ultimately, the 10004/H/F delivers the reliable data connectivity and fail-safe performance required to protect personnel and high-value assets, thus upholding the operational integrity of global industrial sites. By virtue of its SIL 3 certification, this module remains a fundamental component for any facility requiring the highest levels of risk reduction and system availability.
