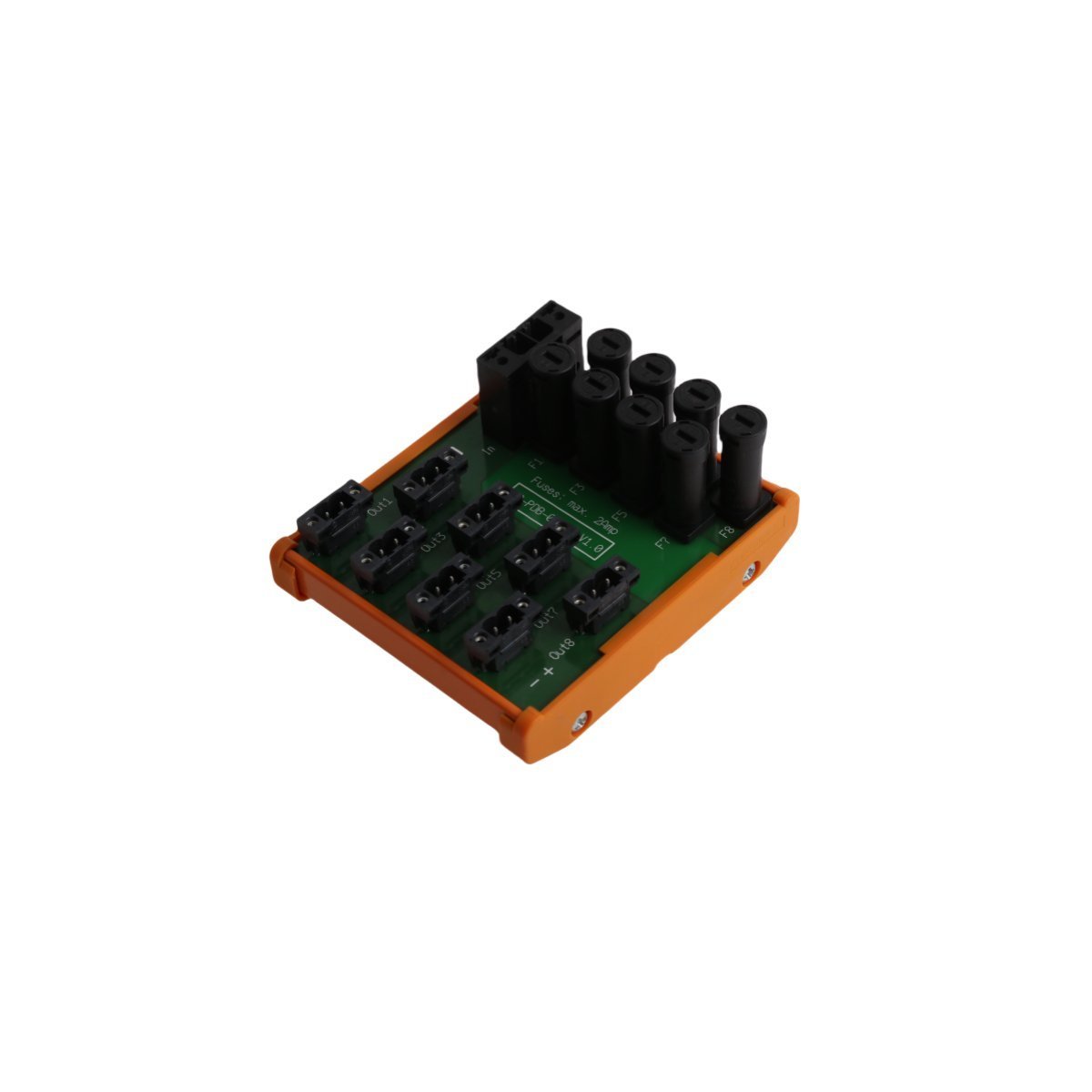

Honeywell FC-PDB-0824 Power Distribution Board

Configured for power distribution and circuit protection in DCS infrastructure, the Honeywell FC-PDB-0824 (FC-PDB-0824 Machine Control) provides direct physical electrical execution for field-level power management.

Hardware Specifications

Process Control & Signal Characteristics

The FC-PDB-0824 module manages secondary power distribution across the control rack backplane. It utilizes channel-to-channel isolation to prevent electrical fault propagation and maintain local loop integrity. The internal circuitry supports 4-20 mA HART loop protocol compatibility by ensuring stable voltage supply rails, which minimizes signal noise in sensitive measurement circuits. Furthermore, the module facilitates cold junction compensation (CJC) for integrated temperature sensing paths, maintaining high precision in measurement data. The board design provides regulated power paths for discrete and analog I/O channels, ensuring deterministic performance within the DCS environment.

Frequently Asked Questions (FAQ)

Q: What is the primary function of the FC-PDB-0824 in a redundant power configuration?

A: The module acts as an intermediate distribution node. In redundant setups, it ensures stable voltage delivery from dual power sources while maintaining electrical isolation between the primary and secondary supply paths to prevent cross-loading.

Q: Are there specific installation requirements to prevent ground loops?

A: Users must connect the module chassis ground terminal directly to the system cabinet’s main grounding bus using a low-impedance braided cable to ensure the prevention of induced ground loops and common-mode noise interference.

Q: Does the module support hot-swapping under full load?

A: The module design permits hot-swapping; however, technicians must ensure that the downstream field wiring is properly isolated or de-energized to prevent arcing at the contact points during the extraction process.

Field Installation Guidelines

• First, inspect the connector pins and the backplane mating socket for signs of oxidation or debris before initiating the physical mounting process.
• Subsequently, verify that the input voltage source is properly regulated and matches the module input specifications to prevent damage to the distribution circuitry.
• Meanwhile, slide the module along the guide rails until the locking mechanism engages firmly, ensuring the backplane connector is fully seated.
• Furthermore, secure the faceplate captive screws to the chassis frame to ensure a low-resistance path for electromagnetic interference shielding.
• Finally, perform a post-installation voltage check at the output terminals using a calibrated multimeter to confirm stable power distribution before connecting field devices.
