SKU: MC-PPIX02 51304386-150

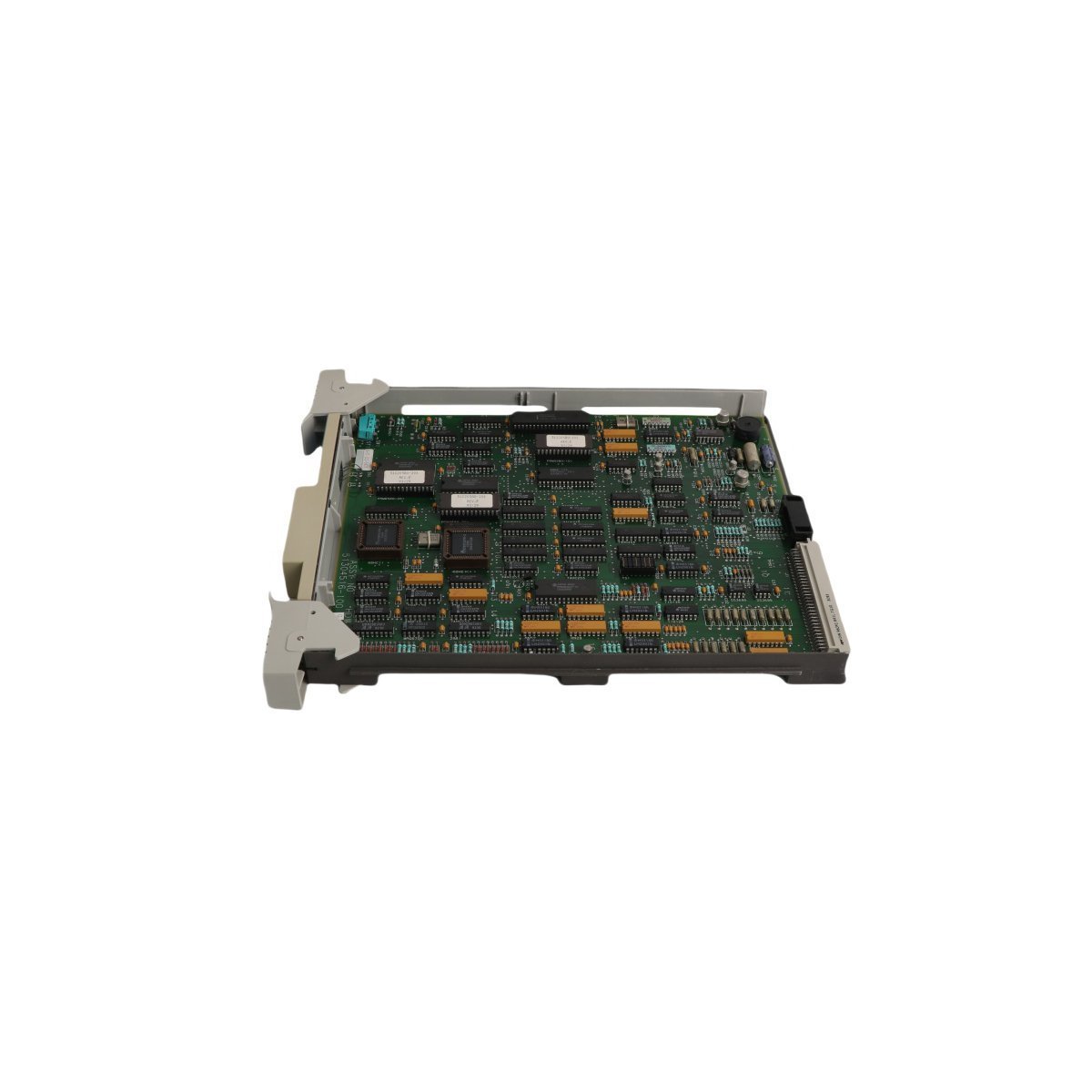

HONEYWELL MC-PPIX02 Pulse Input Module

Request a Quote

Configured for high-frequency pulse signal acquisition in DCS platforms, the HONEYWELL MC-PPIX02 51304386-150 (MC-PPIX02 Pulse Input Module) provides direct physical and electrical execution for flow and speed monitoring applications.

Hardware Specifications

ParameterSpecification
Model51304386-150 MC-PPIX02
BrandHONEYWELL
OriginUSA
Weight0.8 kg
Dimensions12.7 cm x 12.7 cm x 12.7 cm
Operating TempIndustrial standard
Power ConsumptionBackplane dependent
Module TypePulse Input Module

Process Instrumentation and Connectivity

In process control architectures, the MC-PPIX02 serves as the primary interface for discrete pulse train monitoring. To begin with, the module facilitates high-speed counter accumulation; consequently, this data acquisition method ensures sub-millisecond resolution for flow and rotational speed calculations. Furthermore, the input circuitry provides channel-to-channel isolation, which is critical for minimizing signal cross-talk in dense I/O configurations. Moreover, the architecture supports standard 4-20 mA HART loop protocol integration through secondary instrumentation, thereby maintaining synchronized process variable reporting. Additionally, when considering signal stability, the implementation of localized filtering serves to mitigate electromagnetic interference (EMI) prevalent in industrial environments. Finally, the module ensures that pulse data remains consistent with the controller scan cycle, preventing count overflow or missed transitions during high-frequency input events.

Frequently Asked Questions

Q: Does the MC-PPIX02 support hot-swapping during active operation?

A: Yes, the module supports hot-swapping within the designated DCS chassis. Ensure that the corresponding I/O assignment in the controller software is offline or in a safe state prior to module extraction to avoid communication faults on the backplane.

Q: How does the module handle signal attenuation over extended cable runs?

A: The input stage is designed with low impedance thresholds to maintain signal integrity. For extended runs, ensure the use of shielded twisted-pair cabling and verify that the pulse amplitude remains within the specified voltage threshold to prevent pulse-loss during high-speed detection.

Field Installation Guidelines

  • Mounting: Seat the module into the designated slot on the DCS backplane. Align the guide rails to ensure the connector pins engage without lateral pressure to prevent mechanical damage.
  • Shielding: Terminate cable shields at the cabinet-specific earth ground bus. Ensure the ground connection exhibits low resistance to minimize potential differences that contribute to ground loops.
  • Segregation: Maintain spatial separation between pulse input signal wiring and high-voltage AC/DC power lines. Utilize dedicated cable trays to prevent inductive coupling from power lines into sensitive signal circuits.
  • Grounding: Verify the integrity of the system common reference point before terminating field devices to the module terminals, as floating inputs can lead to erroneous frequency counts.
Tags:
