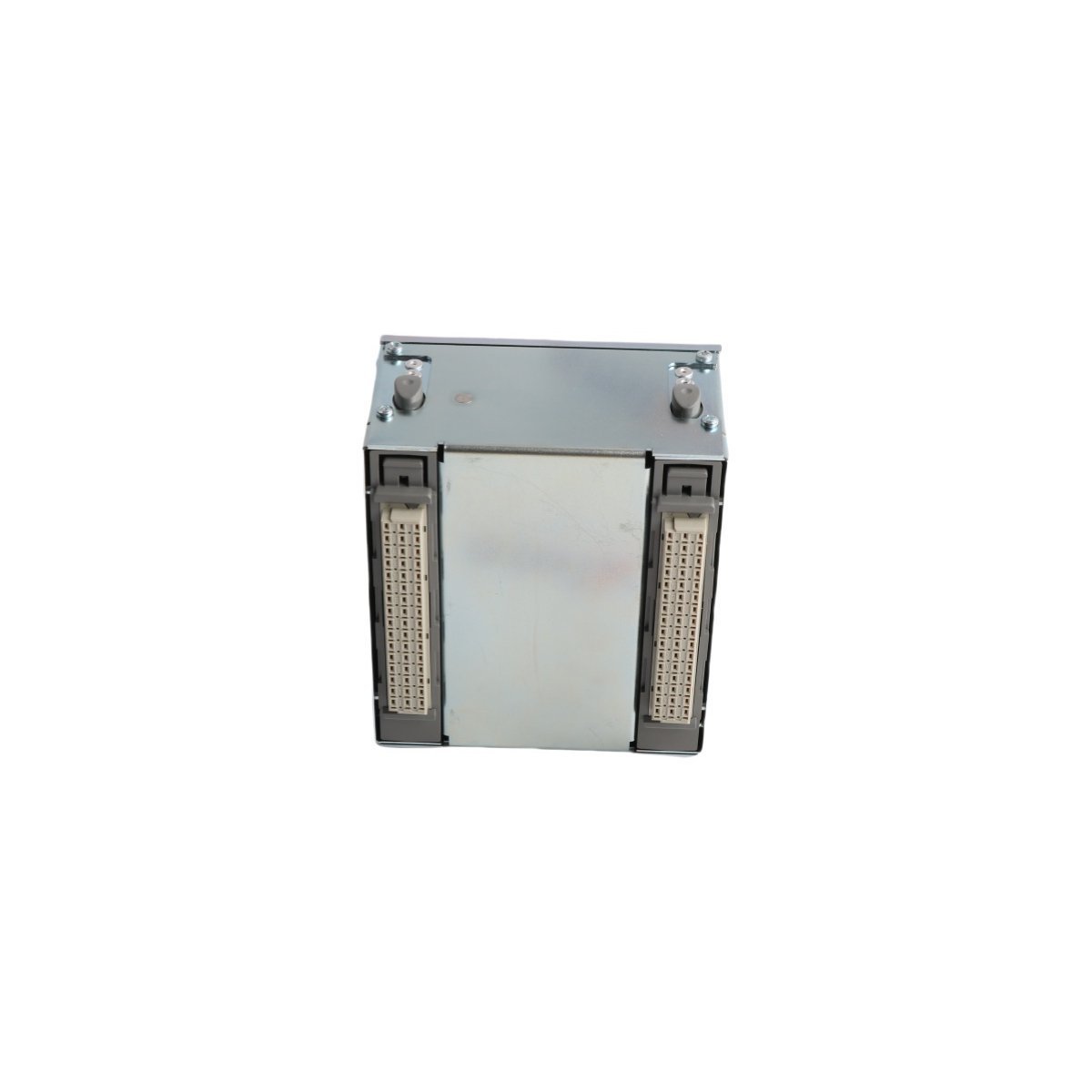

The ICS Triplex T8122 is a high-reliability Trusted TMR Processor Interface Adapter designed for fault-tolerant industrial control systems. It provides robust communication bridging, high-speed data transmission, and a durable aluminum housing to ensure continuous operation in safety-critical environments.
The ICS Triplex T8122 serves as a critical connectivity component within the Trusted Triple Modular Redundant (TMR) system architecture. This Processor Interface Adapter establishes a high-integrity communication bridge, enabling the main processor to interact seamlessly with the broader system backplane. By utilizing specialized TMR protocols, the module ensures that data remains synchronized and fault-tolerant across the entire control network.
Engineered specifically for high-availability industrial environments, the T8122 handles intensive data traffic while maintaining strict signal integrity. The hardware utilizes a robust aluminum alloy chassis, which effectively dissipates heat and protects internal circuitry against electromagnetic interference (EMI). Furthermore, this adapter supports rapid hot-swapping procedures, allowing maintenance teams to replace components without interrupting the active control process.
Consequently, the T8122 plays a vital role in safety-instrumented systems (SIS) and critical control applications. It provides the necessary physical and logical interfaces to support complex Ethernet routing and real-time diagnostics. Through its modular design, the adapter simplifies system expansion, ensuring that the Trusted platform can scale alongside evolving industrial requirements.
| Parameter | Specification |
|---|---|
| Model | 2094-BM02-S |
| Brand | Allen-Bradley |
| Origin | USA |
| Weight | 0.9 kg |
| Dimensions | 3.5 x 13 x 14.5 cm |
| Operating Temp | 0 to +50 deg C (Standard Industrial Range) |
| Power Consumption | 650 VDC nominal input / 115 Ohm internal shunt resistor |
| Module Type | Servo Drive (Axis Module) |
| Product Range | ControlLogix / Kinetix 6000 |
| System Classification | PLC Motion Control |
| Continuous Current | 10.3 A (RMS), 14.6 A (Sine Peak) |
| Velocity Loop Bandwidth | 500 Hz |
| Current Loop Frequency | 1300 Hz |
| Efficiency Rating | 98% |
The Emerson DeltaV SIS™ KJ3001X1-BH1 (12P0558X152) is a legacy, high-performance isolated I/O interface card engineered for critical process safety and Distributed Control Systems (DCS). Providing robust electrical isolation to prevent ground loops and voltage spikes, this module features a field circuit rating of 60 VDC at 1 A per channel, a LocalBus power draw of 150 mA at 12 VDC, and a specialized B5 mechanical terminal block keying system to prevent incorrect field installation. Built to withstand punishing industrial conditions, its IP20-rated assembly is certified to ISA-S71.04-1985 Class G3 corrosion resistance standards, ensuring stable, interference-free safety loop communication in harsh, highly corrosive processing environments.
The Emerson Ovation 1P00028G01 Remote Node Transition Panel provides robust signal routing and high-integrity electrical isolation for legacy Ovation Distributed Control Systems (DCS). Operating at 220V AC across an ultra-wide temperature range of -40°C to +85°C, this compact transition panel eliminates field line noise and ensures reliable, deterministic peer-to-peer communication between remote I/O nodes and central controllers in demanding industrial environments.
