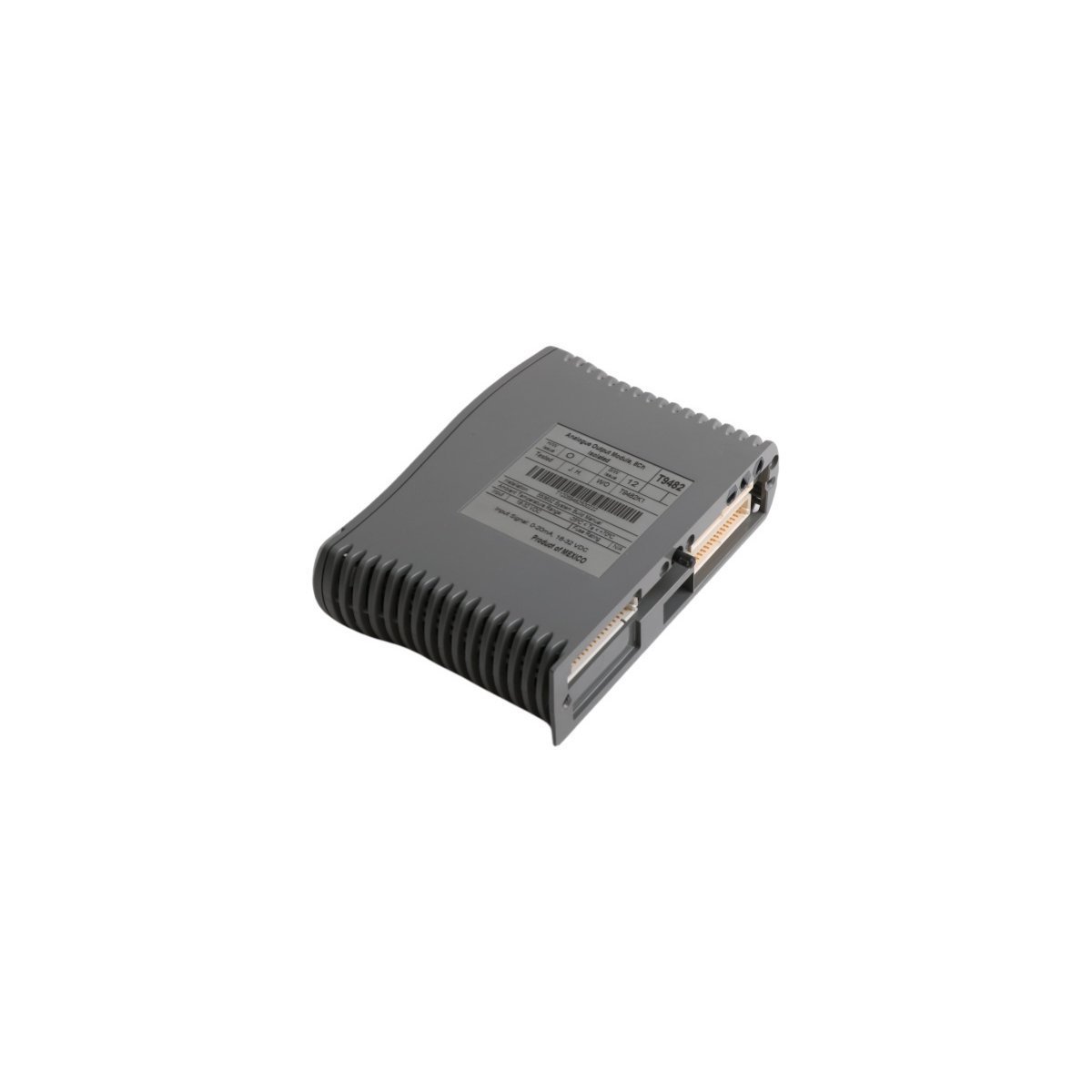

ICS Triplex T9482 Trusted 8-Channel Analogue Output Module

The ICS Triplex T9482 is a 4-20mA Analogue Output Module featuring 8 isolated channels and TMR architecture. Built for the Trusted Safety System, this module provides SIL 3 level fault tolerance and comprehensive diagnostic monitoring for critical industrial actuators and valves.

Technical Overview

The ICS Triplex T9482 is a high-integrity, fault-tolerant Analogue Output Module designed for the Trusted system environment. It provides eight independent, isolated channels for the precise control of field actuators, valves, and positioners in safety-critical applications. As a core component of Triple Modular Redundant (TMR) architectures, the T9482 ensures that a single point of failure within the module does not result in the loss of control or an unsafe process state.

Core Functional Features

TMR Architecture: The module utilizes a triple-modular redundant design, where internal voting logic ensures that the output signal remains accurate even if one internal circuit path fails.
Comprehensive Diagnostics: Every channel undergoes continuous self-testing, including “line monitoring” to detect open-circuit or short-circuit conditions in the field wiring.
High Isolation: To prevent electrical noise and ground loops from affecting the system logic, the T9482 provides 2500V peak galvanic isolation between the field-side electronics and the internal bus.
Hot-Swap Capability: Specifically designed for high-availability systems, the module supports hot-replacement, allowing technicians to swap units without interrupting the power or the control process.

Detailed Technical Specifications

Manufacturer: ICS Triplex (Rockwell Automation)
Model Identification: T9482
Product Series: Trusted System
Output Channels: 8 Individual Channels
Output Signal Range: 4-20 mA (Current Loop)
Resolution: 12-bit minimum
Response Time: Typically less than 10 ms for a 10% to 90% step change
Weight: 1.15 kg
Operating Temperature: -5°C to +60°C (23°F to 140°F)
Compliance: Designed for SIL 3 (Safety Integrity Level 3) applications

Industrial Implementation

The T9482 is predominantly utilized in sectors where operational uptime is directly linked to personnel safety and environmental protection. Therefore, it is essential for:

Safety Instrumented Systems (SIS): Controlling final elements in emergency shutdown (ESD) loops.
Turbomachinery Control: Governing fuel valves and steam actuators where high-speed, precise analog control is required.
Chemical Processing: Managing critical control valves in volatile chemical reactors.
Subsea Controls: Providing reliable signal output for remote hydraulic or electric actuators in offshore platforms.
