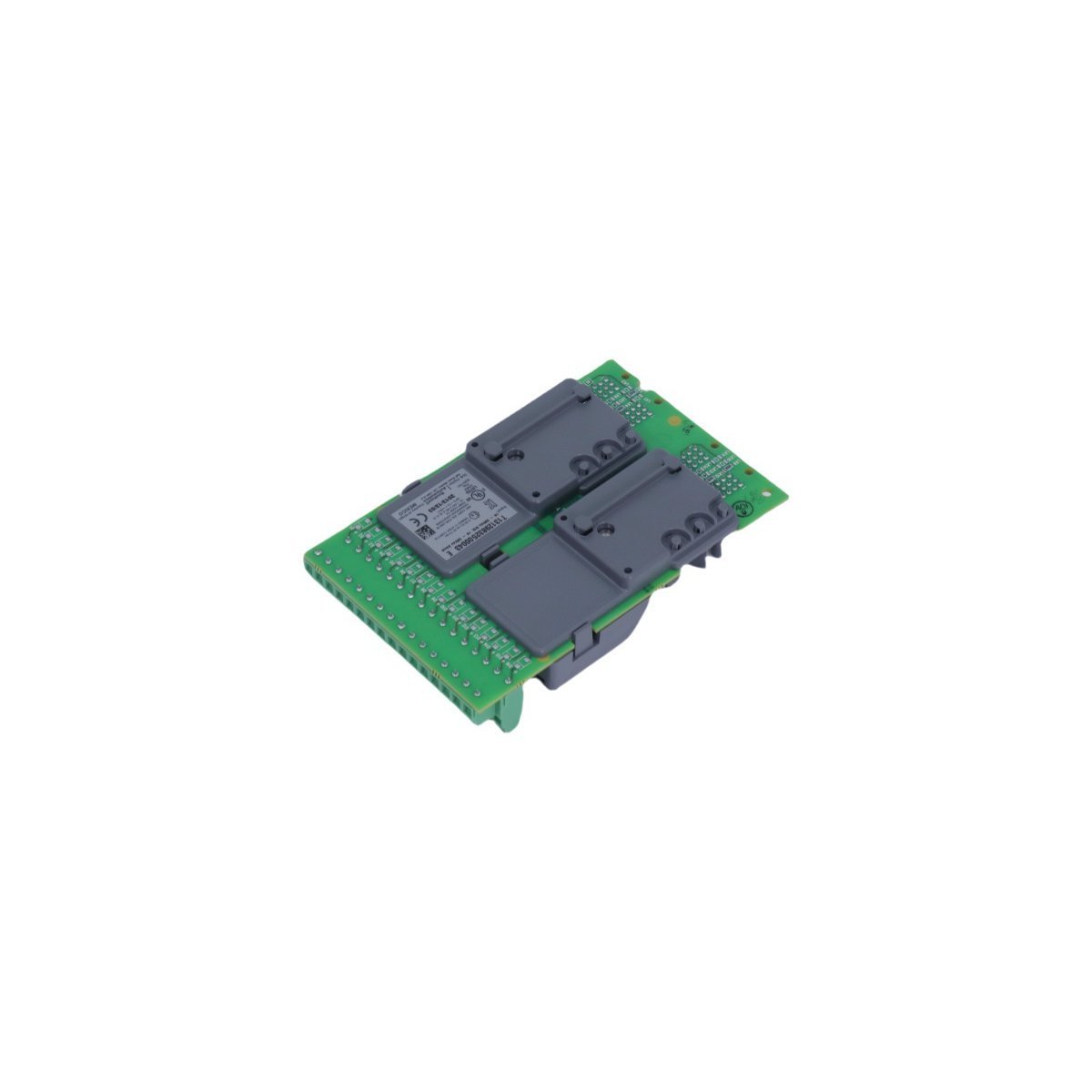

ICS Triplex AADvance T9832 Analogue Input Termination Assembly

Product Overview

The ICS Triplex T9832 functions as a high-integrity Analogue Input Termination Assembly (TA) within the AADvance Controller platform. This compact module provides the essential physical and electrical interface between field-mounted analogue sensors and the AADvance input modules. Because it supports the modular and distributed architecture of the AADvance system, the T9832 allows engineers to build flexible, safety-related control solutions that meet specific I/O density requirements. By acting as the primary landing point for field wiring, this assembly ensures that analogue signals transition into the control environment with maximum clarity and minimal interference.

Functional Capabilities

• Active Signal Routing: The T9832 actively routes analogue signals from the field to the AADvance input modules via its backplane connectors. This direct path maintains the precision of low-level signals, such as 4-20mA loops, throughout the transition.
• High-Speed Processing Support: Although the T9832 serves as a physical termination point, it facilitates the high-speed data acquisition capabilities of the AADvance core. Consequently, the system achieves rapid response times and smooth operation in complex, real-time industrial scenarios.
• Ruggedized Interface: ICS Triplex builds the T9832 to endure harsh industrial conditions, ensuring continuous operation with minimal maintenance. Its durable construction protects the termination points from mechanical vibration and thermal fluctuations common in process plants.
• Versatile Connectivity: The assembly features a robust communication interface that enables efficient data exchange across the network. Furthermore, this design allows for seamless integration with a wide range of field devices and third-party systems.
• Simplified Maintenance: Because the T9832 utilizes a clear, accessible terminal layout, technicians can perform routine inspections and wiring changes quickly. This “maintenance-friendly” design reduces the risk of wiring errors and minimizes potential system downtime.

Technical Specifications

• Brand: ICS Triplex (Rockwell Automation)
• Model Number: T9832
• Product Series: AADvance System
• Module Type: Analogue Input Termination Assembly (TA)
• Dimensions: 13.0 x 8.3 x 3.2 cm
• Net Weight: 0.16 kg
• Country of Origin: USA
• System Application: PLC / Distributed Control System (DCS)
• Discontinued Date: Dec 31, 2018 (Available as a legacy replacement part)

Primary Applications

Control engineers routinely specify the T9832 for safety-instrumented systems (SIS) and critical control applications in the oil and gas, chemical, and energy sectors. Because the AADvance system supports both non-safety and safety-critical functions, the T9832 becomes indispensable for facilities that require high-availability analogue monitoring. Additionally, its compact footprint makes it a preferred choice for offshore platforms and modular skid-mounted equipment where cabinet space is limited. Ultimately, the T9832 provides the reliable connectivity and electrical stability necessary to protect high-value industrial assets and ensure process continuity.
