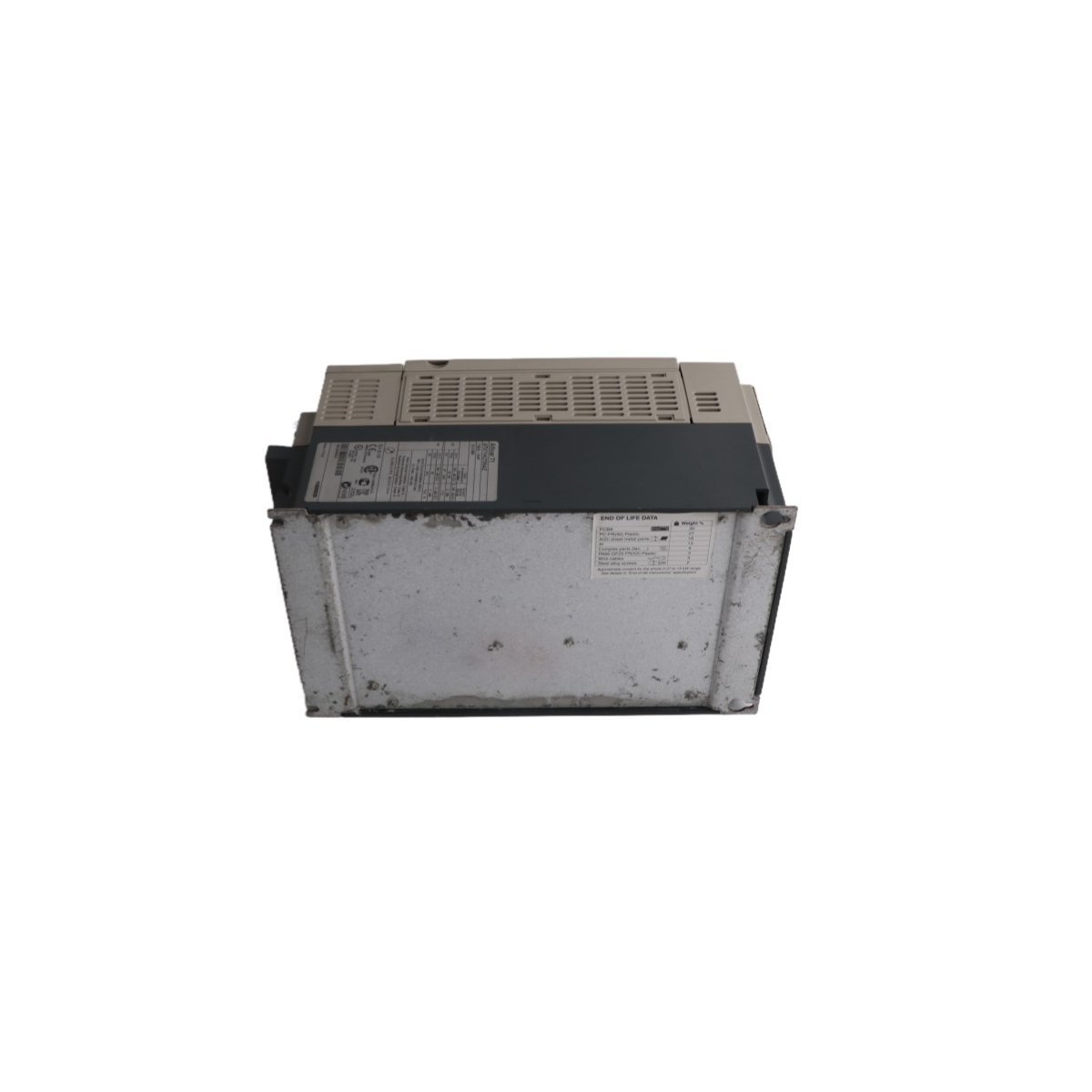

The Schneider Electric ATV71H075N4Z is a compact 0.75kW (1HP) Variable Speed Drive. This Altivar 71 model features integrated EMC filtering and dual communication protocols for 380-480V systems.
The Schneider Electric ATV71H075N4Z is a precision-engineered 0.75kW frequency inverter for three-phase asynchronous motors. This Altivar 71 series drive excels in high-torque industrial environments and complex process applications. It operates effectively on a supply voltage range of 380V to 480V AC. Furthermore, the unit includes an integrated EMC filter to mitigate electromagnetic interference. This specialized “Z” variant ships without a graphic display terminal to support cost-effective remote mounting.
| Attribute | Technical Data |
| Manufacturer | Schneider Electric |
| Model Number | ATV71H075N4Z |
| Rated Power | 0.75 kW (1 HP) |
| Line Current | 3A at 380V / 2.6A at 480V |
| Continuous Output Current | 2.3 A |
| Acoustic Noise Level | 43 dB |
| Net Weight | 3.2 kg |
| Product Dimensions | 130 x 230 x 175 mm |
Sophisticated control algorithms allow the ATV71H075N4Z to deliver smooth torque across all speed ranges. These functions reduce mechanical wear on coupled equipment and extend machinery lifespan. Moreover, the drive features built-in Modbus and CANopen communication ports. This connectivity enables seamless integration into distributed control systems and PLC networks. Engineers can also expand the unit with optional I/O or encoder interface cards. Consequently, the drive adapts easily to diverse automation architectures.
Hardware reliability remains a core focus of the Altivar 71 design philosophy. The ATV71H075N4Z monitors critical electrical parameters to prevent motor damage from overloads. Integrated safeguards also protect against phase loss and overvoltage conditions. This comprehensive protection strategy minimizes unplanned downtime in continuous production cycles. Additionally, the compact chassis optimizes space usage within industrial control cabinets. The drive maintains peak efficiency even in demanding process industries.
The ATV71H075N4Z provides versatile motor regulation for various utility and manufacturing sectors. It serves effectively in specialized textile machinery and material handling systems. Furthermore, the drive manages small-scale pumping and ventilation units with high precision. Its low noise output makes it suitable for environments requiring acoustic comfort. Many facilities utilize this model for its balance of power and compact footprint. It remains a dependable solution for high-performance motor control.
