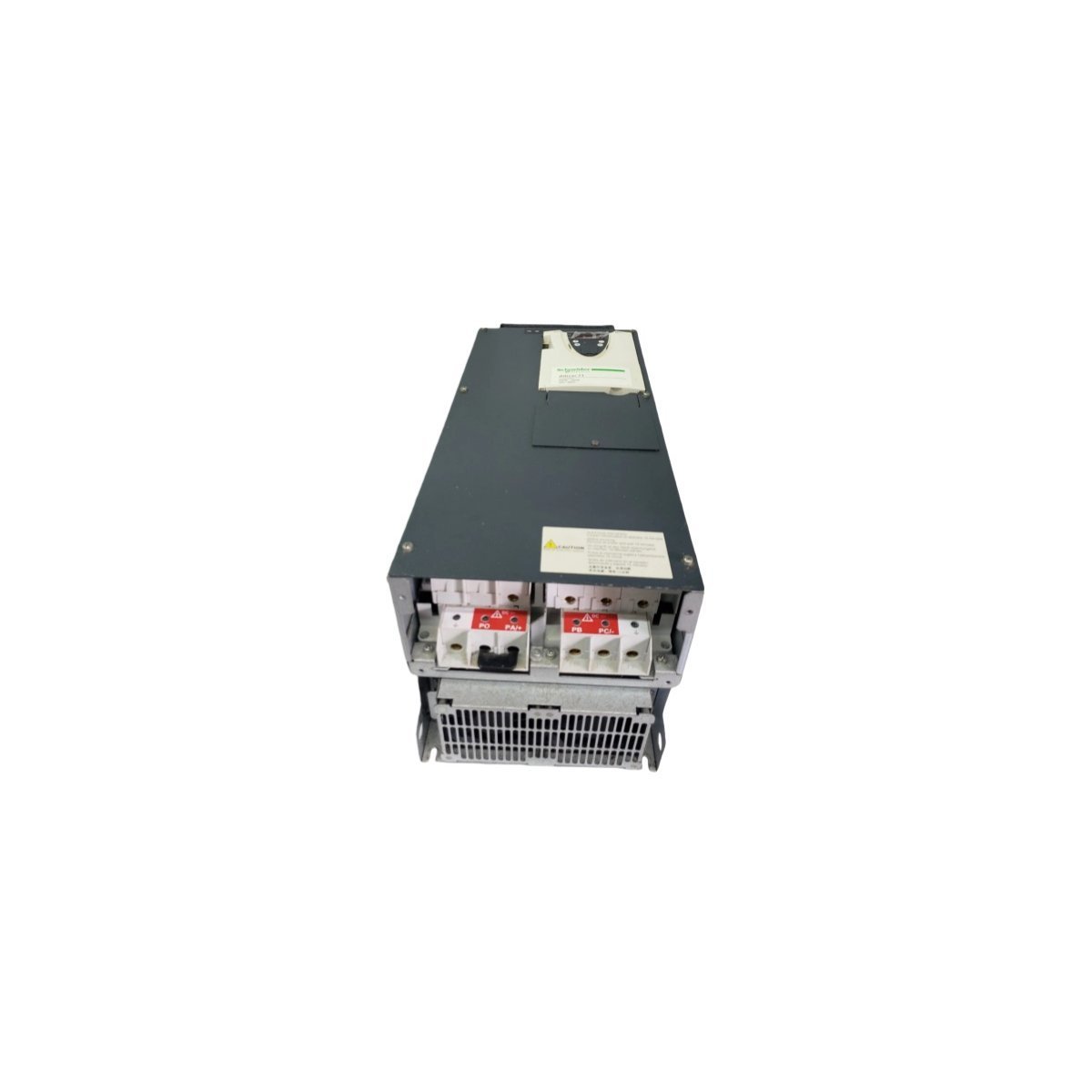

Schneider Electric ATV71HD30N4Z Altivar 71 Variable Speed Drive

Product Overview

Schneider Electric engineered the ATV71HD30N4Z as a high-performance variable speed drive to manage heavy-duty industrial motors. This unit belongs to the Altivar 71 series and delivers 30 kW (40 hp) of power for demanding applications. It operates seamlessly within a three-phase voltage range of 380V to 480V AC. Operators utilize this drive to achieve precise torque control and superior speed regulation in complex machinery. By integrating advanced control algorithms, this drive ensures maximum motor efficiency and minimizes mechanical stress across various process industries.

Technical Functionality and Design

The ATV71HD30N4Z utilizes sophisticated motor control profiles to handle diverse load conditions. It features Sensorless Flux Vector Control (SFVC) for high-torque performance without external sensors and supports full Flux Vector Control (FVC) when users require maximum precision with feedback. Furthermore, the manufacturer incorporates an Energy Adaptation (ENA) system. This technology actively manages unbalanced loads to maintain motor stability and protect internal components from electrical fluctuations. Because it carries an IP20/IP00 rating, technicians typically install this drive within protected electrical enclosures to ensure environmental safety.

Key Operational Characteristics

• Power Rating: Provides 30 kW (40 hp) for constant torque and high-performance applications
• Voltage Compatibility: Supports three-phase input from 380V to 480V AC at 50/60 Hz
• Control Precision: Executes high-speed motor management via customizable voltage/frequency ratios
• Advanced Safety: Implements integrated protection against phase loss, thermal overload, and short circuits
• Network Integration: Facilitates industrial communication through built-in Modbus and CANopen ports
• Thermal Management: Features optimized cooling paths to sustain performance during continuous operation

Primary Applications

The ATV71HD30N4Z excels in sectors where equipment requires high starting torque and precise movement. Automation engineers frequently deploy this model in the following areas:

• Material Handling: Powers high-capacity conveyors, cranes, and hoisting systems
• Process Machinery: Controls mixers, extruders, and grinders that face varying load resistances
• Fluid Management: Regulates high-pressure pumps and large-scale industrial fans
• Packaging and Textile: Drives automated production lines requiring synchronized speed adjustments
