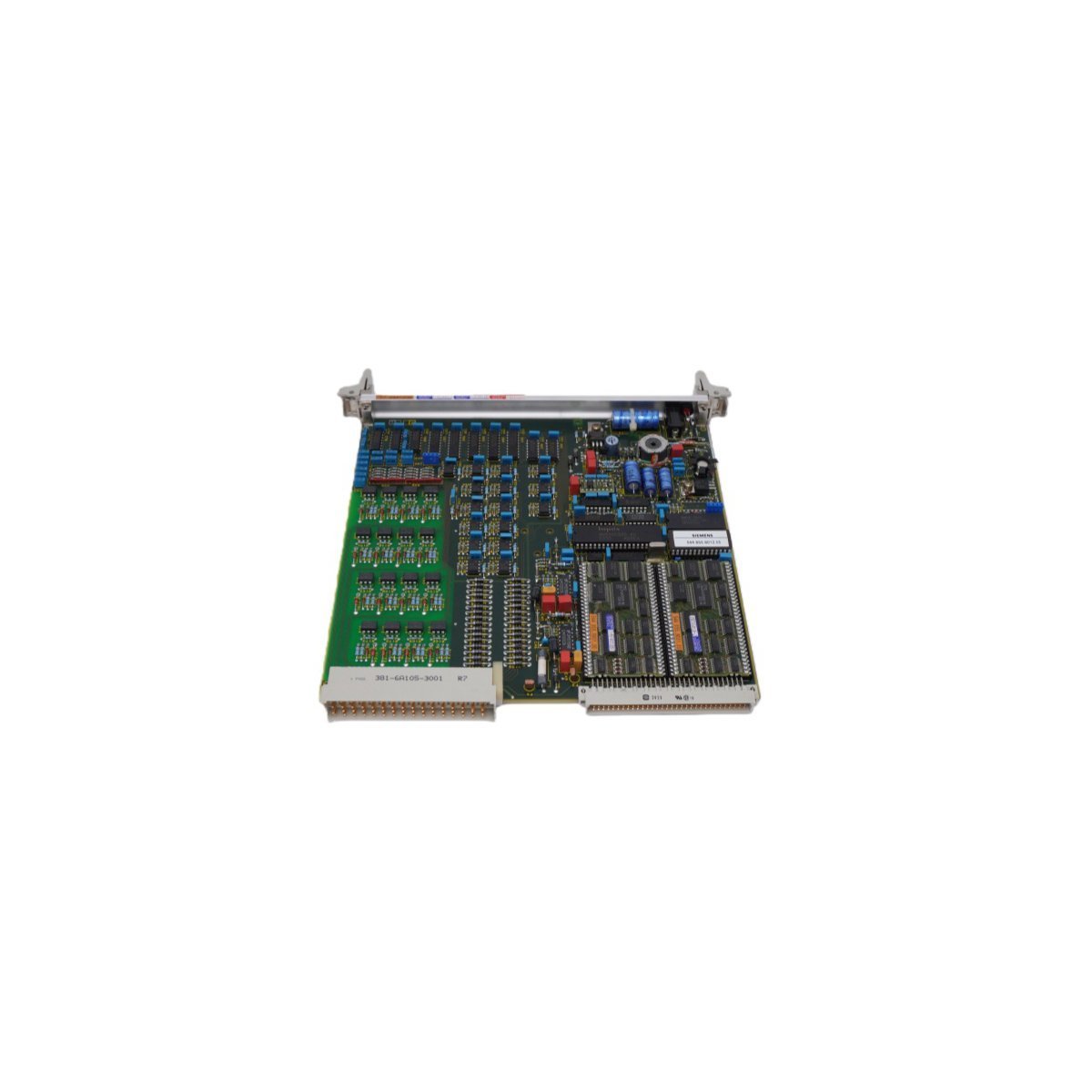

Siemens 6DP1511-8AA FUM 511 Binary Signal Coupling Module

Technical Overview

The Siemens 6DP1511-8AA, primarily identified as the FUM 511 module within the TELEPERM XP automation framework, functions as a high-density binary signal coupling interface. This component enables seamless communication between the central processing unit and digital field devices by providing 16 galvanic isolated binary inputs alongside 16 binary outputs. Engineers utilize this module to consolidate a large volume of discrete signals within a single hardware footprint, thereby streamlining the architecture of industrial control cabinets.

Functional Capabilities and Features

Advanced signal integrity defines the operation of the 6DP1511-8AA. Each input channel utilizes optocouplers to ensure complete electrical isolation, which prevents field-side surges from compromising the internal system logic. This robust protection is essential for maintaining process stability in environments prone to electromagnetic interference.

Furthermore, the output stage offers enhanced flexibility for various operational requirements. Beyond standard steady-state switching, the module supports flashing frequencies for visual annunciation and status signaling. Each output channel provides a driving capacity of 120 mA, making it suitable for low-power actuators and control tile indicators. Because the module prioritizes dependable signal conditioning, it remains a preferred choice for non-safety-related control tasks and console monitoring.

Core Technical Characteristics

• Manufacturer: Siemens
• Module Series: TELEPERM XP / FUM 511
• Model Identification: 6DP1511-8AA
• Binary Inputs: 16 Channels (Isolated via optocouplers)
• Binary Outputs: 16 Channels (Rated at 120 mA per output)
• Operational Modes: Steady-state output or selectable flashing frequencies
• Physical Protection: Galvanic isolation between field signals and backplane
• Application Scope: Console control, signal coupling, and general automation interfacing
• Weight: 0.95 kg
• Dimensions: 2.5 cm x 5.1 cm x 83.8 cm

Application and Installation

This module excels in complex automation environments where high-channel density is required for digital monitoring. While primarily associated with the TELEPERM XP system, its versatility allows for broad integration into various PLC-based infrastructures for signal conditioning. The 6DP1511-8AA is specifically designed for quick installation and reliable performance in demanding industrial settings, ensuring that binary data acquisition remains accurate across long-term service cycles.
