SKU: 6ES7134-4FB00-0AB0

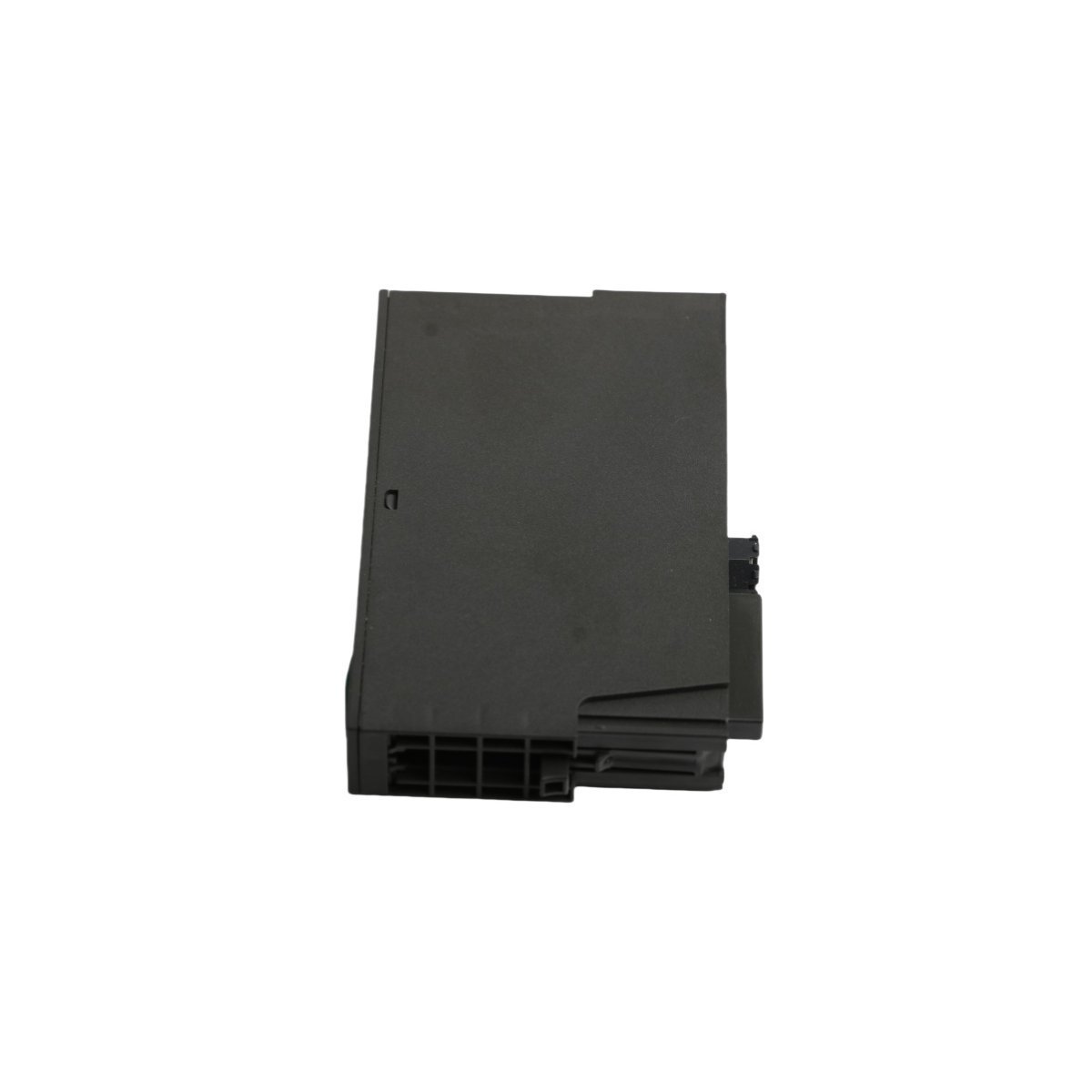

Siemens 6ES7134-4FB00-0AB0 Analog Input Module
The Siemens 6ES7134-4FB00-0AB0 is a 2-channel analog voltage input module for ET 200S. It features 13-bit resolution and supports ±10V, ±5V, and 1-5V ranges.
The Siemens 6ES7134-4FB00-0AB0 is a high-performance analog input expansion for the SIMATIC ET 200S platform. This electronic module provides two channels for precise voltage signal acquisition in distributed I/O configurations. It effectively converts various analog signals into digital data for the central controller. Its ultra-slim 15mm profile allows for high-density installation within compact industrial cabinets. While officially discontinued by the manufacturer, it remains a critical component for maintaining legacy automation systems.
This module ensures reliable data collection for process monitoring and control loops. It features high-speed conversion rates and versatile input ranges to meet diverse industrial requirements. Furthermore, integrated safety features protect the unit against common electrical faults during operation. This hardware is essential for facilities using the proven SIMATIC DP infrastructure.
Technical Specifications and Data
| Feature | Specification Details |
| Brand | Siemens |
| Model Number | 6ES7134-4FB00-0AB0 |
| Series | SIMATIC ET 200S |
| Input Type | Analog Voltage (2 Channels) |
| Voltage Ranges | ±10V, ±5V, 1-5V |
| Resolution | 13 bits + sign (±10V), 12 bits + sign (±5V), 12 bits (1-5V) |
| Conversion Time | 65 ms per channel |
| Module Width | 15 mm |
| Weight | 0.05 kg |
Key Technical Characteristics
Multi-Range Voltage Support
The module accommodates three distinct voltage input standards for maximum flexibility. Users can configure the hardware for ±10V or ±5V bipolar signals. Additionally, it supports the common 1-5V unipolar standard used in many sensor types. This versatility allows a single module type to serve various field device applications.
Efficient Signal Processing
Each channel operates with a dedicated conversion cycle of approximately 65 milliseconds. This speed provides responsive data updates for the PLC program. The 13-bit resolution ensures high granularity for sensitive measurement tasks. Consequently, the system can detect very small changes in process variables.
Integrated Diagnostic Features
The 6ES7134-4FB00-0AB0 includes a front-facing SF LED for group fault identification. This indicator provides immediate visual feedback during hardware or wiring failures. The system also communicates specific error states to the master controller. These features significantly reduce the time required for field troubleshooting.
