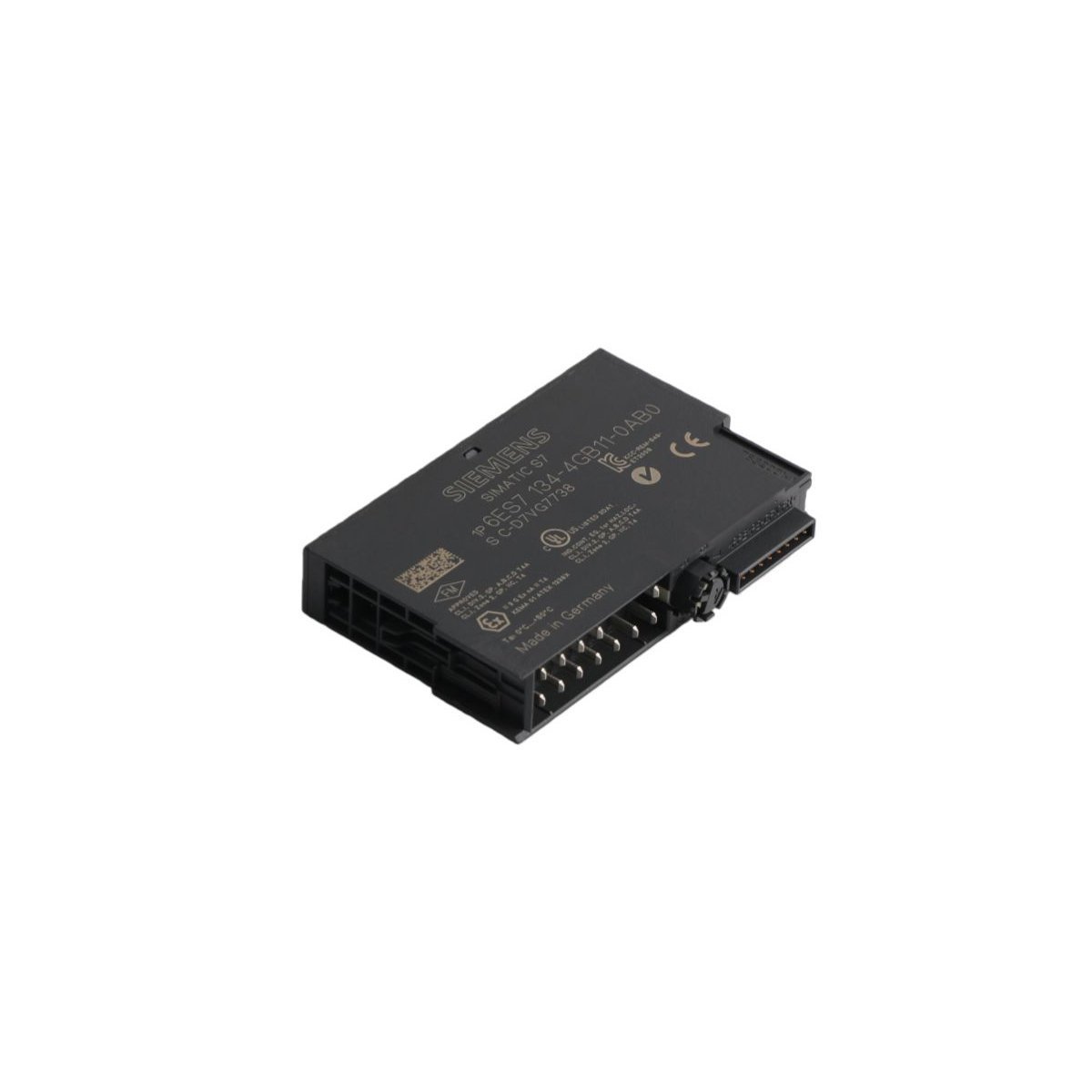

Siemens 6ES7134-4GB11-0AB0 Analog Input Module

The Siemens 6ES7134-4GB11-0AB0 is a high-precision analog input expansion for the SIMATIC ET 200S distributed I/O series. This module specializes in current measurement for 4-wire transmitters in industrial automation. It offers two isolated channels within a compact 15mm housing to save cabinet space. Engineers utilize this module for sensitive process monitoring where signal accuracy is paramount. Furthermore, the unit integrates easily into PROFIBUS or PROFINET stations via standard interface modules.

Because industrial environments often contain significant electrical interference, this module includes advanced noise suppression. It effectively handles standard current signals like 4 to 20 mA and ±20 mA. The hardware converts these physical signals into 13-bit digital values for the PLC. Consequently, operators receive highly granular data for precise control loops. The 6ES7134-4GB11-0AB0 provides a reliable interface between field sensors and the central controller.

Technical Specifications and Performance Data

Core Functional Characteristics

High-Resolution Data Acquisition

The module translates current signals into digital format with 13-bit plus sign resolution. This high level of detail allows the PLC to detect minute changes in process variables. Additionally, the unit supports both unipolar and bipolar current measurements. This versatility makes it compatible with many different sensor brands and types. The 65 ms conversion time ensures that data stays current for real-time applications.

Superior Signal Integrity

Signal quality remains a priority for the 6ES7134-4GB11-0AB0 design. It features 70 dB common-mode rejection to eliminate background electrical noise. Moreover, the crosstalk suppression of -50 dB prevents interference between the two channels. These features ensure that measurements stay accurate even in harsh factory settings. The electrical isolation also protects the internal bus from potential field-side voltage spikes.

Comprehensive System Diagnostics

Maintenance teams benefit from the integrated System Fault (SF) LED on the front panel. This indicator provides immediate visual feedback during wire breaks or measurement overflows. Furthermore, the module transmits diagnostic data directly to the TIA Portal or Step 7 software. This connectivity allows for remote troubleshooting and reduces manual inspection time. Therefore, the module contributes significantly to overall system uptime and plant reliability.
