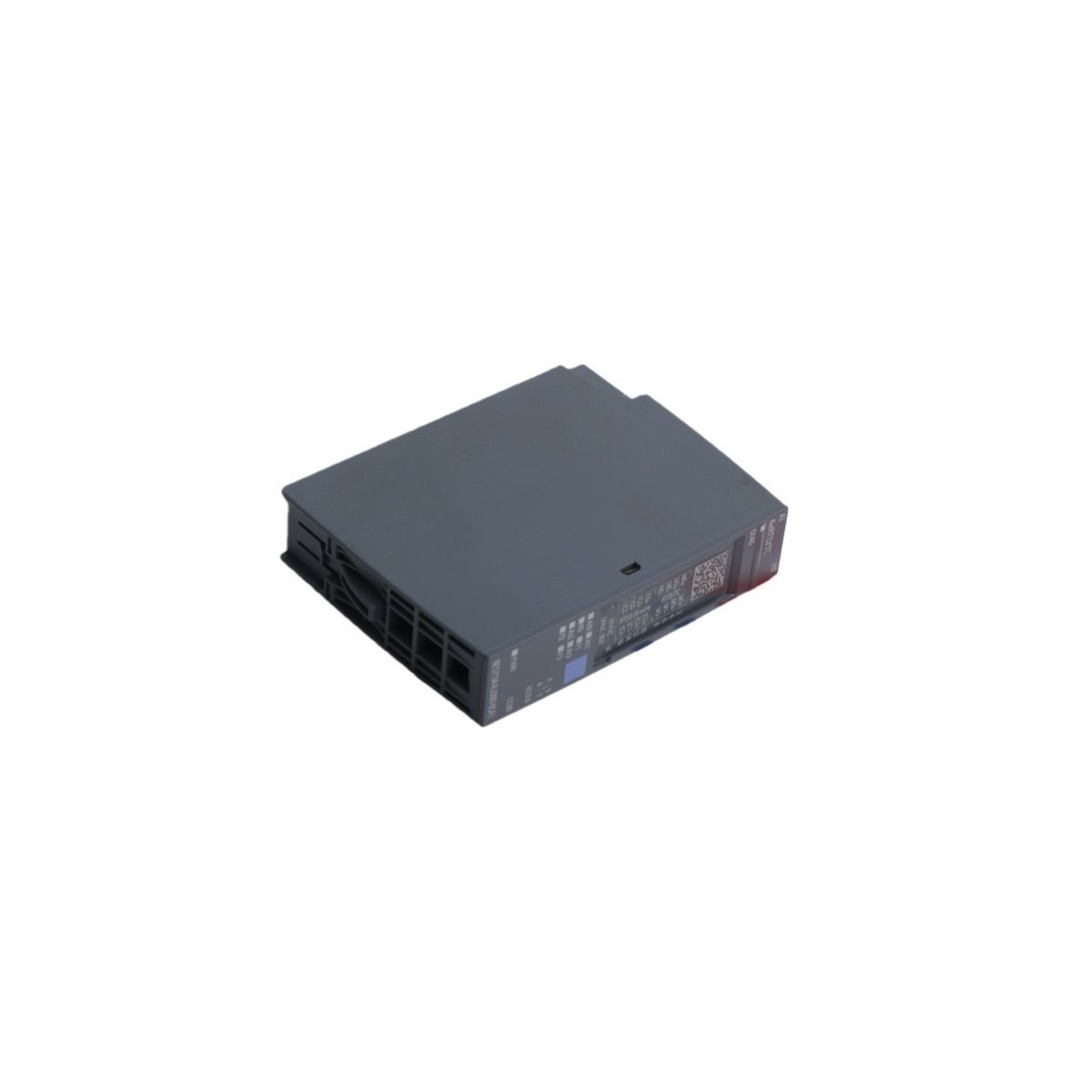

Siemens SIMATIC Analog Input Module 6ES7134-6JD00-0CA1

Product Overview

The Siemens 6ES7134-6JD00-0CA1 stands as a high-precision analog input module within the SIMATIC ET 200SP distributed I/O family.¹ This “High Feature” (HF) module specifically targets temperature sensing, providing four channels for Resistance Temperature Detectors (RTD) and Thermocouples (TC).² It delivers 16-bit resolution and a high accuracy of $\pm$0.1%, making it an essential component for industries requiring tight thermal regulation.

Advanced Temperature Measurement Capabilities

This module provides the flexibility required to interface with a wide variety of industrial temperature sensors.

• Support Diverse Sensor Types: The module accepts signals from standard RTDs (like Pt100/Pt1000) and various Thermocouple types (including Type J, K, T, E, and N).
• Eliminate Lead Resistance: For RTD measurements, the module supports 2-, 3-, and 4-wire connection schemes.³ Using 4-wire technology allows the module to cancel out the resistance of long cable runs, ensuring the PLC receives the true temperature value.
• Cold Junction Compensation: When using thermocouples, the module handles internal or external cold junction compensation to maintain measurement integrity across fluctuating ambient temperatures.⁴

System Integration and Diagnostics

Siemens designed the 6ES7134-6JD00-0CA1 to provide “High Feature” intelligence that simplifies both installation and troubleshooting.

• Facilitate Proactive Maintenance: The module executes channel-level diagnostics to detect wire breaks, short circuits, and overflow/underflow conditions.⁵ This allows operators to identify a failing sensor before it causes a process shutdown.
• Modular Compatibility: The unit fits into standard ET 200SP BaseUnits (Type A0 or A1).⁶ Its CC00 color coding helps technicians quickly verify that the module matches its corresponding terminal block during assembly.⁷
• Optimize Data Flow: With its 16-bit resolution, the module converts micro-volt or resistance changes into precise digital values, allowing for granular control in PID loops and process monitoring.

Primary Industrial Applications

The high accuracy and rugged build of this module make it ideal for:

• Food and Beverage: Monitoring pasteurization and sterilization temperatures.
• Chemical Processing: Regulating exothermic reactions in reactor vessels.
• Plastic Injection Molding: Ensuring precise heat control for consistent product quality.
• HVAC Systems: High-accuracy climate monitoring in cleanrooms or data centers.

Technical Specifications

• Order Number: 6ES7134-6JD00-0CA1
• Product Series: SIMATIC ET 200SP⁸
• Module Type: Analog Input (AI 4xRTD/TC High Feature)⁹
• Inputs: 4 Channels
• Resolution: 16-bit
• Measurement Accuracy: $\pm$0.1%
• Connection Support: 2-, 3-, and 4-wire RTD connections
• BaseUnit Required: Type A0 or A1 (Color Code CC00)
• Weight: 0.95 kg
• Dimensions: 2.5 x 5.1 x 83.8 cm
