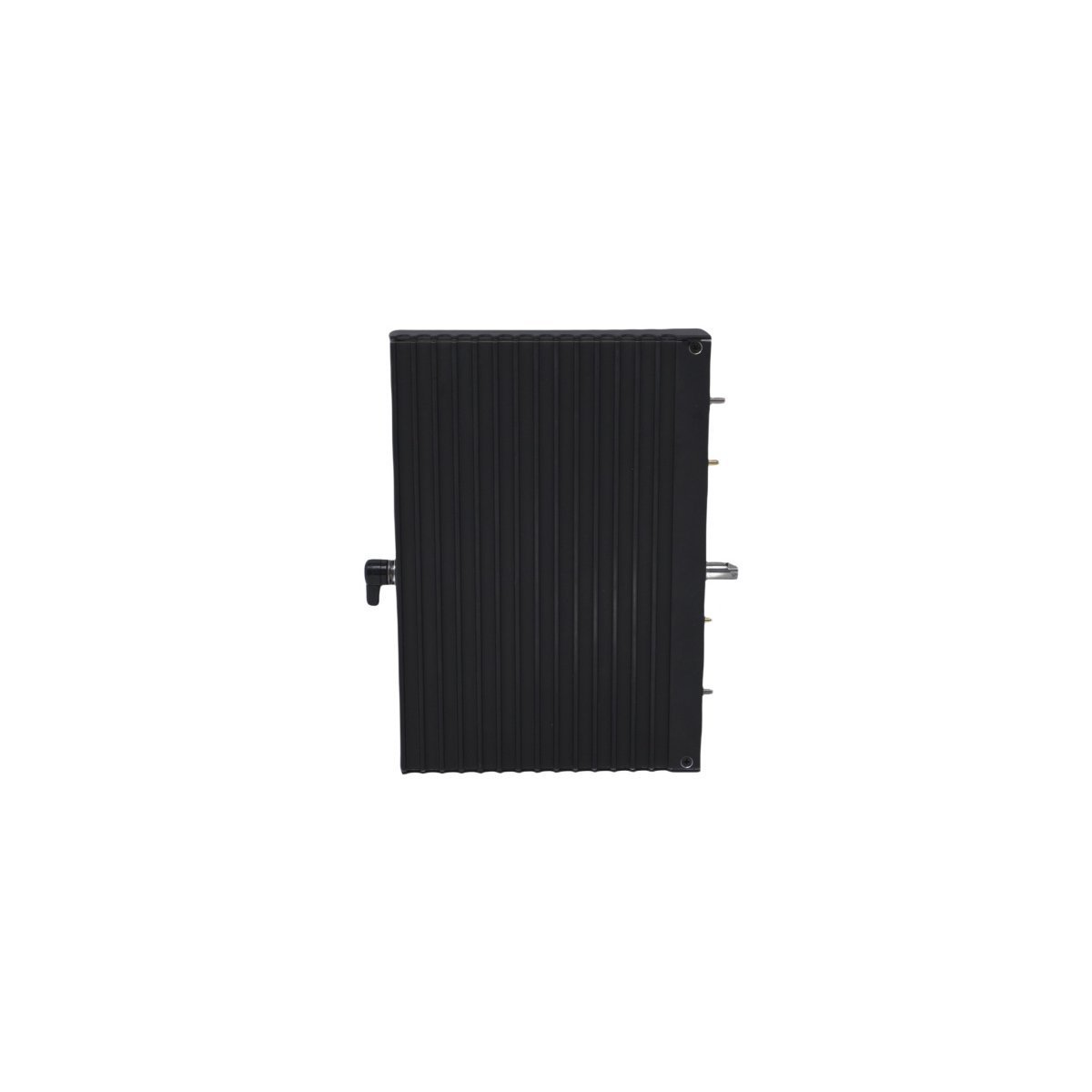

Triconex AI3351 Analog Input Module

High-Integrity Signal Acquisition Overview

The Triconex AI3351 is a high-precision Analog Input module specifically engineered for the Tricon Triple Modular Redundancy (TMR) architecture. This module serves as the critical interface between field-mounted analog sensors—such as pressure transmitters, flow meters, and temperature transducers—and the safety system’s Main Processors. By utilizing three independent input paths for every signal, the AI3351 ensures that no single point of failure can cause a false trip or, more importantly, a failure to trip. The module converts traditional 4–20 mA or 0–10 V DC signals into digital data with extreme reliability, making it a standard choice for SIL 3 safety loops in hazardous industrial environments.

Primary Technical Specifications

• Manufacturer: Triconex (Schneider Electric)
• Model Number: AI3351
• Module Type: TMR Analog Input Module
• Signal Range: 4–20 mA or 0–10 V DC (Programmable)
• Input Impedance: 250 ohms (for current loops)
• Resolution: 12-bit or better (depending on system version)
• Architecture: Triple Modular Redundancy (TMR)
• Nominal Supply Voltage: 24 VDC
• Weight: 1.28 kg
• Dimensions: 4.5 cm x 18.8 cm x 21.7 cm
• Safety Rating: SIL 3 Capable
• Origin: USA

Advanced TMR Validation and Diagnostics

The defining characteristic of the AI3351 is its fault-tolerant processing. Each of the module’s channels is internally split into three separate legs. Each leg performs its own analog-to-digital (A/D) conversion and sends the resulting value to the three Main Processors via the TriBus. The processors then use a sophisticated “mid-value selection” algorithm to determine the most accurate process variable. Furthermore, the AI3351 features extensive self-diagnostics; it can detect and isolate faults in individual input legs, signal wires, or A/D converters while the module continues to operate without interruption. This capability allows for “hot-swapping” the module under power if a fault is detected, ensuring 100% uptime for the safety system.

Typical Industrial Applications

• Safety Instrumented Systems (SIS): Monitoring critical reactor pressures and temperatures to trigger Emergency Shutdowns (ESD).
• Fire and Gas (F&G) Systems: Interfacing with toxic or combustible gas detectors to initiate mitigation sequences.
• Burner Management Systems (BMS): Providing precise fuel and air flow data for safe combustion control in large furnaces.
• Critical Process Control: Managing high-value production loops where measurement drift or failure results in significant economic loss.
