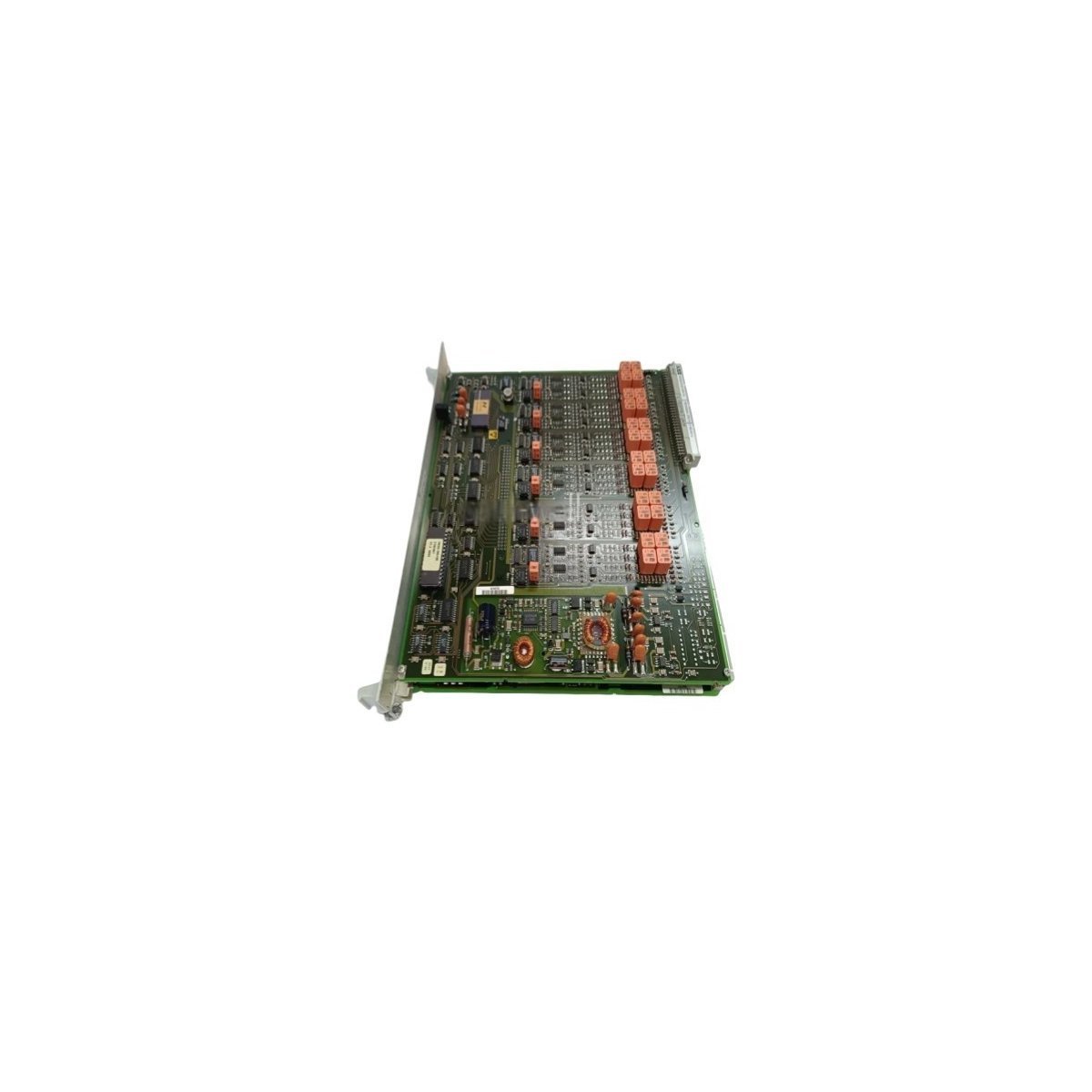

ABB HESG324015R1 Procontic b Analog Input Module

Technical Overview

The ABB HESG324015R1 (HE010207-306/10) functions as a high-precision analog input interface designed for the legacy Procontic b Distributed Control System (DCS). This module converts continuous physical signals from field sensors—such as pressure transducers, thermocouples, and flow meters—into digital data that the central processor can interpret. By utilizing advanced semiconductor filtering, the module ensures high signal-to-noise ratios, which are critical for maintaining accuracy in electrically turbulent industrial environments.

Core Technical Characteristics

• Brand: ABB
• Model Number: HESG324015R1
• Alternative Identifiers: HE010207-306/10 / HESG216880/E
• Product Series: Procontic b
• Module Category: Analog Input Module / Processor Unit Relay Card
• Country of Origin: Sweden
• Physical Dimensions: 18 mm x 255 mm x 261 mm
• Net Weight: 0.36 kg
• System Compatibility: ABB Procontic b DCS / Industrial Automation Networks
• Mounting Type: Rack-based installation

Robust Hardware Design and Scalability

ABB engineered the HESG324015R1 with a modular architecture that prioritizes system scalability. Because the card utilizes a slim form factor, users can populate control racks densely to maximize I/O capacity without increasing the system footprint. Furthermore, the robust mechanical construction protects the delicate internal relay circuitry from high-vibration environments. An integrated cooling design manages thermal dissipation efficiently, allowing the module to maintain stable performance during continuous 24/7 operation.

Diagnostics and Maintenance

To minimize operational downtime, the HESG324015R1 incorporates intelligent diagnostic tools. These internal routines monitor the integrity of the input channels in real-time, identifying potential faults before they lead to system failure. This predictive capability supports proactive maintenance strategies, ensuring that manufacturing processes remain uninterrupted. Since the module complies with rigorous international safety standards, it provides a secure link for data acquisition in high-stakes sectors such as power generation and chemical processing.

Application and Integration

Operators typically deploy this Analog Input Module in environments requiring precise measurement and control. The HESG324015R1 serves as an essential bridge for feedback loops, allowing the DCS to make micro-adjustments to process variables. Whether it is monitoring vessel temperature or regulating fluid levels, the module delivers the high-speed data sampling required for modern automation efficiency.
