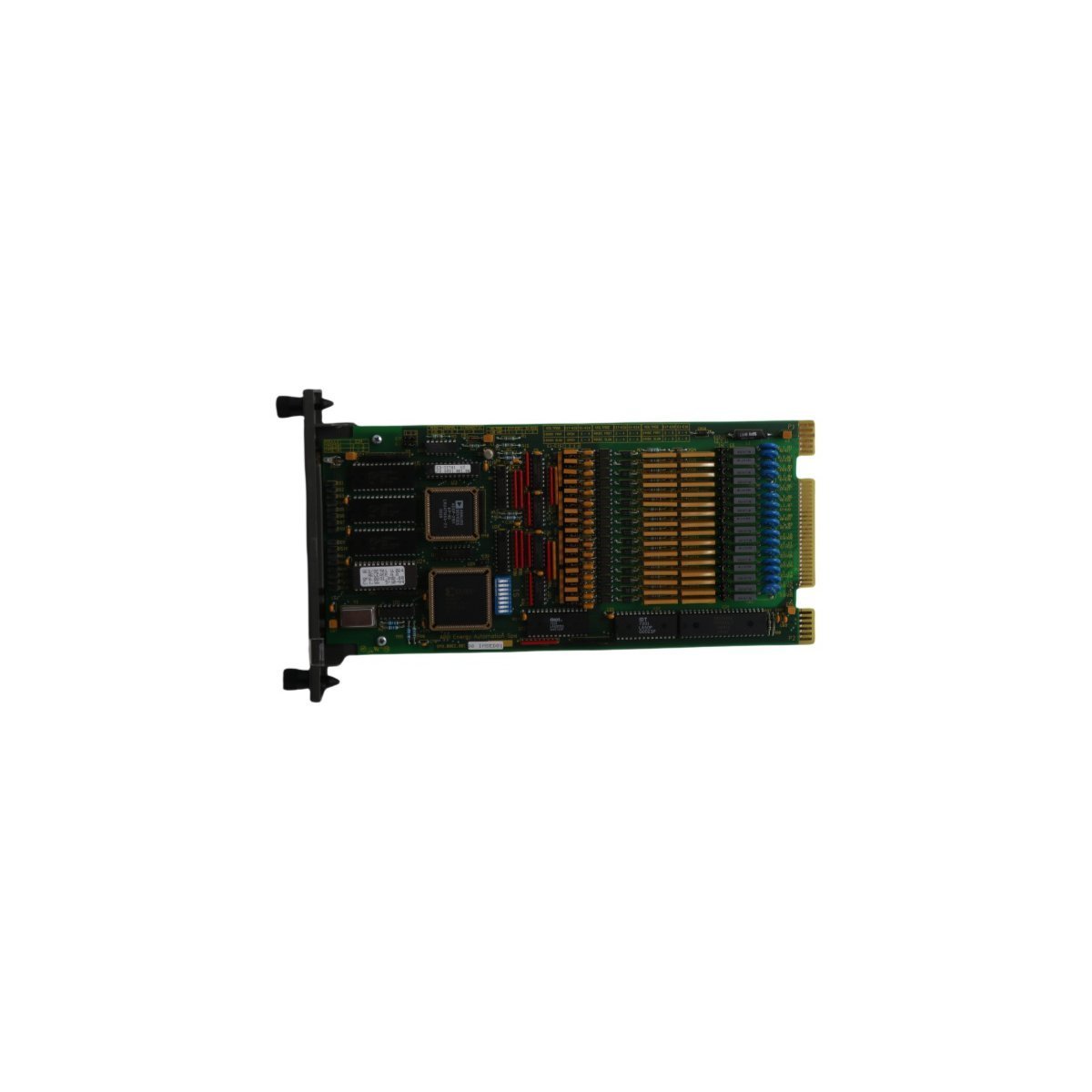

ABB IMSED01 Sequence of Events High-Resolution Digital Input Unit
The ABB IMSED01 is a 16-channel Sequence of Events (SOE) module for Symphony Harmony Rack systems. It provides high-resolution time-stamping for digital inputs, enabling precise fault diagnostics and process monitoring in critical DCS applications.
Product Overview
The ABB IMSED01 is a high-precision Sequence of Events (SOE) digital input module designed for the Symphony Harmony Rack (HR) series. It enables critical time-stamping of digital state changes with millisecond accuracy to support root-cause analysis in complex industrial processes.
Product Features and Technical Functions
The IMSED01 module functions as a specialized data acquisition interface that monitors 16 discrete digital inputs. Unlike standard digital input cards, this module prioritizes chronological accuracy, capturing event transitions and assigning precise timestamps before transmitting the data to the controller.
- High-Resolution Time Stamping:Â The hardware records event transitions at the source, which ensures a precise chronological record of system alarms and state changes across the entire DCS network.
- Multi-Channel Monitoring:Â Sixteen independent digital input channels allow the module to track multiple sensors, limit switches, and relay contacts simultaneously.
- Industrial Network Integration:Â While primarily used in Symphony Harmony architectures, the module supports advanced communication services including Ethernet routing for seamless data flow to higher-level management systems.
- Operational Reliability: The robust circuitry performs consistently within an ambient temperature range of -20°C to +70°C, providing stability in unconditioned industrial environments.
- Efficient Power Design:Â The module minimizes thermal load within the rack through low power consumption, effectively extending the lifespan of adjacent electronic components.
- Streamlined Installation:Â The panel-mount design and compact form factor facilitate rapid deployment in high-density Harmony Rack assemblies.
Technical Specifications
| Attribute | Specification |
| Manufacturer | ABB |
| Model Number | IMSED01 |
| Product Family | Symphony Harmony Rack (HR) |
| Module Type | Sequence of Events (SOE) Digital Input |
| Input Channels | 16 Discrete Inputs |
| System Architecture | Distributed Control System (DCS) |
| Operating Temperature | -20°C to +70°C |
| Dimensions | 17.8 x 5.1 x 33.0 cm |
| Net Weight | 0.4 kg |
| Country of Origin | Sweden |
Application Fields
Engineers deploy the IMSED01 in environments where the exact timing of events is critical for safety and diagnostics. Typical applications include:
- Power plant turbine trip analysis and chronological fault recording.
- Substation automation for monitoring protective relay operations.
- Oil and gas refinery emergency shutdown (ESD) system logging.
- Large-scale manufacturing processes requiring detailed alarm sequence tracking.
