  4. Emerson EPRO PR6426/000-131 CON041 Eddy Current Displacement Sensor
Sale!
SKU: PR6426/000-131 CON041

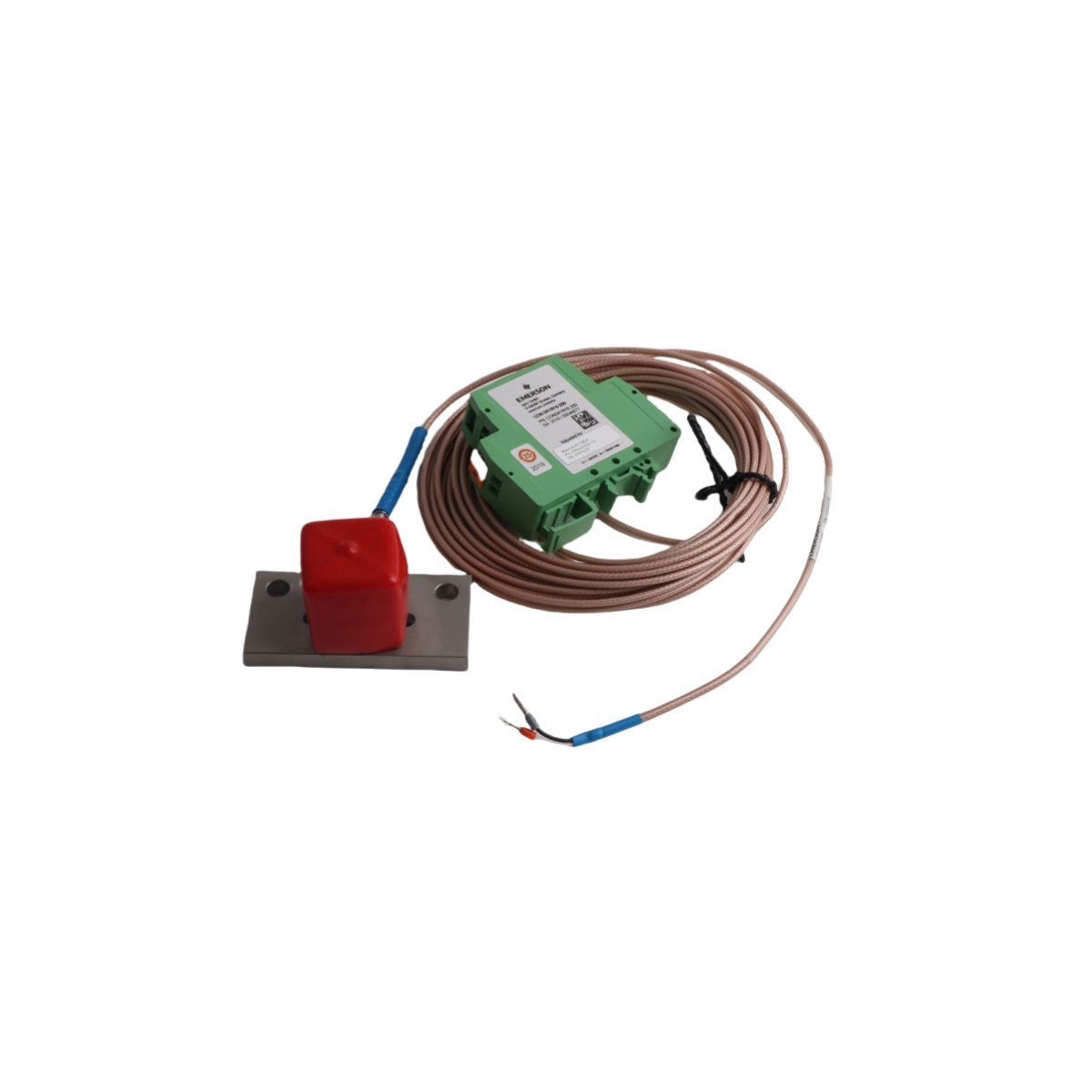

Emerson EPRO PR6426/000-131 CON041 Eddy Current Displacement Sensor

The Emerson PR6426/000-131 (CON041) is a high-performance eddy current sensor designed for non-contact vibration and displacement monitoring. Featuring a rugged stainless steel design and high-frequency response, it provides precise shaft position data for critical rotating machinery in power generation and petrochemical facilities.

Request a Quote

Product Description

The Emerson PR6426/000-131 operates as a high-integrity inductive sensor within the EPRO product family, specifically engineered for non-contact measurement of vibration and shaft position. By generating an electromagnetic field at the probe tip, this sensor detects minute changes in the distance to a conductive target. Because critical machinery like steam turbines and high-speed compressors requires constant oversight, this sensor provides the sub-micron resolution necessary for the Distributed Control System (DCS) to identify mechanical instability before it leads to equipment failure.

Furthermore, the CON041 configuration features a specialized cable length and connector interface optimized for large-scale industrial installations. The sensor utilizes advanced temperature compensation circuitry to ensure that thermal fluctuations within a turbine housing do not skew measurement accuracy. Since the PR6426/000-131 features a hermetically sealed stainless steel body, it resists the corrosive effects of moisture and hot lubricating oils. Consequently, it delivers a stable and linear voltage output that allows reliability teams to perform detailed frequency analysis and orbit plotting of rotating shafts.

Key Technical Characteristics

  • Manufacturer: Emerson (EPRO Series)
  • Model Identification: PR6426/000-131
  • Order Designation: CON041
  • Measurement Principle: Non-contact Eddy Current
  • Static/Dynamic Range: Typically up to 4.0 mm (varies by target material)
  • Frequency Response: 0 Hz to 10 kHz (suitable for high-speed machinery)
  • Housing Material: Stainless steel with high-grade PPS tip
  • Environmental Protection: IP66/IP68 rated for immersion in oil and water
  • Operating Temperature: Maintains precision from -35°C up to +150°C
  • Compatibility: Integrates with Emerson AMS 6500 and DeltaV monitoring systems

Industrial Applications

Vibration analysts and instrumentation engineers deploy the PR6426/000-131 across heavy industrial sectors to monitor asset health. Specifically, the sensor manages the following critical tasks:

  • Radial Shaft Vibration: Continuous measurement of shaft movement within fluid-film bearings to detect rotor imbalance or oil whip.
  • Axial Thrust Monitoring: Tracking the longitudinal movement of rotors in centrifugal compressors to prevent internal collisions.
  • Phase Reference (Keyphasor): Providing a once-per-revolution pulse to the monitoring system for RPM calculation and vibration phase analysis.
  • Thermal Expansion Measurement: Monitoring the physical growth of machine components during high-temperature startup cycles.
