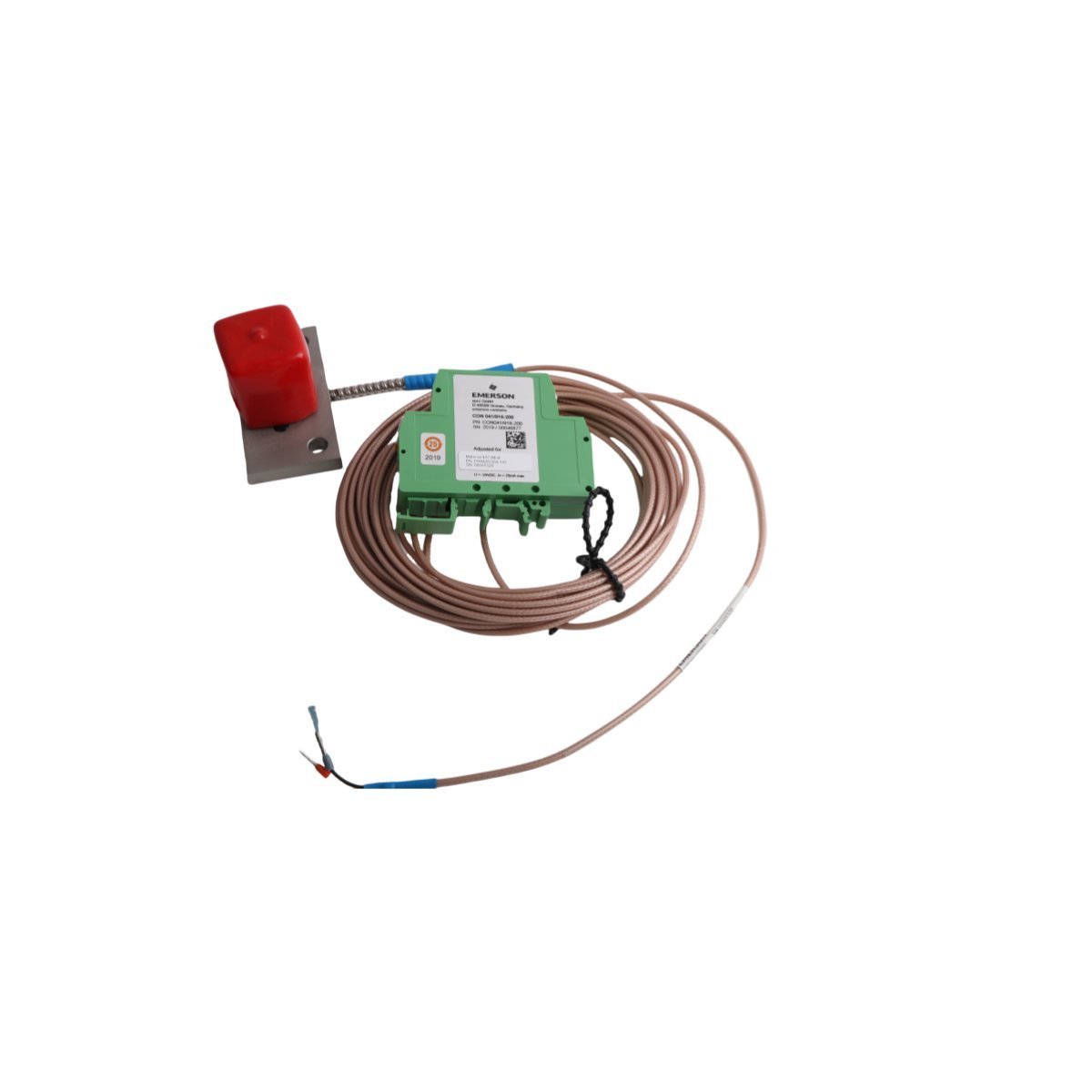

Emerson PR6426/000-131 CON041/916-200 Eddy Current Displacement Sensor

Technical Overview

The Emerson PR6426/000-131, paired with the CON041/916-200 signal converter, functions as a high-precision non-contacting displacement measurement system. This eddy current sensor primarily monitors critical machine parameters such as shaft vibration, axial thrust position, and differential expansion in high-speed rotating machinery. By generating a high-frequency electromagnetic field, the sensor detects minute changes in the distance between the probe tip and the target material. Consequently, the PR6426/000-131 provides the AMS 6500 Classic System with essential real-time data to prevent catastrophic mechanical failures and optimize equipment longevity.

Engineering Features and Operational Benefits

• Non-Contact Precision: The sensor employs eddy current technology to measure displacement without physical contact. Therefore, it eliminates mechanical wear and allows for continuous monitoring of shafts rotating at high velocities.
• High-Fidelity Signal Conversion: The CON041/916-200 converter transforms raw impedance changes into standardized voltage signals. This process ensures that the Distributed Control System (DCS) receives accurate and noise-free data for analysis.
• Ruggedized Construction: Emerson utilizes advanced materials to protect the sensor head against high pressure, oils, and chemical corrosives. As a result, the device maintains its calibration even in the aggressive environments found inside turbine housings.
• Integrated Diagnostics: The system includes built-in monitoring for cable breaks or short circuits. This proactive feature alerts operators to hardware issues immediately, which prevents false alarms and reduces unscheduled downtime.
• Thermal Stability: The probe design compensates for extreme temperature fluctuations. Consequently, the sensor delivers consistent linear output across a wide operating range, ensuring process stability in power generation and chemical manufacturing.

Primary Industry Applications

• Steam and Gas Turbines: Monitors radial shaft vibration and axial displacement to ensure rotor stability and prevent blade-to-casing contact.
• Centrifugal Compressors: Provides continuous data on thrust bearing wear by tracking shaft axial movement.
• Industrial Pumps and Motors: Detects early signs of bearing degradation or misalignment through high-resolution vibration analysis.
• Hydroelectric Generators: Tracks the mechanical clearance and runout of large-diameter vertical shafts.

Technical Product Specifications

• Manufacturer: Emerson (AMS/Epro Series)
• Model Number: PR6426/000-131
• Converter Number: CON041/916-200
• Product Type: Eddy Current Displacement Sensor
• System Compatibility: AMS 6500 Classic System / DCS
• Measurement Range: Typically 2mm to 4mm (depending on calibration)
• Output Signal: Linearized Analog Voltage
• Physical Weight: 0.44 kg
• Dimensions: 15 x 14 x 4.5 cm
