Stabilize your system networks with the HONEYWELL FS-TERIM-0002 Bus Terminator Module. Available in Brand New condition from Original Stock with fast Global Shipping. Purchase now to resolve bus signal reflections.

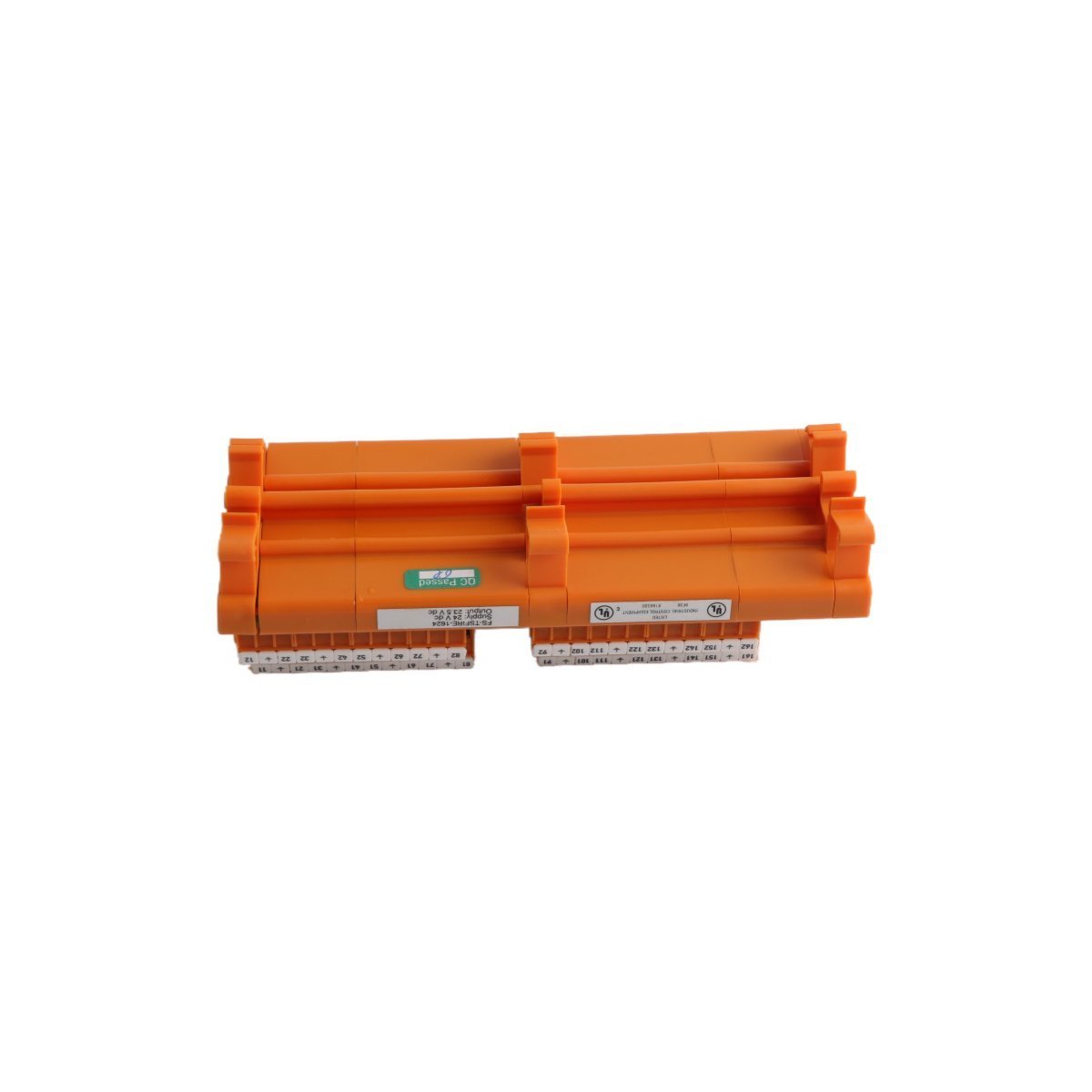

The HONEYWELL FS-TERIM-0002 serves as the primary FS-TERIM-0002 Bus Terminator utilized to execute active line termination across Honeywell DCS communication networks. The hardware stabilizes data lines by suppressing waveform distortions and maintaining continuous signal integrity at the physical segment endpoints of high-speed bus architectures.
| Parameter | Specification |
|---|---|
| Model | FS-TERIM-0002 |
| Brand | HONEYWELL |
| Origin | USA |
| Weight | 0.4 kg |
| Dimensions | 7 x 14 x 14.5 cm |
| Operating Temp | -40 to +85 deg C |
| Power Consumption | 15 mA at 24 VDC backplane current |
| Module Type | Bus Terminator |
| Nominal Impedance | 100 ohm |
| Bandwidth Range | DC to 500 MHz |
| Isolation | 500 VDC backplane isolation |
| System Classification | DCS |
| Communication Service | Ethernet router line stabilization |
The module implements localized impedance matching networks to restrict signal reflection below -30 dB at 1 GHz. Designed for integration within networked DCS environments, it utilizes internal galvanic barriers to isolate core transmission loops from physical ground discrepancies. Integrated circuitry balances common-mode noise configurations, yielding a common-mode rejection ratio that exceeds 40 dB at 100 MHz across the communication framework.
Q: Does this terminator operate passively or actively?
A: The module functions as an active terminator requiring 24 VDC voltage from the backplane to drive internal balancing networks and maintain fixed signal attenuation profiles.
Q: What are the consequences of deploying a node network without this component?
A: The omission of proper line termination induces impedance mismatches, which trigger data reflections, packet dropouts, and intermittent communication faults along the network segment.
Q: Can this unit handle environments subject to persistent mechanical vibration?
A: Yes. The module is structurally reinforced to resist continuous mechanical stresses up to 5 g over a frequency range of 10 to 500 Hz.
1. Install the active terminator directly at the terminal or physical endpoint slot of the communication bus sequence.
2. Secure the housing to the mounting rail ensuring complete locking engagement of the integrated retention brackets.
3. Keep field communication paths separate from AC distribution trunk lines to mitigate potential electro-magnetic coupling.
4. Verify the integrity of the 500 VDC isolation barrier during regular preventative maintenance via standard loop diagnostics.
| Parameter | Specification |
|---|---|
| Model | 2094-BM02-S |
| Brand | Allen-Bradley |
| Origin | USA |
| Weight | 0.9 kg |
| Dimensions | 3.5 x 13 x 14.5 cm |
| Operating Temp | 0 to +50 deg C (Standard Industrial Range) |
| Power Consumption | 650 VDC nominal input / 115 Ohm internal shunt resistor |
| Module Type | Servo Drive (Axis Module) |
| Product Range | ControlLogix / Kinetix 6000 |
| System Classification | PLC Motion Control |
| Continuous Current | 10.3 A (RMS), 14.6 A (Sine Peak) |
| Velocity Loop Bandwidth | 500 Hz |
| Current Loop Frequency | 1300 Hz |
| Efficiency Rating | 98% |
