SKU: 8709-CA-08

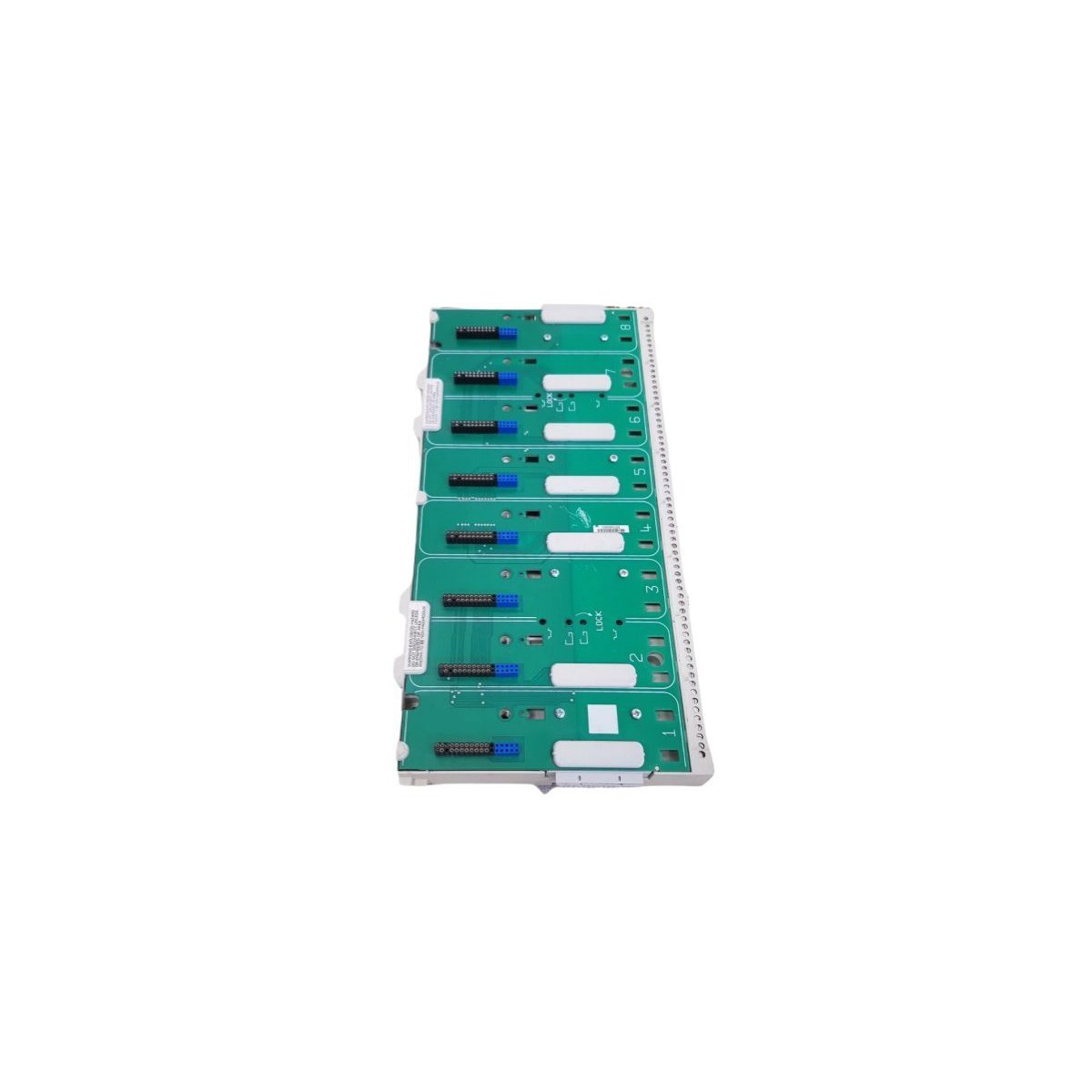

GE 8709-CA-08 SafetyNet Module Carrier PACSystems MTL8000 Series

The GE 8709-CA-08 is a 64-slot capable module carrier for SafetyNet and MTL8000 series I/O systems. This robust, passive mounting base distributes Railbus signals and Bussed Field Power while providing integrated grounding bars and flexible DIN-rail installation for critical industrial safety applications.

Request a Quote

Technical Overview

The GE 8709-CA-08 serves as a high-density backplane and mounting infrastructure for SafetyNet and MTL8000 I/O modules. This passive carrier facilitates the distribution of Railbus control signals, system power, and field-side electrical connections across the I/O rack. Specifically, the 8709-CA-08 supports advanced 64-module addressing modes, allowing for large-scale distributed control system (DCS) deployments. Because it contains no active electronic components, the carrier provides exceptional mean time between failures (MTBF), ensuring that the communication and power backbone of the safety system remains operational even during module maintenance or replacement.

Engineering Features and Operational Benefits

  • Extended Addressing Capability: The carrier supports either 32-slot or high-capacity 64-slot addressing. When engineers utilize the 64-slot configuration, the system requires the exclusive use of 8709-CA-08 carriers to maintain addressing integrity across the Railbus.
  • Bussed Field Power (BFP) Management: Integrated BFP connections streamline the delivery of power to field devices. Since each connection supplies two adjacent module slots, technicians can pair power-dependent modules together to optimize cabinet wiring and reduce cable clutter.
  • Versatile Mounting Architecture: Users can install the carrier on standard T-section or G-section DIN rails. Additionally, the base supports direct surface mounting on flat panels, providing mechanical flexibility for custom industrial enclosures.
  • Integrated Shield Grounding: The hardware features dedicated terminals and isolated earthing bars for cable screens. Consequently, the carrier ensures proper EMI/RFI shielding and grounding, which is critical for maintaining signal accuracy in high-interference environments.
  • Modular Scalability: Designers can join multiple carriers end-to-end to expand the system capacity. This “click-and-secure” method allows the I/O rack to grow alongside the process requirements without needing a complete cabinet redesign.
  • Vibration-Resistant Module Retention: Modules click into the field terminals and are further secured with mounting screws. As a result, the assembly maintains superior electrical contact even in heavy industrial applications prone to mechanical vibration.

Primary Industry Applications

  • Safety Instrumented Systems (SIS): Acts as the physical foundation for SafetyNet controllers and I/O modules in critical process protection loops.
  • Oil and Gas Processing: Provides a ruggedized interface for remote I/O stations in offshore platforms and refineries.
  • Chemical Manufacturing: Facilitates high-density wiring and isolated grounding for sensitive analog instrumentation and control valves.
  • Power Generation: Supports distributed control architectures for turbine auxiliary systems and plant-wide monitoring.

Technical Product Specifications

  • Manufacturer: General Electric (GE) / MTL
  • Model Number: 8709-CA-08
  • Product Series: PACSystems / MTL8000 / SafetyNet
  • Functional Category: Module Carrier / Backplane
  • Slot Addressing: 32-module or 64-module support
  • Mounting Options: T-rail, G-rail, or Direct Surface Mount
  • Power Distribution: Bussed Field Power (BFP) for adjacent slots
  • Physical Weight: 0.60 kg
  • Dimensions: 37.8 x 23.2 x 1.5 cm
