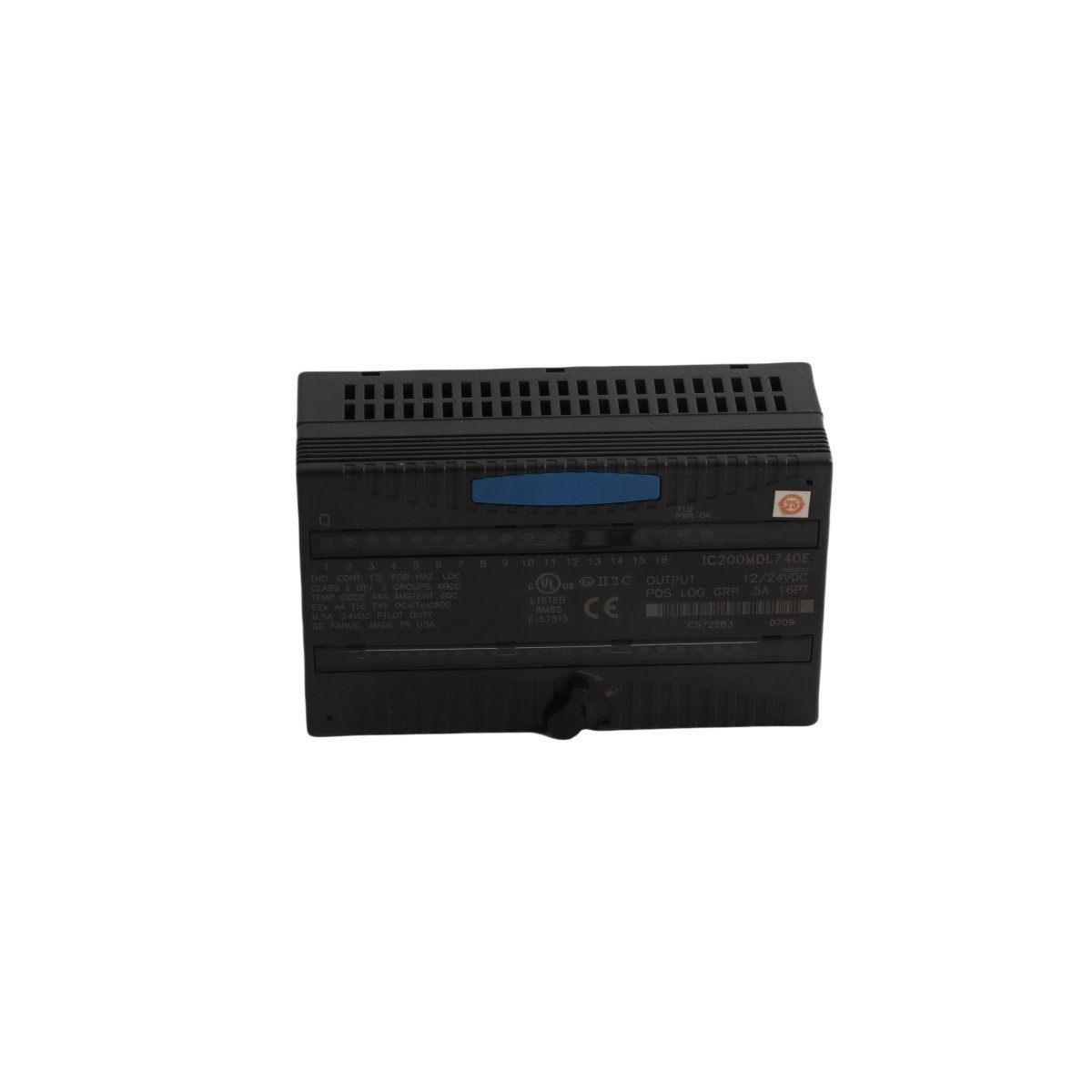

GE Fanuc IC200MDL740 VersaMax Discrete Output Module

The GE Fanuc IC200MDL740 is a 12/24 VDC discrete sourcing output module for the VersaMax Series. Featuring 16 points with 0.5A capacity each, this hot-swappable module offers rapid 0.2ms response times and integrated LED status indicators for efficient industrial automation.

Request a Quote

Technical Overview and Core Functionality

The GE Fanuc IC200MDL740 is a high-density discrete output module designed for the VersaMax I/O and PLC family. This module features 16 sourcing-type (positive logic) output points arranged in a single group, providing a reliable interface between the controller and field actuators. Because it supports a nominal voltage of 12/24 VDC, the unit effectively manages various industrial loads while maintaining a compact footprint.

Operational Performance and Signal Timing

This module excels in high-speed applications due to its rapid signal processing capabilities. It achieves a maximum “ON” response time of 0.2 milliseconds and an “OFF” response time of 1.0 millisecond. Furthermore, the IC200MDL740 derives its internal logic power from the backplane, while providing external power to the load side. To simplify troubleshooting, the module includes 16 individual green LED indicators on the front panel that clearly display the logic state of each output point.

Key Technical Characteristics

  • Brand: GE Fanuc / Emerson
  • Model Number: IC200MDL740
  • Output Type: Discrete Sourcing (Positive Logic)
  • Number of Points: 16 (One group of 16)
  • Operating Voltage: 12/24 VDC (Range: 10.2 to 30 VDC)
  • Output Current: 0.5A per point (max 4A total per group)
  • Response Time: ON: 0.2ms / OFF: 1.0ms
  • Installation Feature: Hot-swappable (supports hot insertion)
  • Dimensions: 11cm x 5.8cm x 6.5cm
  • Weight: 0.12 kg

Maintenance and System Integration

Since the IC200MDL740 supports hot insertion, technicians can replace the module without removing field wiring or powering down the entire station, which significantly reduces system downtime. To protect the internal circuitry when driving inductive loads, users must install external suppression circuits across the load. The module integrates seamlessly into the VersaMax environment using standard configuration software, allowing for effortless hardware and network setup.
