  4. GE Fanuc IC695PBM300 PACSystems RX3i PROFIBUS DP Master Module
Sale!
SKU: IC695PBM300

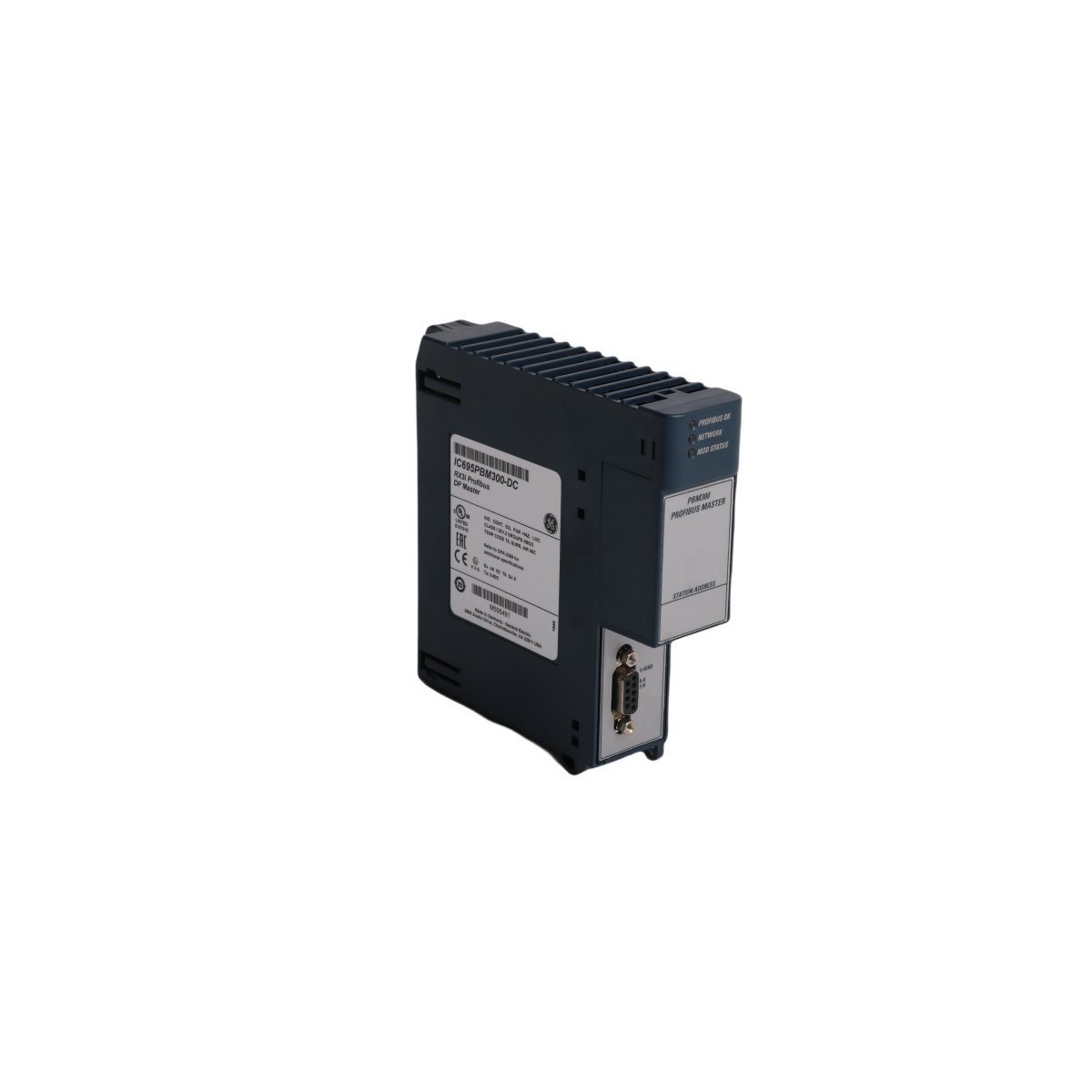

GE Fanuc IC695PBM300 PACSystems RX3i PROFIBUS DP Master Module

The GE Fanuc IC695PBM300 is a powerful PACSystems RX3i PROFIBUS DP Master module capable of controlling 125 slave devices. Supporting DP-V1 protocols and speeds up to 12 MBit/s, this module provides the high-speed data throughput and diagnostic depth required for sophisticated industrial network management.

Request a Quote

High-Performance Network Integration

The GE Fanuc IC695PBM300 serves as a high-speed communication gateway for the PACSystems RX3i platform, enabling the controller to orchestrate complex industrial PROFIBUS DP networks. By acting as the central master, this module facilitates the seamless exchange of critical process data between the host PLC and various decentralized peripheral devices. Because the module supports advanced PROFIBUS functionality, engineers can effectively integrate diverse third-party hardware into a unified automation architecture.

Enhanced Data Capacity and Communication Speeds

To accommodate data-intensive applications, the IC695PBM300 provides an extensive memory buffer capable of handling up to 3,584 bytes of input and 3,584 bytes of output data. Furthermore, the module manages up to 125 DP slave devices, where each individual slave can transmit and receive up to 244 bytes per cycle. Since network requirements vary by environment, the module offers a wide range of selectable baud rates, from a steady 9.6 kBit/s for long-distance lines up to a blistering 12 MBit/s for high-speed local synchronization.

Advanced Protocol Support and Diagnostics

In addition to standard cyclical communication, the IC695PBM300 fully supports DP-V1 acyclic messaging. This capability allows the system to perform complex tasks such as remote instrument parameterization and alarm handling without interrupting primary control cycles. Moreover, the module enhances system reliability by providing real-time diagnostic tools, including:

  • Comprehensive Slave Status Bit Array Tables
  • Detailed Network and DP Master diagnostic counters
  • Sync and Freeze modes for coordinated I/O updates
  • In-system firmware flash updates via WinLoader software

Industrial Hardware Design

The module features a robust mechanical design tailored for harsh industrial environments, operating efficiently within a temperature range of 0°C to 60°C. For physical connectivity, it utilizes a standard 9-pin Sub-D female connector, ensuring a secure and standardized interface for bus cabling. Additionally, the faceplate incorporates PROFIBUS-compliant LED indicators that provide immediate visual confirmation of network health and module status, which significantly accelerates troubleshooting procedures during commissioning.

Technical Specifications

  • Manufacturer: GE Fanuc (Emerson Automation)
  • Series: PACSystems RX3i
  • Module Type: PROFIBUS DP-V1 Master
  • Maximum Slave Count: 125
  • Maximum I/O Capacity: 3,584 Bytes Input / 3,584 Bytes Output
  • Selectable Baud Rates: 9.6k, 19.2k, 93.75k, 187.5k, 500k, 1.5M, 3M, 6M, 12M Bit/s
  • Power Requirements: 440 mA at 3.3 VDC
  • Interface: 9-pin Sub-D connector
  • Software Requirements: Proficy Machine Edition SP2 or later
  • Firmware Compatibility: CPU Version 2.90 or higher
  • Operating Temperature: 0 to 60°C (32 to 140°F)
