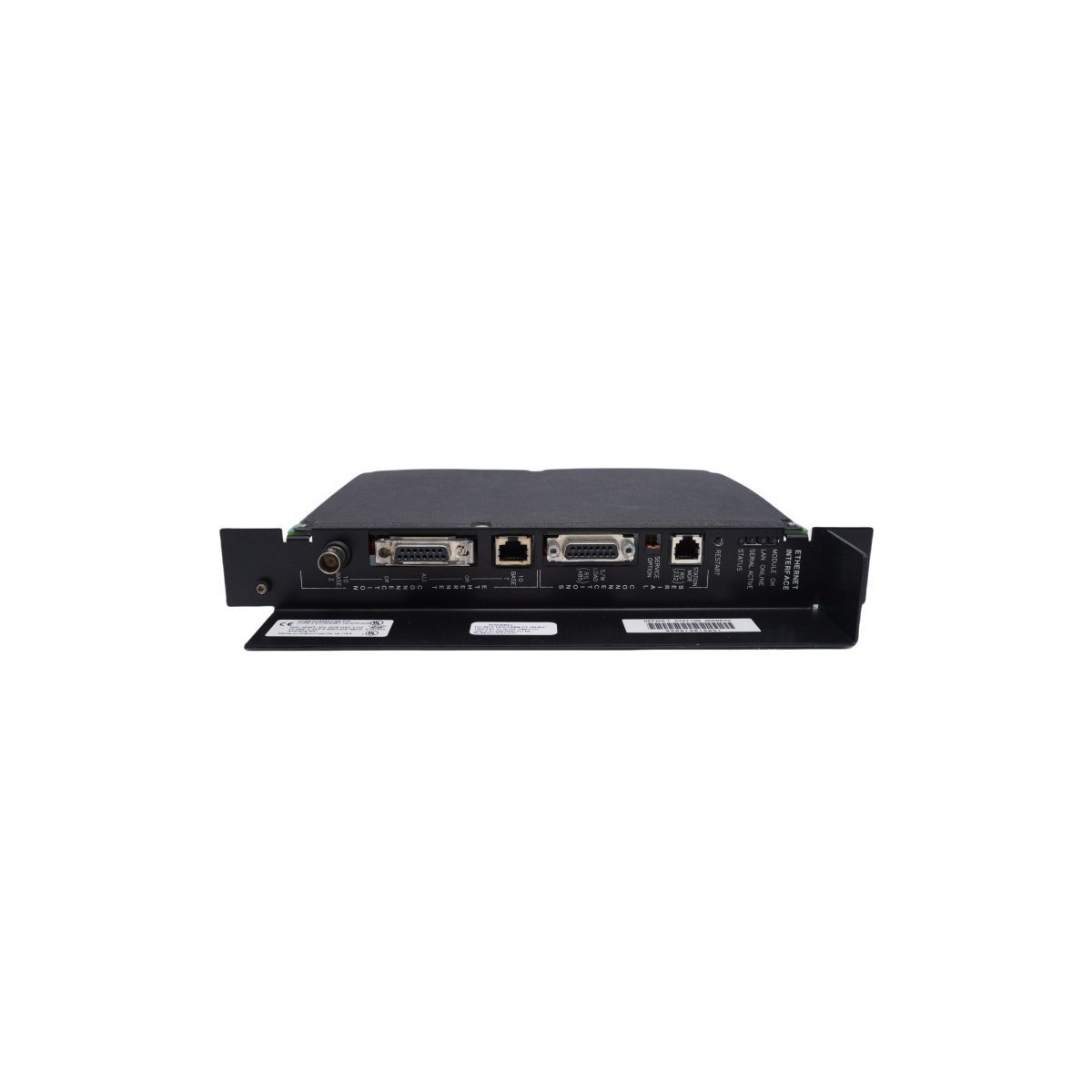

GE Fanuc IC697CMM742 Series 90-70 TCP/IP Ethernet Interface Module

The GE Fanuc IC697CMM742 is a TCP/IP Ethernet Interface Module for the Series 90-70 PLC. It supports EGD and SRTP protocols, offers 10Base-T and AUI connectivity, and enables seamless data exchange between the PLC and SCADA/HMI systems for advanced industrial networking.

Request a Quote

High-Performance Networking for Industrial Automation

The GE Fanuc IC697CMM742 serves as the primary Ethernet gateway for the Series 90-70 Programmable Logic Controller (PLC) platform. This module integrates the PLC rack into enterprise-level networks, enabling high-speed data exchange between the controller and external devices like HMIs, SCADA systems, and other PLCs. By utilizing the IC697CMM742, users bridge the gap between field-level control and management-level data analytics. Consequently, the module eliminates the bottlenecks associated with traditional serial communication, providing a robust TCP/IP foundation for modern industrial environments. Furthermore, it supports high-integrity protocols that guarantee timing and delivery for critical automation tasks.

Technical Specifications and Connectivity Options

  • Manufacturer: GE Fanuc (Emerson Automation)
  • Model Number: IC697CMM742
  • Product Series: Series 90-70 PLC
  • Module Type: TCP/IP Ethernet Communication Interface
  • Network Port Options: 10Base-T (RJ-45), 10Base-2 (BNC), and AUI Transceiver port
  • Serial Interfaces: RS-232 and RS-485 ports for local configuration
  • Maximum Modules: Supports up to 4 modules per CPU rack
  • Protocols Supported: Ethernet Global Data (EGD) and SRTP (Service Request Transport Protocol)
  • Operating Temperature: 0°C to +55°C (32°F to 131°F)
  • Weight: 0.8 kg
  • Physical Dimensions: 4 cm x 21.8 cm x 29.1 cm

Protocol Versatility and System Reliability

The IC697CMM742 optimizes network efficiency by employing Ethernet Global Data (EGD), which allows the PLC to “publish” data to a network for multiple “subscribers” simultaneously. This multicast capability significantly reduces network traffic compared to standard polling methods. In addition to EGD, the module facilitates SRTP services, ensuring secure and reliable communication for HMI and SCADA integration. Meanwhile, the front panel features four diagnostic LEDs—Module OK, LAN Online, Serial Active, and Status—that provide real-time troubleshooting data at a glance. Since the module includes a physical restart button, maintenance personnel can reinitialize the network stack without cycling power to the entire PLC rack. Therefore, the IC697CMM742 acts as a resilient communication hub that maintains system uptime in demanding industrial settings.

Core Industrial Applications

  • SCADA Networking: Connecting Series 90-70 controllers to centralized monitoring stations via standard Ethernet.
  • Peer-to-Peer Data Exchange: Synchronizing data across multiple PLC racks in complex manufacturing lines using EGD.
  • HMI Integration: Providing a high-bandwidth path for real-time operator interface updates and alarm management.
  • Remote Programming: Enabling engineers to upload, download, and monitor PLC logic over the company Intranet.
