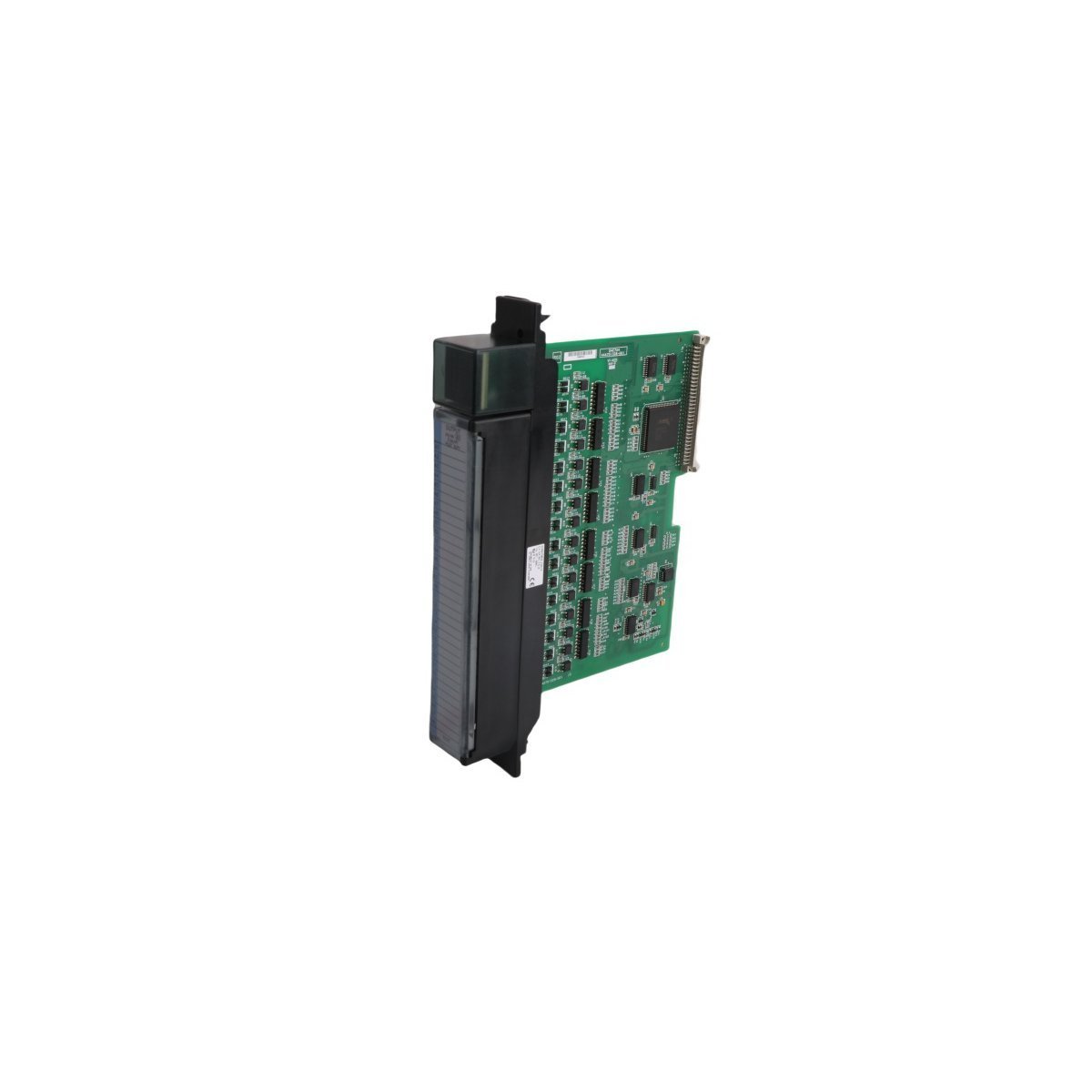

GE Fanuc IC697MDL750 Series 90-70 32-Point 24/48VDC Discrete Output Module

The IC697MDL750 is a 32-point 24/48VDC discrete output module for GE Fanuc Series 90-70 PLCs. Featuring 0.5A per point capacity, group-to-group isolation, and a removable terminal block, it provides high-density, reliable switching for solenoids, motor starters, and pilot lamps.

Request a Quote

High-Density Control Architecture

The IC697MDL750 serves as a high-density discrete output solution within the GE Fanuc (now Emerson) Series 90-70 PLC ecosystem. This module provides 32 independent output channels, allowing the controller to manage a vast array of field devices from a single slot. Because the module supports a broad operating voltage range of 20 to 60 VDC, it easily integrates into systems utilizing both 24V and 48V nominal power supplies. This versatility ensures that the module can interface with diverse industrial hardware, ranging from simple pilot lights to complex solenoid valves and motor starters.

Isolation and Electrical Protection

To safeguard the integrity of the control system, the IC697MDL750 utilizes a sophisticated isolation strategy. The module divides its 32 channels into four distinct groups of eight, providing 500 VDC isolation between each group. Furthermore, the unit features a robust 1500 VDC isolation barrier between the field-side circuitry and the backplane logic. This architecture prevents electrical noise or faults in the field from propagating to the central CPU. Furthermore, the module manages high-demand loads by supporting an inrush current of up to 10 Amps for 20 milliseconds, ensuring that inductive loads do not trigger premature failures.

Installation and Field Wiring

The hardware design prioritizes long-term reliability and ease of service through the inclusion of a removable terminal block. This feature allows technicians to pre-wire or replace modules without disturbing the field connections, significantly reducing system downtime. The terminal block accommodates a wide variety of wire gauges, specifically accepting #22 AWG through #14 AWG conductors. Additionally, the module adheres to the VME standard C.1, which guarantees mechanical and electrical compatibility within standardized industrial racks.

Key Technical Characteristics

  • Output Density: 32 individual discrete points organized in 4 isolated groups.
  • Voltage Range: Operates between 20 and 60 VDC (24/48 VDC Nominal).
  • Current Capacity: Delivers 0.5 Amps per point and up to 2.0 Amps per group.
  • Switching Speed: Features a rapid 1 ms response time for both “On” and “Off” state transitions.
  • Low Voltage Drop: Minimizes power loss with a maximum output voltage drop of only 1.0 Volt.
  • Power Requirements: Draws a consistent 0.25 Amps from the 5V backplane bus.
  • Physical Diagnostics: Includes front-panel status indicators to provide immediate visual feedback for each channel.

Industrial B2B Applications

Due to its high channel count and robust current handling, the IC697MDL750 frequently appears in heavy manufacturing, energy distribution, and large-scale infrastructure projects. It effectively drives interposing relays, contactors, and pneumatic actuators. Consequently, this module remains a critical component for maintaining or expanding Series 90-70 installations where high-reliability DC switching is mandatory.
