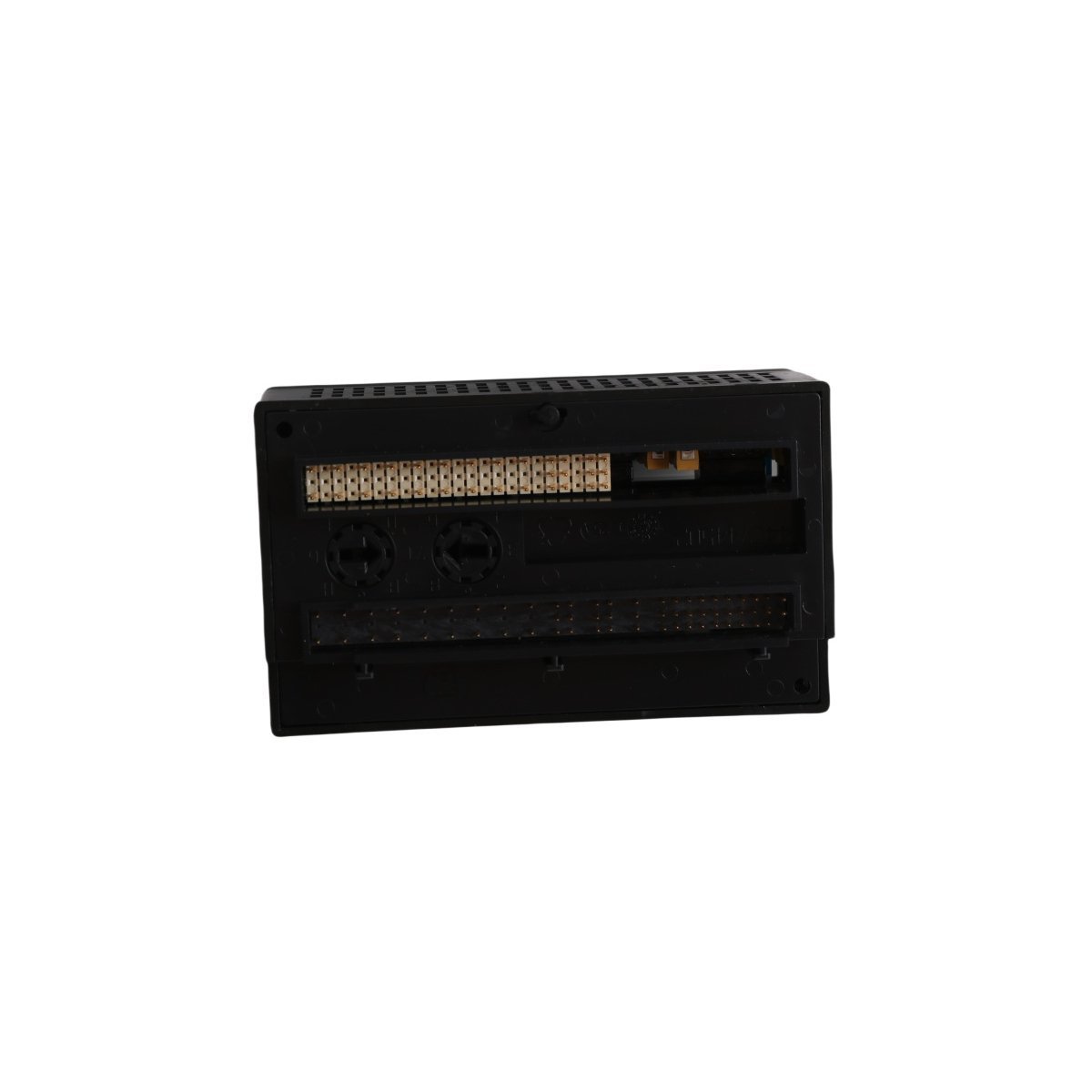

The GE Fanuc IC200ALG240 provides eight isolated analog input channels with 16-bit resolution for the VersaMax series. It supports both voltage and current signals while offering 1500 VAC isolation and advanced diagnostics to ensure maximum signal integrity in complex industrial environments.
The IC200ALG240 serves as a high-precision analog interface within the GE Fanuc VersaMax I/O ecosystem. This intelligent module integrates eight fully isolated input channels, which allow it to receive signals from diverse field sensors simultaneously. By employing a 16-bit architecture, the hardware converts incoming analog current or voltage signals into granular digital data for the central processor. Furthermore, this specific model prioritizes electrical integrity, as its design prevents ground loops and effectively shields the PLC logic from common-mode voltage disturbances.
Engineers can easily configure the IC200ALG240 to handle various signal types based on the needs of the application. For instance, the module supports a bipolar voltage range of -10 to +10 Volts DC as well as a standard current range of 4 to 20 milliamps. Because the module features true channel-to-channel isolation, users can mix different signal sources without risking cross-channel interference. Consequently, the 16-bit resolution ensures that the system captures even the most minute fluctuations in field variables, providing the precise data required for sophisticated process control loops.
The IC200ALG240 distinguishes itself through a comprehensive electrical isolation strategy. While standard modules often share a common return, this unit provides dedicated channel-to-channel isolation rated at 250 VAC continuous. This robust architecture eliminates the need for expensive external signal conditioners, thereby reducing both the physical footprint and the total cost of the control cabinet. Additionally, the module maintains a 1500 VAC barrier between the field inputs and the backplane logic, ensuring that high-voltage transients never reach the sensitive control electronics.
To maximize system uptime, the IC200ALG240 incorporates an advanced suite of diagnostic tools. The module proactively monitors field conditions and reports specific faults directly to the CPU. These diagnostic capabilities include:
Moreover, the integrated “OK” LED provides operators with immediate visual confirmation regarding the module’s operational status and configuration health.
This module excels in environments that demand high-accuracy measurements despite significant electrical noise. Consequently, facility managers often deploy the IC200ALG240 in chemical processing plants, oil refineries, and power generation stations where sensors may reside at varying ground potentials. Ultimately, its versatility allows it to function as a reliable primary interface for pressure transducers, flow meters, and analytical instruments across any VersaMax PLC platform.
