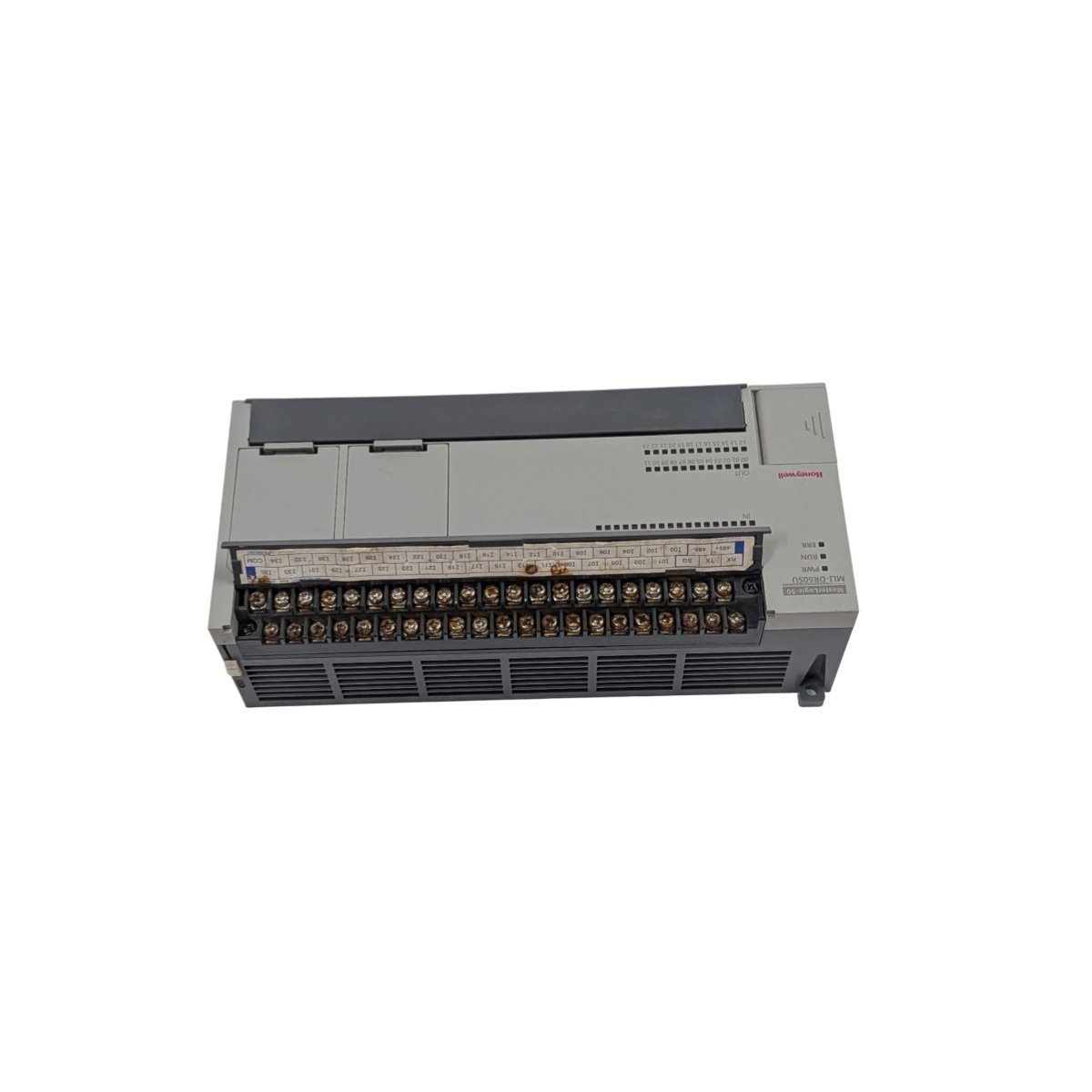

HONEYWELL MLI-DR60SU MasterLogic PLC Base Module

The Honeywell MLI-DR60SU is a high-density, high-performance Programmable Logic Controller (PLC) Base Module belonging to the MasterLogic-50 platform. Designed for small-to-medium industrial automation systems, this unit combines processing logic, high-density configurable channels, and multi-protocol network communication routing into a single, compact hardware profile. It is widely used in applications ranging from basic machine sequencing to distributed control system (DCS) integration.

Hardware Specifications

Controller Architecture & Built-in Processing Power

The MLI-DR60SU serves as the master brain of its local rack assembly. It features a powerful central processing unit capable of executing complex automation scripts with microscopic instruction loop times.

Supported natively by the MasterLogic programming environment, the module executes a rich industrial instruction library. This includes floating-point math formulas, string parsing, advanced data manipulation matrix blocks, and trigonometric functions ($sin$, $cos$, $tan$) necessary for accurate PID process tuning, variable speed drive command scaling, and positioning analytics.

Frequently Asked Questions

Q: Can the MLI-DR60SU handle communications with third-party devices directly?

A: Yes. The base unit features integrated multi-communication ports that natively process MLDP (MasterLogic Dedicated Protocol) and Modbus (RTU/TCP). This enables direct, plug-and-play communication lines with Human Machine Interfaces (HMIs), variable frequency drives, and smart field instrumentation without needing specialized gateway cards.

Q: What defines a “Base Module” within this Honeywell product line?

A: A Base Module contains the primary CPU power chip and independent network ports alongside a fixed density of universal input/output terminations. In contrast, an “Expansion Module” lacks a processing core and must link back to a Base Module via a side-plane ribbon bus or expansion cable to function.

Field Installation Guidelines

• DIN-Rail Assembly Mounting: Snap the MLI-DR60SU vertically onto a grounded 35mm DIN rail. Ensure the top and bottom chassis slider clips lock firmly into place onto the metal rail teeth to prevent physical shifts inside vibration-heavy control panels.
• Thermal Management Space: Maintain a minimum clear boundary gap of at least 50 mm (2 inches) above and below the module housing. This allows ambient convective airflow to pass smoothly through the ventilation slots, avoiding internal heat spots.
• Expansion Bus Protection: When pairing expansion modules directly to the right side of the MLI-DR60SU, make sure power to the entire system is completely disconnected. Hot-plugging a side-bus ribbon cable risks blowing out the logic transceiver chips on the main CPU circuit board.
