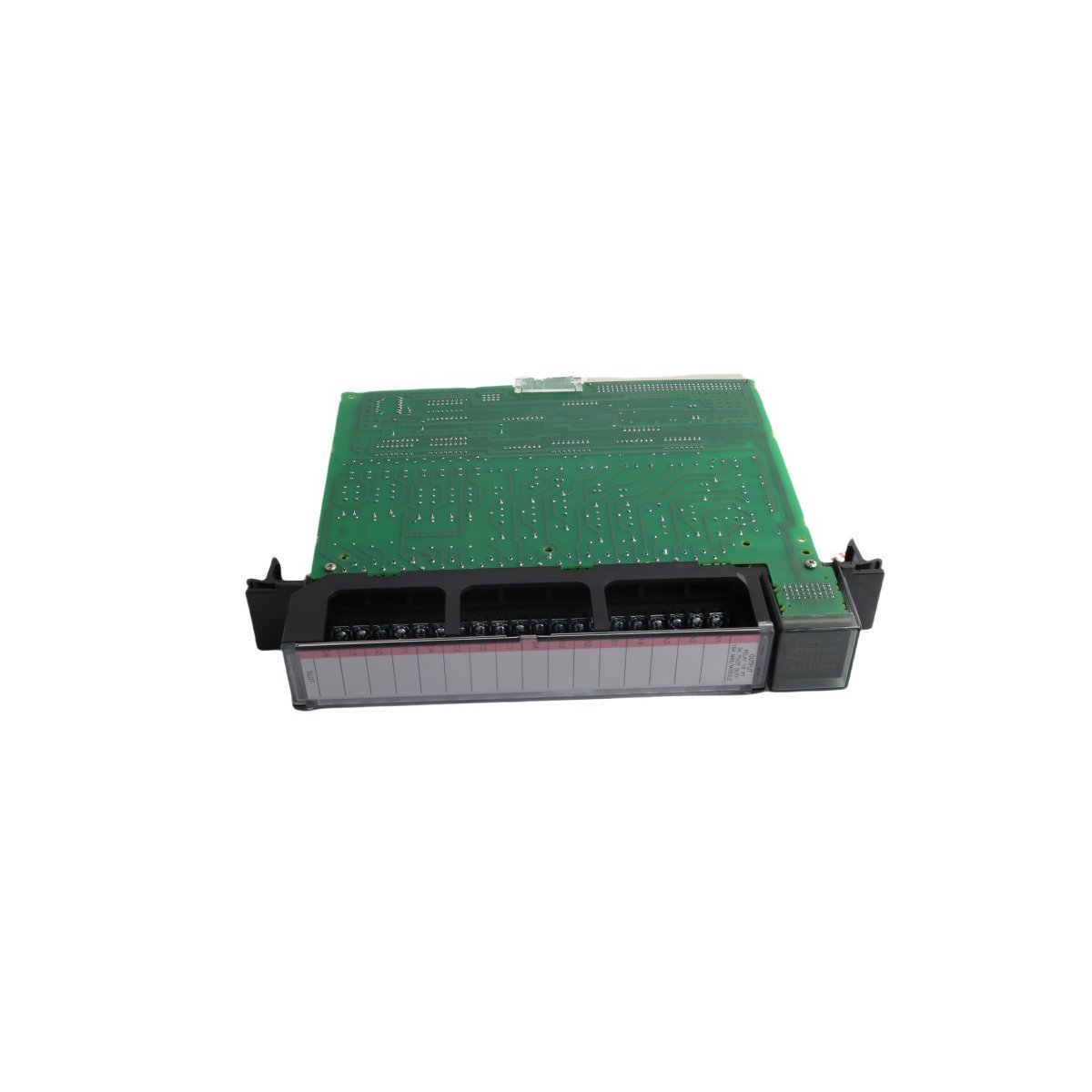

IC697MDL940 GE Fanuc PLC 8 Form A and 8 Form C Relay Module

The IC697MDL940 is a 16-channel relay output module for GE Fanuc Series 90-70 PLCs. It provides isolated switching for AC and DC loads with a mix of Form A and Form C contacts and built-in fuse protection.

Request a Quote

Product Overview

The GE Fanuc IC697MDL940 functions as a high-capacity switching interface for the Series 90-70 PLC system, providing 16 discrete relay outputs to drive field actuators. This module features a hybrid contact configuration, offering eight Form C (normally open/normally closed) and eight Form A (normally open) contacts to accommodate diverse circuit requirements. Because it supports both AC and DC load switching across a wide voltage spectrum—including 120/240 VAC and up to 150 VDC—engineers frequently deploy this module in motor control centers, water treatment facilities, and power distribution substations. The robust mechanical design ensures deterministic operation and significant electrical isolation between the sensitive PLC backplane and high-voltage field wiring.

Contact Architecture and Circuit Protection

The hardware architecture of the IC697MDL940 centers on silver-alloy contacts designed for low resistance and high durability, supporting up to 20 million mechanical operations. To safeguard the module against transient spikes during the switching of inductive loads, each channel incorporates an RC snubber circuit. Furthermore, individual 3-amp fuses protect every output against overcurrent conditions, significantly reducing the risk of module-wide failure. The module provides 1500 VDC isolation, effectively preventing electrical noise and ground loops from disrupting the central processor. Consequently, this module maintains high signal integrity even when managing high-surge loads such as solenoids and heavy-duty contactors.

Technical Performance and Loading

  • The module manages AC loads up to 480 VA and DC loads up to 60 watts, with a 2.0 A maximum current rating for standard 24 VDC or 240 VAC applications.
  • Specialized high-voltage DC switching is available on Form A contacts, allowing for 0.2 A operation at up to 150 VDC.
  • A maximum response time of 10 milliseconds ensures rapid execution of control logic commands for time-critical automation processes.
  • The internal logic draws power directly from the PLC backplane, while the relay coils are energized via external field power to minimize backplane thermal loading.
  • Software configuration through the Logicmaster 90 or CIMPLICITY environment eliminates the need for physical jumpers during setup.

Technical Specifications

  • Manufacturer: GE Fanuc (Emerson)
  • Model Number: IC697MDL940
  • Series: Series 90-70
  • Output Type: Relay (8 Form A, 8 Form C)
  • Channel Count: 16 Points
  • Voltage Range: 5-265 VAC / 5-150 VDC
  • Maximum Load Current: 2.0 A per point (AC/DC)
  • Isolation Voltage: 1500 VDC
  • Switching Frequency: 20 cycles per minute (Inductive)
  • Weight: 0.66 kg
  • Dimensions: 4 cm x 22 cm x 29.1 cm
  • Origin: USA
