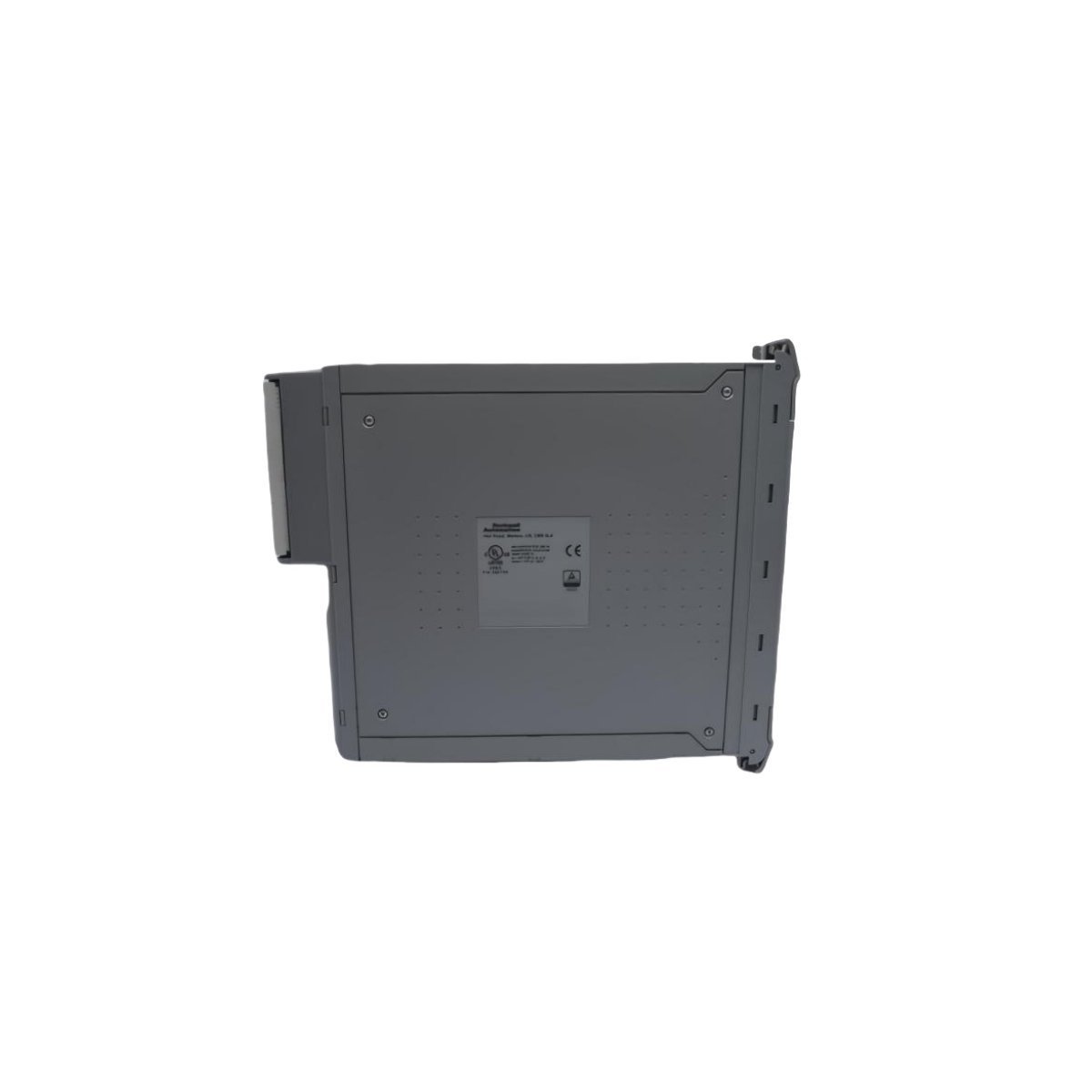

ICS Triplex Regent T8230 Trusted Power Shelf

The ICS Triplex T8230 is a high-reliability Power Shelf designed for the Trusted and Regent systems. It provides a redundant distribution platform for power supply modules, ensuring fault-tolerant energy delivery and continuous uptime for critical industrial PLC applications.

Request a Quote

Product Overview

The ICS Triplex T8230 functions as a foundational Power Shelf for the Regent and Trusted control system architectures. This specialized hardware provides a high-integrity mounting and distribution platform for multiple power supply units, ensuring that the system backplane receives a continuous, regulated energy stream. By serving as the primary power interface for processors and I/O modules, the T8230 supports critical infrastructure in sectors such as oil and gas, power generation, and heavy manufacturing where operational continuity is mandatory.

Power Redundancy and System Stability

The T8230 Power Shelf facilitates fault-tolerant configurations by supporting redundant power supply modules. Because industrial environments often face electrical instability, this unit incorporates advanced filtering to eliminate electromagnetic noise and voltage spikes that could otherwise compromise sensitive PLC logic. If a primary power source fails, the shelf’s internal bus architecture enables a seamless transition to backup units. Consequently, this design eliminates power-related single points of failure, effectively anchoring the reliability of the entire safety-instrumented system (SIS).

Technical Specifications

  • Manufacturer: ICS Triplex (Rockwell Automation)
  • Model Number: T8230
  • Product Category: Power Shelf / Power Distribution Unit
  • Control System Compatibility: Regent / Trusted TMR Series
  • Unit Weight: 1.24 kg
  • Chassis Dimensions: 36cm x 27cm x 6cm
  • Country of Origin: USA
  • Service Mode: Ethernet router communication support
  • Mounting Style: Rack-integrated

Diagnostic and Maintenance Advantages

Beyond simple power distribution, the T8230 provides integrated diagnostic capabilities that allow operators to monitor the health of the power subsystem in real-time. This proactive monitoring helps maintenance teams identify potential degradation before it leads to system failure. Furthermore, the shelf supports hot-swappable module replacement, which allows technicians to install or remove power units without de-energizing the system. This modular flexibility, combined with a rugged frame resistant to thermal stress and airborne contaminants, ensures the T8230 remains a dependable component in harsh industrial landscapes.

Tags:
