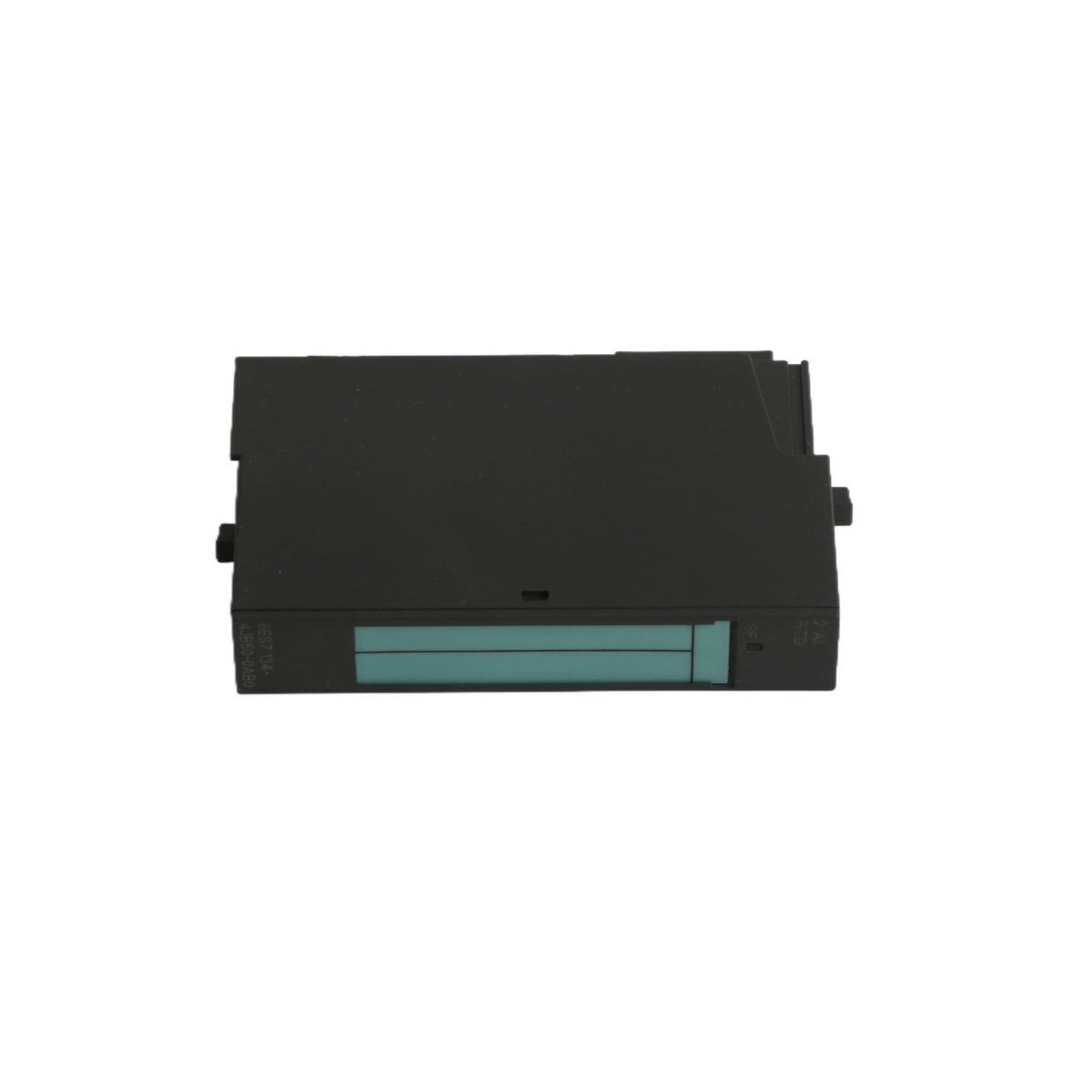

The Siemens 6ES7134-4JB01-0AB0 is a 2-channel Analog Input Module for the SIMATIC ET 200S system. Designed for thermocouples, this 15-bit resolution module provides high-accuracy temperature monitoring with integrated interference suppression and comprehensive diagnostics for distributed I/O architectures.
The Siemens 6ES7134-4JB01-0AB0 functions as a high-precision Analog Input Module for the SIMATIC ET 200S distributed I/O system. This dual-channel module specifically interfaces with thermocouples, allowing the PLC to monitor temperature variations with extreme accuracy. By utilizing advanced linearization and cold-junction compensation, the 6ES7134-4JB01-0AB0 converts low-voltage millivolt signals from thermal sensors into digital values that the central controller can process for thermal regulation and safety monitoring.
This module provides 15-bit plus sign resolution, which ensures that even minute temperature fluctuations are detected and reported. Because industrial environments often suffer from electrical interference, the module incorporates a 50/60 Hz interference frequency suppression feature to maintain signal stability. It supports a wide variety of thermocouple types—including Type J, K, N, and S—making it a versatile choice for different heating and cooling processes. Furthermore, the 6ES7134-4JB01-0AB0 includes comprehensive diagnostic capabilities; it can immediately signal a “wire break” or “overflow” condition to the master controller, thereby preventing erroneous data from affecting the process.
Engineering teams deploy the 6ES7134-4JB01-0AB0 in decentralized thermal management systems where precision and modularity are required. Consequently, this module is essential for the following applications:
