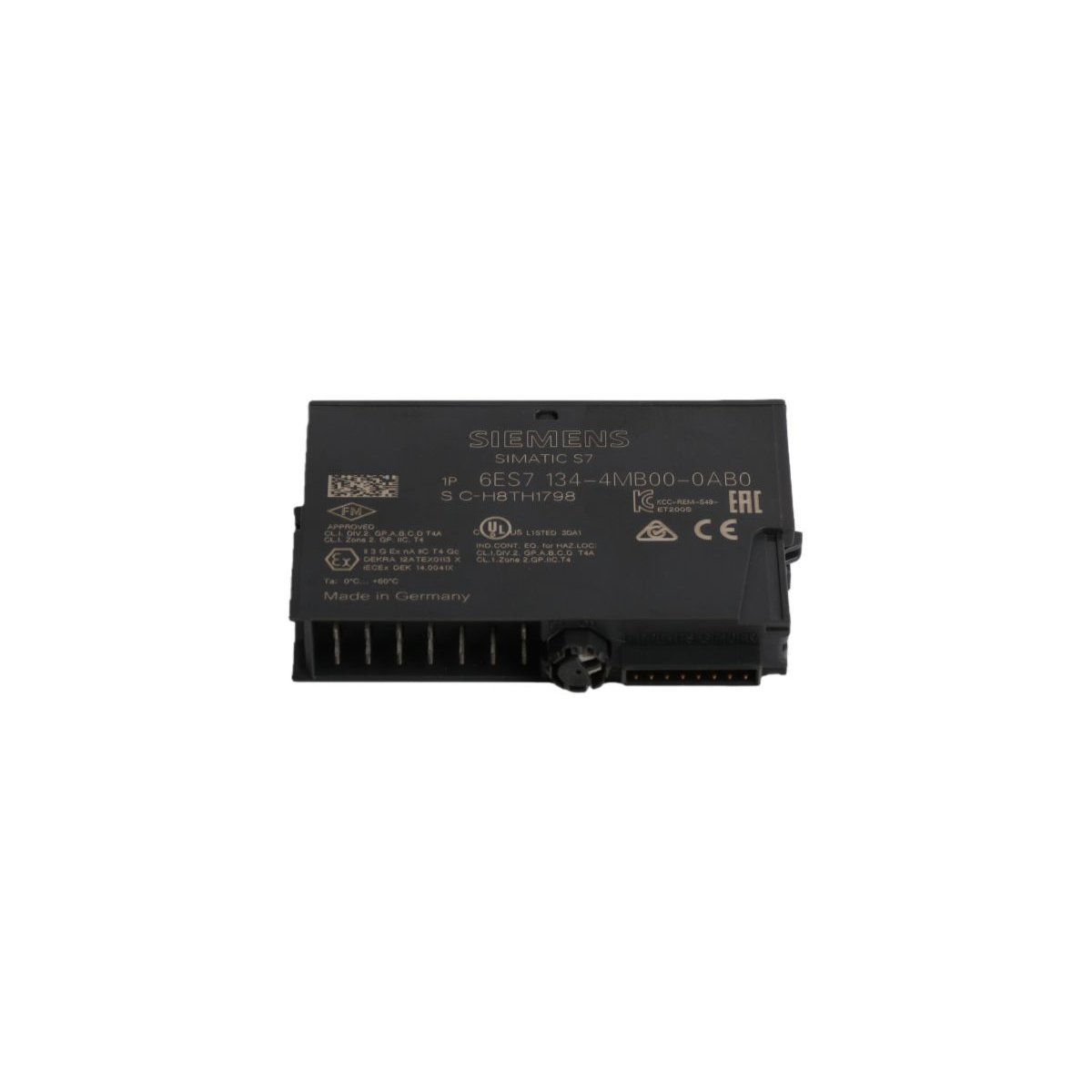

The Siemens 6ES7134-4MB00-0AB0 is a 2-channel analog input module for ET 200S systems. It features 15-bit resolution and supports 4-20 mA current measurements.
The Siemens 6ES7134-4MB00-0AB0 functions as a High Feature electronic module for the SIMATIC ET 200S system. This analog input unit captures current signals with exceptional accuracy for process control. It offers two individual channels for monitoring various sensor types in industrial environments. Because it provides 15-bit resolution plus a sign bit, it delivers highly granular data to the PLC. This precision allows operators to maintain tight control over critical variables. Furthermore, the 15mm width ensures a compact footprint within the distributed I/O station.
Engineers designed this module to handle demanding electrical conditions. It features complete electrical isolation between the backplane bus and the input channels. This protection prevents interference from affecting the internal system logic. Additionally, the module supports a common-mode voltage of up to 100V AC. This capability is vital for applications where grounding potentials might vary significantly. Consequently, the hardware maintains signal integrity in electrically noisy plant sections. The robust isolation also protects upstream controllers from field-side electrical faults.
This High Feature module supports diverse measurement ranges for flexible deployment. It accommodates standard current inputs including 4 to 20 mA and ±20 mA. Therefore, it works seamlessly with both two-wire and four-wire transducers. The hardware includes an integrated System Fault (SF) LED for rapid status monitoring. If an error occurs, the diagnostic functions immediately alert the maintenance team. Such features reduce troubleshooting time and minimize production downtime. Moreover, the unit integrates easily with various terminal modules using screw or spring-loaded connections.
| Feature | Detailed Specification |
| Part Number | 6ES7134-4MB00-0AB0 |
| Module Category | ET 200S Analog Input (AI) |
| Channel Count | 2 High Feature Inputs |
| Resolution | 15 bits + Sign |
| Measurement Type | Current (±20 mA, 4-20 mA) |
| Operational Accuracy | ±0.1% |
| Module Width | 15 mm |
| Diagnostic Support | Group Fault (SF) LED |
The modular design of the ET 200S series simplifies hardware replacement and upgrades. Technicians can swap this analog input module without disturbing the permanent wiring. This “hot-swapping” capability ensures continuous operation for the rest of the I/O station. Because it originates from Siemens Germany, it meets global standards for quality and durability. The module remains an ideal choice for chemical processing, water treatment, and factory automation. By utilizing this High Feature unit, facilities achieve superior monitoring performance in a space-saving format.
