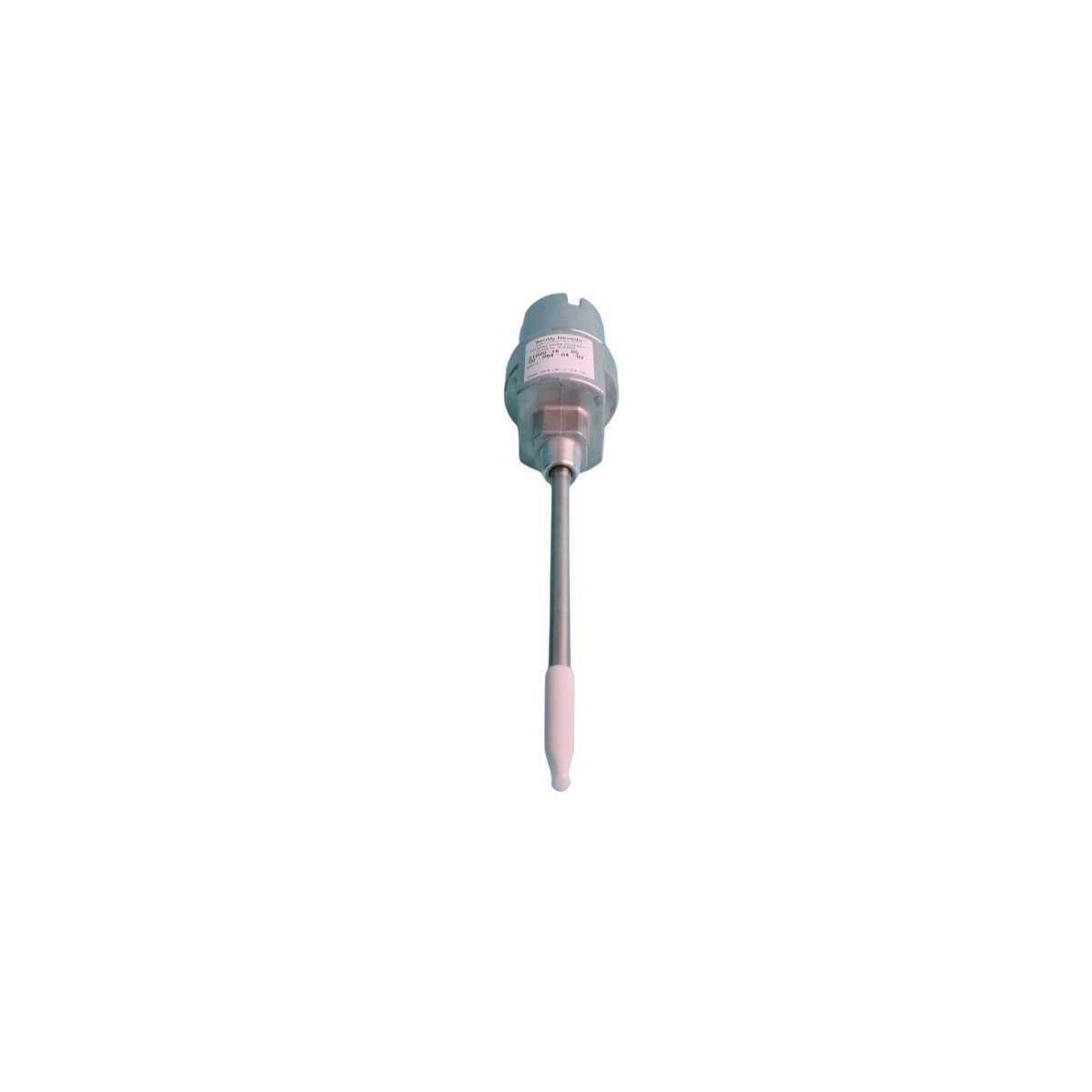

Bently Nevada 21000-00-00-00-042-03-02 21000 Series Proximity Probe Housing Assembly
Sale!
SKU: 21000-00-00-00-042-03-02
Bently Nevada 21000-00-00-00-042-03-02 21000 Series Proximity Probe Housing Assembly
Purchase the authentic Bently Nevada 21000-00-00-00-042-03-02 Proximity Probe Housing Assembly from our verified industrial stock. Brand new with factory packaging and direct global shipping. Contact us for technical support.
The Bently Nevada 21000-00-00-00-042-03-02, also cataloged as the 21000 Series Proximity Probe Housing Assembly, operates as a dedicated hardware component for mechanical sensor encapsulation and environmental isolation within Bently Nevada TSI monitoring platforms. The mechanical assembly seals, positions, and protects internal proximity probes used for non-contacting measurements of fluid-film bearing clearance, shaft relative movement, and rotor structural variations. It mounts directly through machine casings to interface proximity sensors with target rotating shafts.
Hardware Specifications
Parameter
Specification
Model
21000-00-00-00-042-03-02
Brand
Bently Nevada
Origin
USA
Weight
1.08 kg
Dimensions
8.5 x 8.5 x 30.5 cm
Operating Temp
-35 to +150 deg C (housing component limits)
Power Consumption
Passive physical mechanical structure
Module Type
Proximity Probe Housing Assemblies
System Platform
TSI (Turbine Supervisory Instrumentation) / 3500 Series
Casing Connection
Explosion-proof heavy-duty containment design
Internal Probe Capacity
Supports standard 8 mm / 11 mm proximity transducers
Target Machinery
Turbines, compressors, pumps, and heavy rotating assets
HS Code
8537101190
Gap Voltage Validation and Eddy-Current Probe Scaling
The mechanical housing permits calibrated position adjustment required to secure proper eddy-current probe scaling and calibration parameters during machine stops. Correct insertion depth ensures the internal proximity sensor maintains precise alignment to target the physical machine shaft, achieving accurate rotor dynamics monitoring. Technicians utilize the internal sliding sleeve adjustment to establish precise gap voltage validation, targeting an output nominal baseline value of -10 VDC at the Proximitor sensor output terminals. The rigid structural design further isolates the delicate high-frequency cable pathways from high-velocity oil splash and physical vibration, minimizing signal cross-talk suppression issues across high-density transducer clusters.
Frequently Asked Questions
Q: How is the physical gap voltage validated when using this housing assembly?
A: The proximity probe is threaded inside the housing adjusting sleeve until a digital multimeter connected to the Proximitor sensor terminals indicates the target -10 VDC calibration midpoint, verifying the sensor tip is located within the linear measurement zone.
Q: Does this housing include active electronic signal conditioners or buffering circuits?
A: No. The assembly is a passive mechanical hardware enclosure designed to provide explosion-proof protection, environmental sealing, and structural stabilization for an independently installed Bently Nevada proximity probe.
Q: Can the internal sensor probe be extracted or replaced while the machine is running?
A: Yes. Provided the housing model is configured with an external sleeve mechanism and isolation valves, the proximity transducer can be unlocked and pulled out without exposing personnel to internal lubricating oil or machine pressure seals.
Field Installation Guidelines
Thread Engagement Stability: Clean the machine casing port threads completely before insertion. Ensure proper NPT thread engagement, following a minimum criteria of five full thread turns, to form a rugged seal capable of resisting system harmonic vibrations.
Conduit and Shield Termination: Route the coaxial extension cable out through the explosion-proof conduit hub. Maintain separate pathways from high-current electrical lines, ensuring the overall cable shield is isolated from the housing frame to prevent ground loops.
Sleeve Locknut Adjustment: After validating the transducer gap voltage using a calibrated voltmeter at the monitor rack, tighten the outer sleeve locknut to the factory torque specification to ensure the position does not drift under structural machine loading.
O-Ring Seal Inspection: Prior to final mechanical compression, verify that all fluorocarbon internal O-rings are fully seated and lubricated with compatible machine oil to prevent moisture and chemical ingress into the sensor tip cavity.
