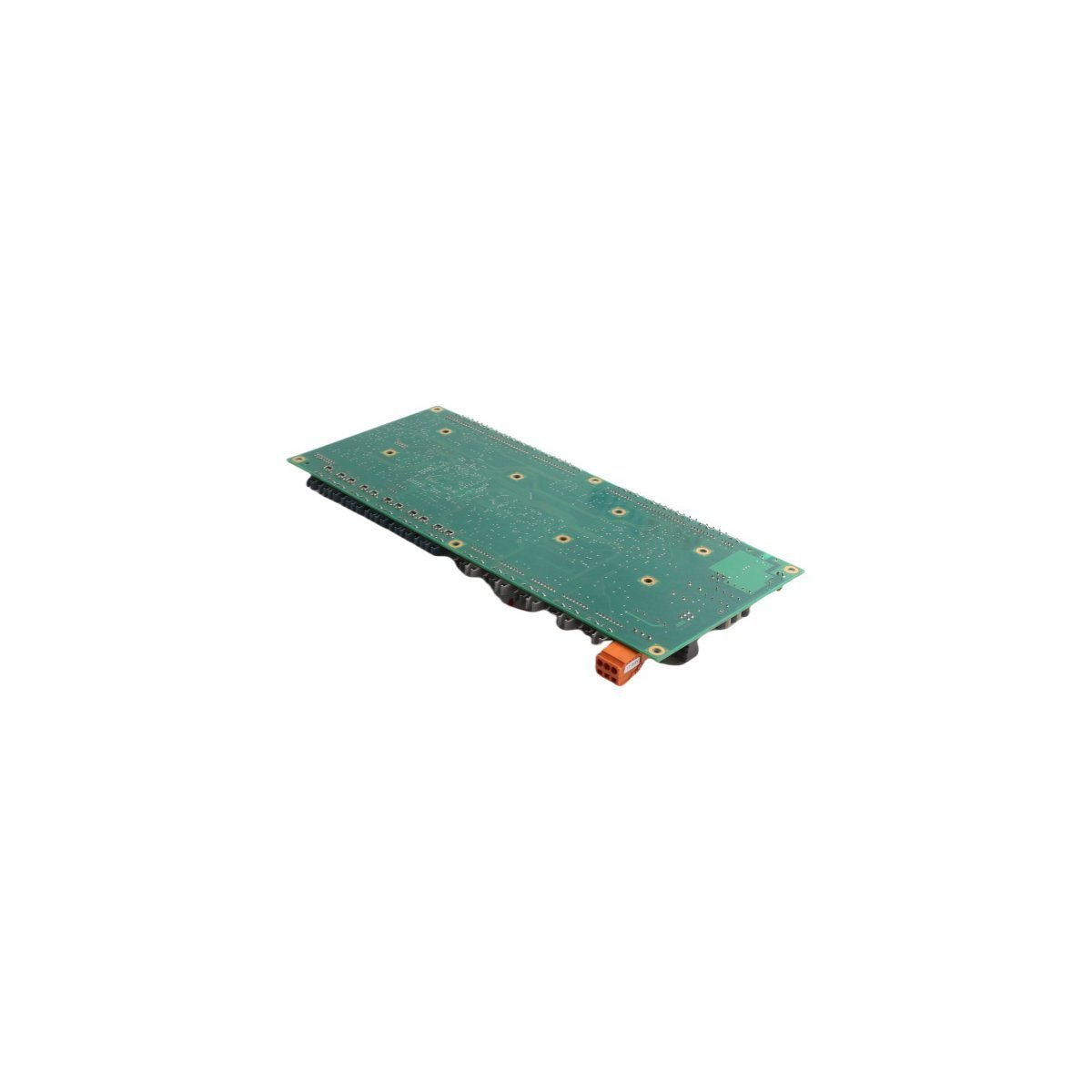

The ABB HIEE300936R0101 UFC718AE01 is a high-performance Main Circuit Interface Board for power electronics and excitation systems. It provides essential signal isolation and high-speed control interfacing between low-voltage controllers and high-power main circuits
The ABB HIEE300936R0101, identified by the hardware code UFC718AE01, functions as a specialized Main Circuit Interface Board primarily utilized within high-power excitation systems and large-scale power electronics. This board serves as a critical communication and control bridge between the low-voltage control electronics and the high-voltage main power circuit. By processing high-speed switching signals and monitoring power stage feedback, the UFC718AE01 ensures precise synchronization and regulation of heavy-duty industrial converters and rectifiers.
This interface board manages complex signal conditioning tasks to protect sensitive control logic from the electromagnetic interference typical of high-power environments. Because the UFC718AE01 incorporates robust galvanic isolation, it prevents high-voltage surges from damaging the supervisory control system. Furthermore, the board features specialized gate driver interfaces or feedback loops that facilitate real-time monitoring of current and voltage levels within the main circuit.
The UFC718AE01 architecture supports high-reliability operations in demanding sectors such as utility power generation and heavy metal processing. Since the module utilizes high-grade industrial components, it maintains stable timing characteristics even under significant thermal stress. Moreover, the board is designed for rapid integration into ABB’s Unitrol or similar excitation frameworks, where it executes the critical task of managing the interface between the digital controller and the power thyristor bridges.
The Emerson DeltaV SIS™ KJ3001X1-BH1 (12P0558X152) is a legacy, high-performance isolated I/O interface card engineered for critical process safety and Distributed Control Systems (DCS). Providing robust electrical isolation to prevent ground loops and voltage spikes, this module features a field circuit rating of 60 VDC at 1 A per channel, a LocalBus power draw of 150 mA at 12 VDC, and a specialized B5 mechanical terminal block keying system to prevent incorrect field installation. Built to withstand punishing industrial conditions, its IP20-rated assembly is certified to ISA-S71.04-1985 Class G3 corrosion resistance standards, ensuring stable, interference-free safety loop communication in harsh, highly corrosive processing environments.
The Emerson Ovation 1P00028G01 Remote Node Transition Panel provides robust signal routing and high-integrity electrical isolation for legacy Ovation Distributed Control Systems (DCS). Operating at 220V AC across an ultra-wide temperature range of -40°C to +85°C, this compact transition panel eliminates field line noise and ensures reliable, deterministic peer-to-peer communication between remote I/O nodes and central controllers in demanding industrial environments.
