Secure genuine HONEYWELL CV-STAD01 PlantCruise Direct Station authorization keys. Provides 5,000 dynamic object capacity and NAMUR NE 148 HMI compliance for Experion systems. Original USA factory stock ready for rapid dispatch.

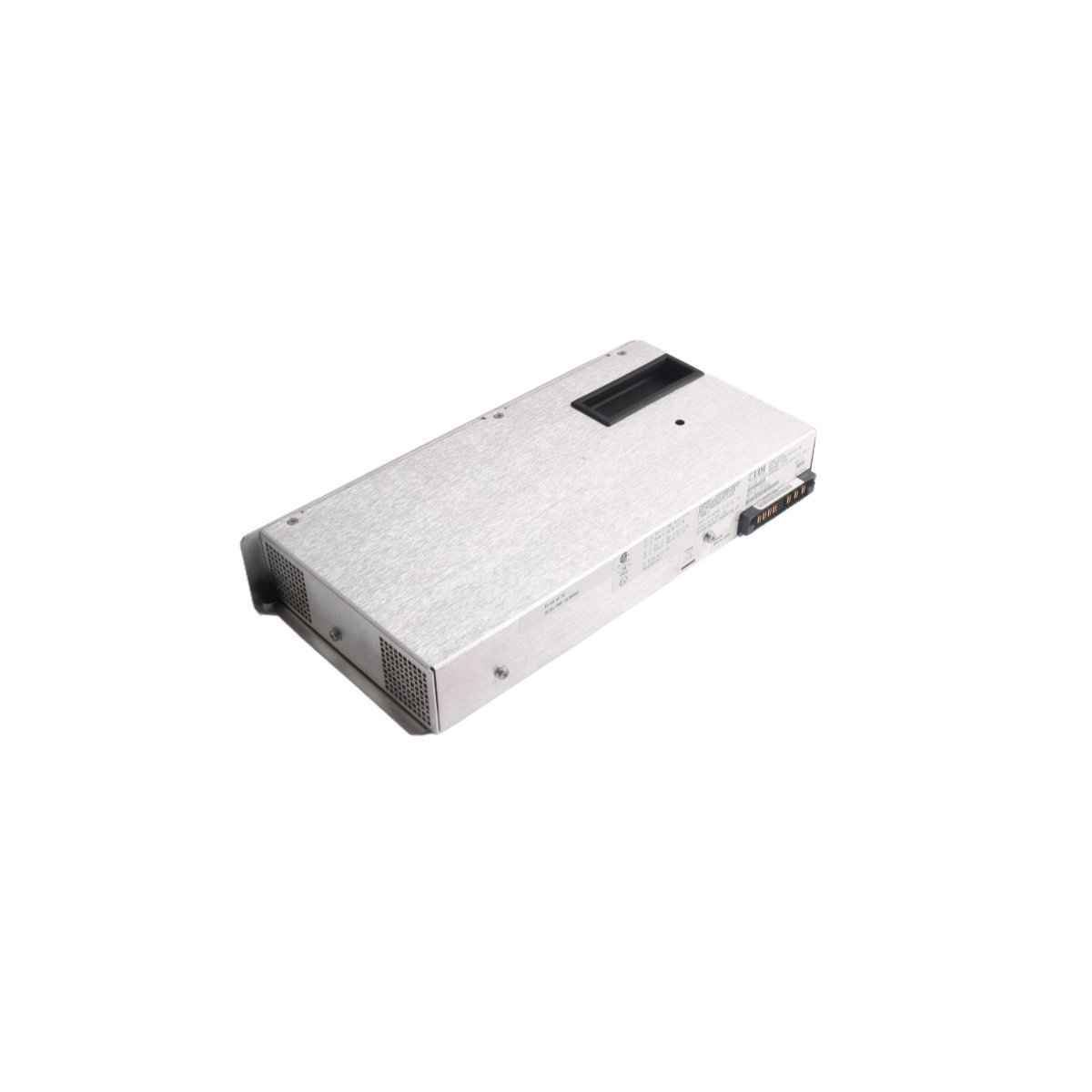

The HONEYWELL CV-STAD01 is a hardware-bound system authorization module dedicated to activating the CV-STAD01 PlantCruise Direct Station operator runtime environment. Operating as a physical licensing and processing token within Experion LX and PlantCruise DCS architectures, this component unlocks advanced Human-Machine Interface (HMI) execution capabilities. It permits a host operating station to deploy one dedicated Direct Station environment alongside two independent concurrent Flex Station instances, forming the backbone of multi-window supervisory visualization and redundant process control configurations.
| Parameter | Specification |
|---|---|
| Model Number | CV-STAD01 |
| Brand | HONEYWELL |
| Origin | USA |
| Weight | 0.38 kg (Net) / 0.4 kg (Shipping package baseline) |
| Dimensions | 7 x 14 x 14.5 cm |
| Operating Temperature | 0 to 55°C |
| Module Type | PlantCruise Direct Station Activation Token |
| Licensing Allocation | 1 Direct Station + 2 Flex Station instances |
| Object Mapping Capacity | Up to 5,000 dynamic objects per active graphics display |
| Alarm Stack Handling | > 10,000 simultaneous active alarms |
| Runtime HMI Latency | Configurable data refresh up to 1 second |
| Engineering Standards | Fully compliant with ISA-101 and NAMUR NE 148 |
| Host Compatibility | Honeywell PlantCruise PAC / Experion LX Controller Nodes |
| HS Code | 8537101190 |
The HONEYWELL CV-STAD01 processes and coordinates field data parsing pipelines over high-integrity network layers via 4-20 mA HART loop protocol translation maps and field-level automation networks. Upon insertion into the DCS backbone or control station interface, the hardware key permits the operator runtime to handle high-density industrial control graphics streams.
By enforcing strict compliance with ISA-101 HMI lifecycle design and NAMUR NE 148 situational awareness guidelines, the module manages dynamic object rendering with optimized grayscale-dominant layouts. This architectural boundary isolates system graphics engines from memory overruns, ensuring that the processing of over 10,000 active alarms remains completely deterministic with a guaranteed 1-second process graphic refresh latency.
Q: What is the physical distinction between the “Direct Station” and “Flex Station” instances enabled by this module?
A: A Direct Station instance relies on direct, permanent peer-to-peer connection blocks directly mapped into local controller nodes to ensure unbroken process visibility if higher-level server communication fails. Flex Stations function as floating client instances that pull their graphic context and alarm arrays on-demand through centralized supervisory data servers.
Q: Will extracting the CV-STAD01 module from an active operating console instantly drop the operator graphic environment?
A: No. The underlying operating system graphics wrapper will enter a buffered licensing validation grace period. A persistent “Hardware License Missing” system alarm will propagate across the active notification bar. If the physical carrier is not reinserted into the console node before the validation window expires, configuration access and supervisory control actions will lock out.
Q: Can this component handle high-density multi-display video wall arrays?
A: Yes. The CV-STAD01 hardware core is structurally optimized to support advanced multi-window operators spanning dual or quad monitor industrial consoles. Its internal registry tracks independent window layers simultaneously up to the 5,000 dynamic object-per-screen ceiling.
