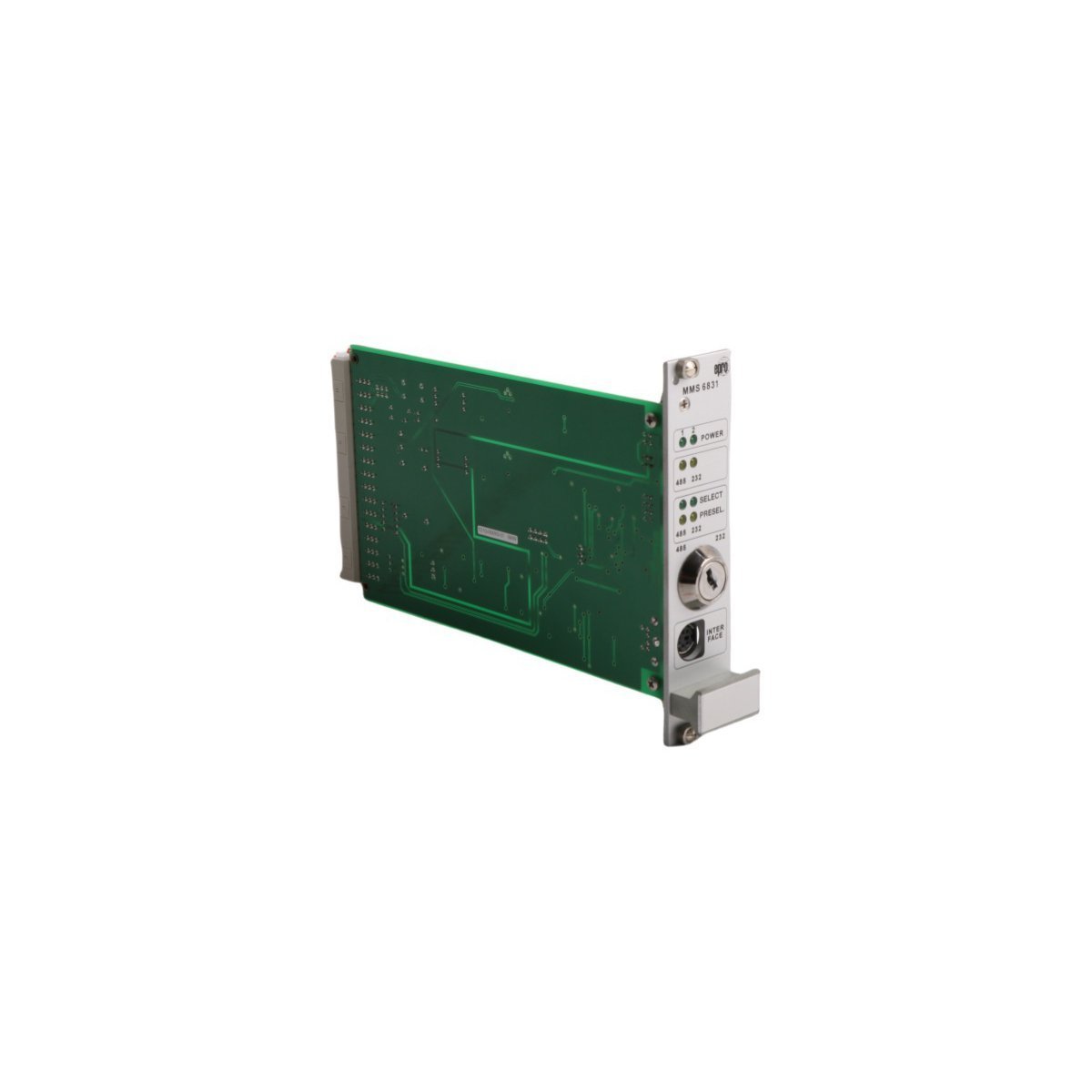

Emerson MMS6831 EPRO Interface Card

Technical Overview

The Emerson MMS6831 acts as a critical communication gateway within the epro MMS 6000 machine monitoring system. This interface card facilitates the exchange of data between the 19” system frames (such as the IMR 6000/10, /20, or /30) and external control or supervisory systems. Specifically, the MMS6831 converts internal system data into standard serial protocols, allowing for a seamless transition from specialized machine monitoring to general-purpose industrial networks.

Networking and Communication Capabilities

This interface card manages complex signal conversion tasks, primarily functioning as an RS485 to RS232 converter for system-wide communication. Because the MMS6831 occupies a dedicated interface slot in the MMS 6000 rack, it centralizes the parameterization and data output for all installed monitor modules. Furthermore, it supports the integration of vibration, speed, and displacement data into larger Distributed Control Systems (DCS), such as Emerson DeltaV or Ovation.

To ensure stable data transmission, the module utilizes high-performance opto-isolation to protect the internal bus from external electrical noise. Consequently, it maintains high-speed data integrity even in harsh electromagnetic environments typical of power plants and refineries. Maintenance teams typically use this card to connect a local PC for system configuration via specialized software, ensuring that all machine protection limits are precisely defined and monitored.

Key Technical Characteristics

• Manufacturer: Emerson (epro)
• Model Number: MMS6831
• Product Type: RS485 to RS232 Interface Card
• System Family: MMS 6000 Machine Monitoring
• Chassis Compatibility: IMR 6000/10, IMR 6000/20, IMR 6000/30
• Communication Protocols: RS485, RS232
• Dimensions: 6.0 x 18.8 x 12.8 cm
• Weight: 0.28 kg
• Country of Origin: Germany / USA
• Mounting: Dedicated interface slot (1 per system frame)

Primary Applications

• Providing a central communication link for turbine vibration monitoring systems.
• Facilitating RS485 bus integration for large-scale industrial compressor protection.
• Enabling remote parameterization of MMS 6000 series monitors from a central control room.
• Interfacing legacy epro vibration hardware with modern RS232-based diagnostic tools.
• Managing system-wide status relaying in multi-frame machine protection architectures.
