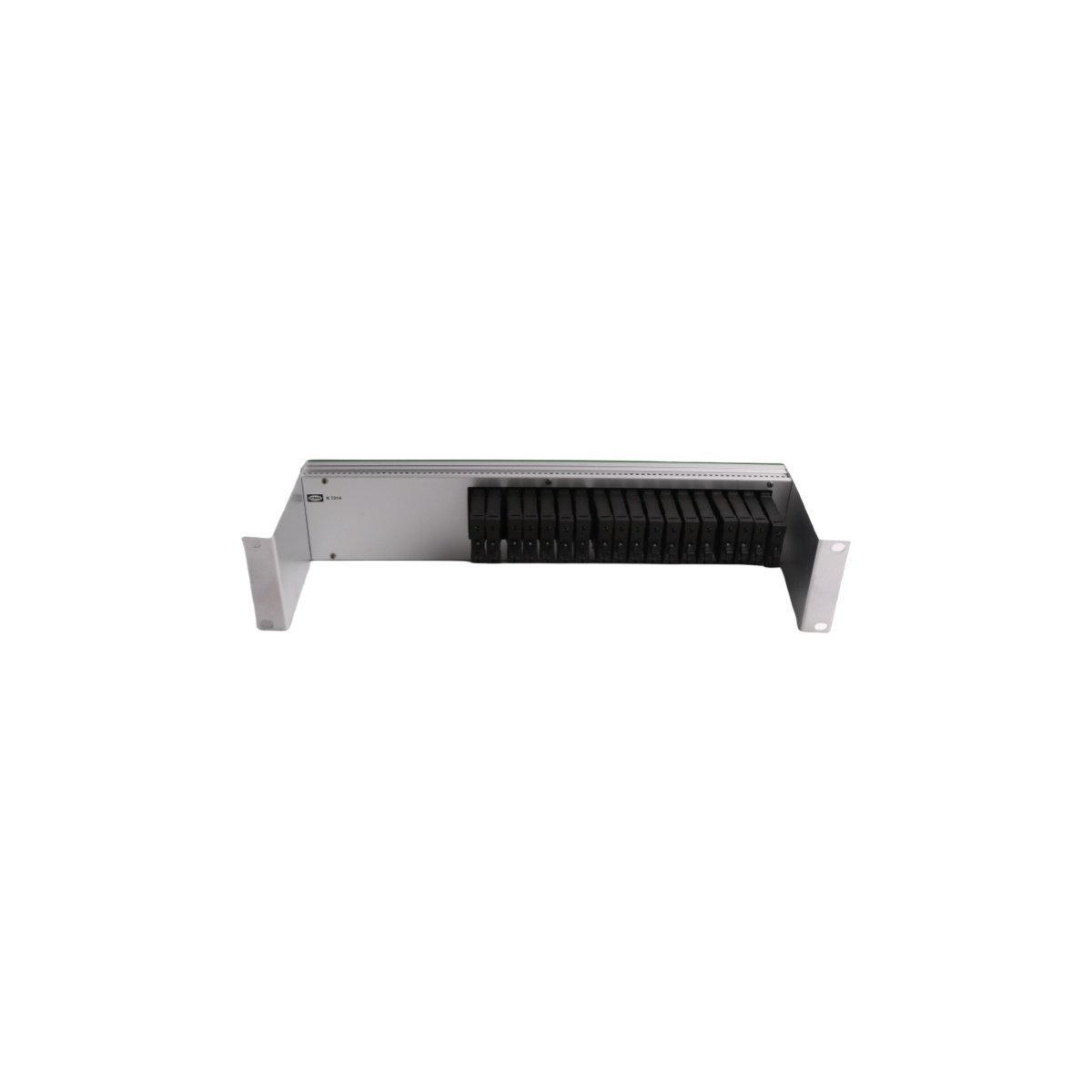

HIMA K7214 Control Panel Subrack Module

Technical Overview

The HIMA K7214 operates as a fundamental control panel interface and subrack component within the HIMA Planar F safety system. This module functions as the physical and electrical mounting platform for the F-series safety cards, facilitating the secure distribution of power and signals across the backplane. Because the Planar F system utilizes hard-wired logic for maximum safety integrity, the K7214 provides the high-density connection points necessary to maintain a reliable safety loop. By organizing the internal wiring of a safety cabinet, this panel ensures that critical signals remain isolated and protected from cross-interference.

Operational Logic and Structural Integration

The K7214 manages the interconnection between field wiring and the logic modules through a robust, industrial-grade backplane architecture. To ensure maximum durability, HIMA constructs the panel using high-quality materials that withstand the thermal stresses common in continuous-process environments. Furthermore, the unit supports the integration of various monitoring and control components, allowing operators to oversee the status of the safety system directly from the rack front. Moreover, since the K7214 follows a modular 19-inch rack standard, it integrates seamlessly into existing industrial enclosures and control suites.

To further improve system maintenance, the K7214 utilizes a clear layout that simplifies the identification of individual circuit paths. In addition to providing mechanical support, the panel incorporates dedicated grounding points and shielding features to mitigate electromagnetic interference (EMI). Consequently, these features prevent signal degradation in safety-critical loops, such as those used for emergency shutdowns or fire and gas detection. As a result, the K7214 serves as a vital structural element that ensures the long-term operational stability and safety compliance of the entire automation system.

Key Technical Characteristics

• Brand: HIMA
• Model Number: K7214
• Product Series: Planar F
• Product Type: Control Panel / Subrack Module
• System Compatibility: HIMA H41q / H51q and Planar F architectures
• Mounting Standard: 19-inch rack-mount configuration
• Connection Type: High-density backplane interface
• Material: Industrial-grade metal and reinforced polymer
• Function: Signal distribution and hardware housing
• Safety Standard: Designed for use in SIL 3 rated environments

Primary Applications

• Housing safety-critical logic modules in oil and gas refinery control rooms.
• Providing a centralized connection point for burner management system (BMS) wiring.
• Managing signal distribution for emergency shutdown (ESD) systems in chemical plants.
• Organizing safety interlocks for large-scale power generation equipment.
• Serving as the primary hardware interface for fire and gas (F&G) protection racks.
