  4. Honeywell 51403645-400 Single Board History Module
Sale!
SKU: 51403645-400

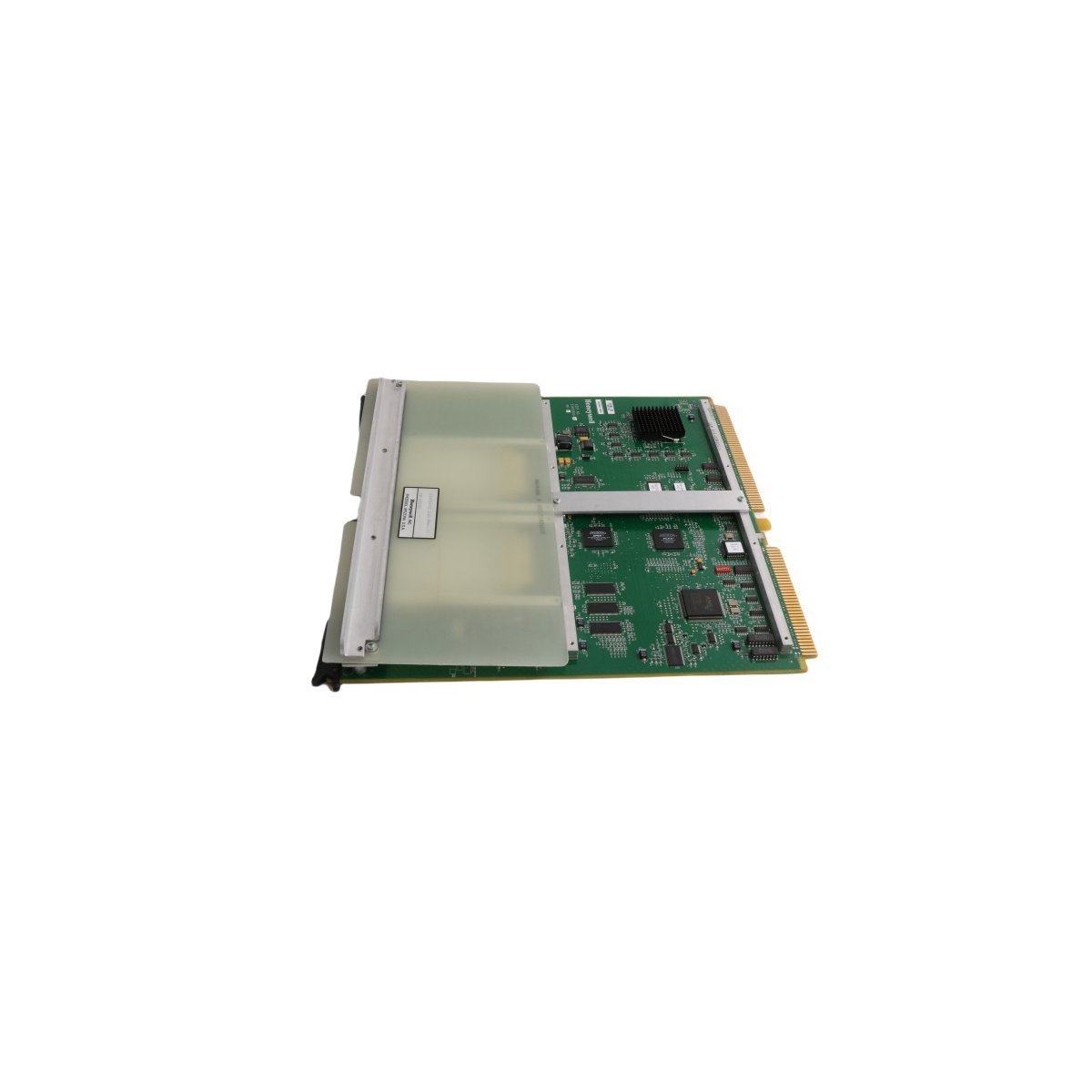

Honeywell 51403645-400 Single Board History Module

Request a Quote

Configured for high-speed process data recording within the Experion PKS Series 8 platform, the Honeywell 51403645-400 (51403645-400 Single Board History Module) provides direct physical and electrical storage execution for distributed control network telemetry.

Hardware Specifications

ParameterSpecification
Model51403645-400
BrandHoneywell
OriginUSA
Weight0.18 kg
Dimensions2.1 x 25.4 x 12.6 cm
Operating TempStandard industrial cabinet range
Power ConsumptionSeries 8 backplane dependent
Data InterfaceExperion PKS I/O bus

DCS Process Control & Connectivity

The Honeywell 51403645-400 maintains precise loop integrity primarily through channel-to-channel isolation; consequently, this prevents common-mode interference from corrupting historical data streams. Within the Series 8 control cabinet, the module utilizes 4-20 mA HART loop protocol compatibility to interface with field instrumentation. In this capacity, it ensures that every stored data point is mapped precisely to its corresponding process variable. Furthermore, cold junction compensation (CJC) is implemented internally to guarantee accuracy across varying thermal environments. Meanwhile, redundant hardware pathways provide continuous availability, thereby ensuring uninterrupted data logging during primary controller failover events. Ultimately, these integrated features maintain data coherence across the system architecture.

Frequently Asked Questions

Q: Does the 51403645-400 support hot-swapping during active operation?

A: Yes, the Series 8 architecture allows for the removal and replacement of this module while the system is powered, provided that local site safety procedures are followed and the redundant secondary module (if installed) is active.

Q: Is this module compatible with older Experion PKS system revisions?

A: Compatibility is contingent upon the installed firmware version of the C300 controller and the I/O series revision; verify flash compatibility and system configuration files before deployment.

Field Installation Guidelines

  • Backplane Seating: Ensure the module is aligned correctly with the Series 8 I/O backplane guide rails. Apply even pressure until the locking mechanism engages to guarantee electrical contact.
  • Grounding: Always ensure the DIN-rail or chassis mounting plate is connected to a dedicated earth ground bus to maintain signal common and protect internal components from surge voltages.
  • Cable Management: Route communication and I/O cabling through separate wire ducts from high-voltage power lines to prevent induced noise and potential data corruption in the history logging process.
  • Verification: Post-installation, use the Experion configuration tool to verify that the module is recognized by the network and that the historical database link is established.
Tags: ,
