  4. HONEYWELL CV-AESHED PlantCruise Point Control Scheduler
Sale!
  • HONEYWELL CV-AESHED PlantCruise Point Control Scheduler
  • HONEYWELL CV-AESHED PlantCruise Point Control Scheduler
SKU: CV-AESHED

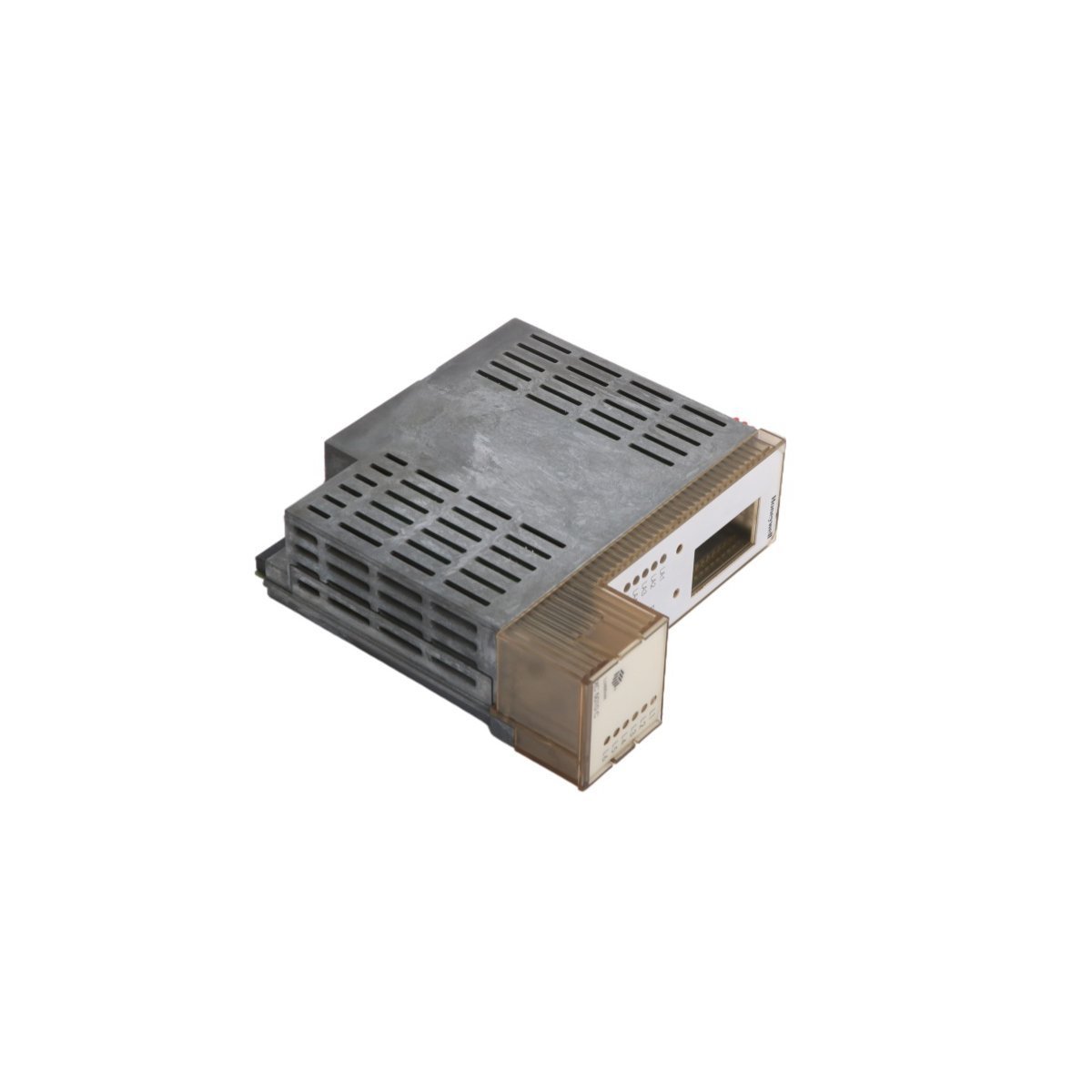

HONEYWELL CV-AESHED PlantCruise Point Control Scheduler

Purchase a genuine HONEYWELL CV-AESHED PlantCruise Point Control Scheduler. Offers ultra-low CPU overhead ($<5\%$) while managing up to 1,000 process schedules. Available in Brand New condition with verified stock and fast worldwide delivery.

Request a Quote

The HONEYWELL CV-AESHED is a high-performance software and license-driven Point Control Scheduler module designed for Honeywell’s PlantCruise Distributed Control System (DCS) platform (v4.0+). It functions as a core automation tool to develop, execute, and monitor complex process sequencing and time-based point control schedules across industrial facilities.

Hardware & System Resource Requirements

ParameterSpecification
Model NumberCV-AESHED
ManufacturerHONEYWELL
Range of ProductPlantCruise DCS
Module TypePoint Control Scheduler Application
OriginUSA
Physical Module Weight0.38 kg (Core Unit Assembly)
System Base RequirementsPlantCruise CV-DBASE1 Base System
Minimum Host CPU4-Core $2.4\text{ GHz}$ Processor
Minimum Host RAM8 GB
Base Storage Footprint100 MB
Data Logging Consumption1 MB per day
System Performance< 5% CPU utilization under peak load
Maximum Schedule DensityUp to 1,000 simultaneous active schedules

Process Control & System Integration

The CV-AESHED license allows process engineers to establish highly optimized automated events based on absolute time, calendar dependencies, or shifting production cycles. Operating natively within the PlantCruise Automation Environment, it handles discrete execution states for up to 1,000 concurrent process schedules without stressing host server processor bandwidth.

The module logs schedule actions and operator overrides to internal data blocks at a nominal rate of 1 MB per day. This provides historical tracking for auditing and loop optimization in chemical processing, power plants, and high-volume manufacturing sectors.

Frequently Asked Questions

Q: Is the CV-AESHED a physical hardware module or a software application?

A: It is an engineered solution containing both a localized hardware security/routing module (weighing 0.38 kg) and a software license key that activates advanced scheduling algorithms inside the PlantCruise database.

Q: Can this scheduler scale beyond the listed 1,000 simultaneous schedules?

A: The standard CV-AESHED configuration profile optimizes real-time processing threads at a maximum limit of 1,000 active execution matrices to maintain deterministic timing. Scaling beyond this threshold requires stacking multiple control licenses or utilizing server cluster hardware.

Q: What happens if the daily historical logging storage runs out?

A: If the designated system drive fills up, the scheduler continues to execute active loops based on internal memory buffers, but it will drop old telemetry logs. It is highly recommended to configure a routine network back-up to clear out archived log files.

Field Installation & Activation Guidelines

  1. Confirm that the underlying host server matches or exceeds the required 4-core, 8 GB RAM platform threshold prior to installation.
  2. Dock the physical security interface/hardware dongle into the specified backplane port or Ethernet router network tier.
  3. Use the PlantCruise system console to install the CV-AESHED software application bundle into your existing database environment.
  4. Set up an independent disk partition or network-attached folder to isolate the 1 MB/day data logging streams from critical system operating paths.
Tags: , , , , ,
