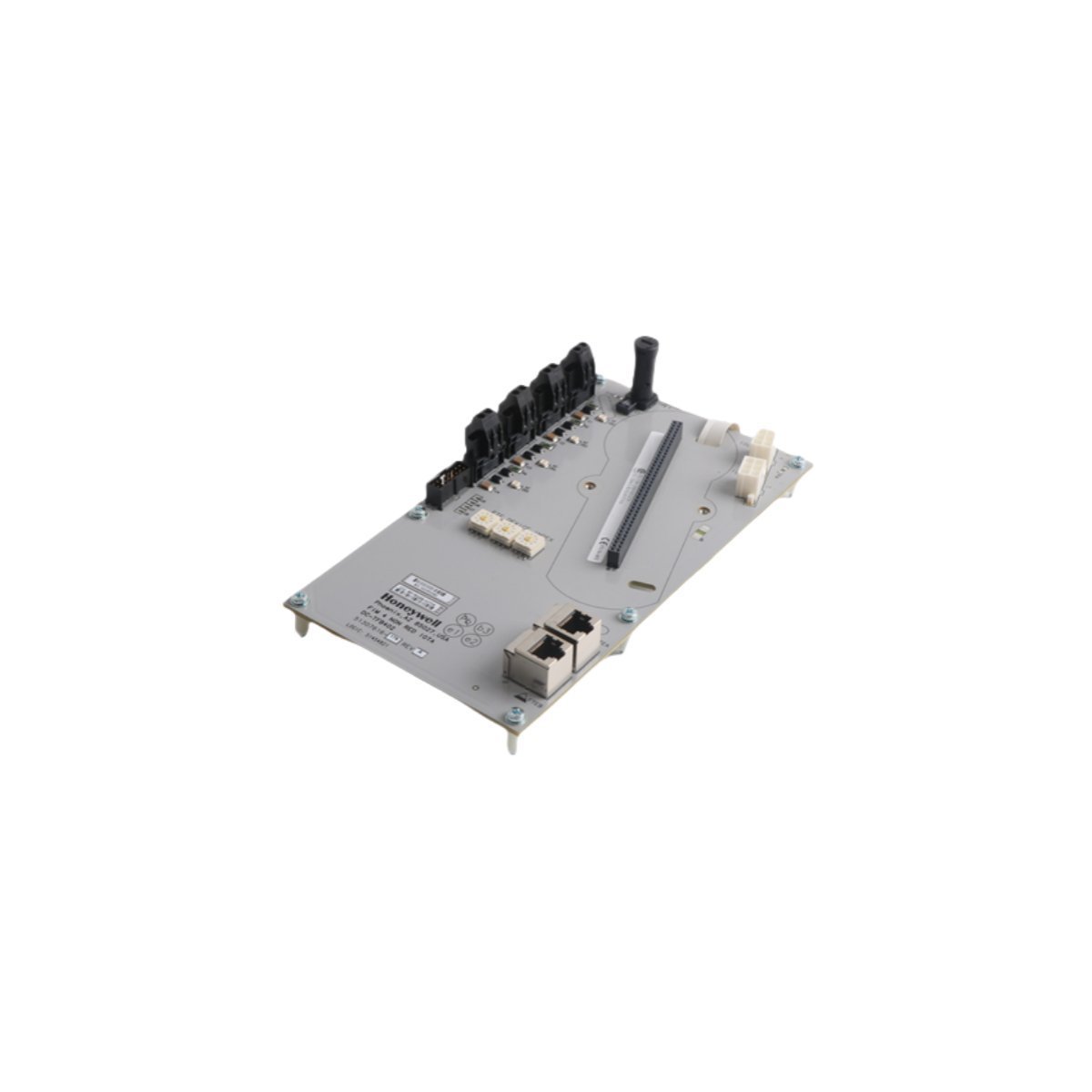

Honeywell DC-TFB402 51307616-176 FIM4 Non-Redundant IOTA Coated

The Honeywell DC-TFB402 (51307616-176) is a conformally coated, non-redundant I/O Termination Assembly (IOTA) for FIM4 modules. Designed for the Experion PKS Series C architecture, it provides a robust, corrosion-resistant interface for Foundation Fieldbus field wiring and controller communication.

Technical Overview

The Honeywell DC-TFB402, associated with part number 51307616-176, functions as a Field Interface Module (FIM) I/O Termination Assembly (IOTA) within the Experion PKS system. Specifically designed for the FIM4 series, this non-redundant (NR) assembly serves as the physical mounting base and wiring interface for the FIM modules. Because this version features a conformal coating, it provides superior resistance to moisture, dust, and corrosive chemical vapors. Furthermore, this protective layer makes it an ideal choice for harsh industrial environments. By consolidating field wiring connections and providing the communication backplane for the module, the DC-TFB402 effectively ensures stable data transmission between the fieldbus and the C300 controller.

Structural Logic and Connectivity

The DC-TFB402 manages the physical termination of Foundation Fieldbus (FF) segments, thereby providing a structured environment for cable management and signal distribution. To ensure maximum reliability, the IOTA features heavy-duty screw terminals that accommodate field wiring while simultaneously maintaining a secure electrical connection. Furthermore, the board architecture facilitates the efficient distribution of power to the attached FIM4 module. Moreover, since this is a non-redundant assembly, it offers a cost-effective solution for segments where single-module operation meets the availability requirements of the process.

To further safeguard the integrity of the fieldbus signal, the DC-TFB402 utilizes integrated components to minimize noise interference on the digital communication lines. In addition to these wiring functions, the assembly includes dedicated connectors for the I/O Link, which bridges the communication to the supervisory controller. Consequently, the conformal coating applied to the PCB surface acts as a protective barrier against environmental contaminants. As a result of this coating, the module prevents potential short circuits or signal degradation that could otherwise occur. Ultimately, the DC-TFB402 serves as a durable and reliable foundation for managing complex Fieldbus segments in refineries, chemical plants, and upstream oil and gas facilities.
